Installing Moulding For Rear Lid

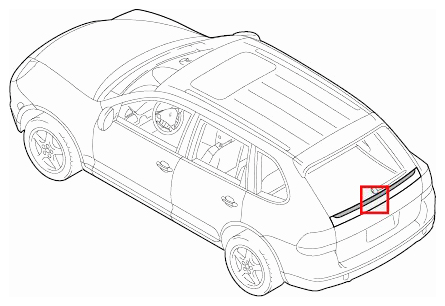

Fig 1: Identifying Moulding For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

An example of a suitable spacer to use would be an electric line with an external diameter of a = 2 mm  .

Five lengths of lead each approx. 40 mm long must be made up for this purpose. The lengths of lead are then bent together in a U shape.

1. Install lining for rear lid. → Installing Trim Panel For Rear Lid

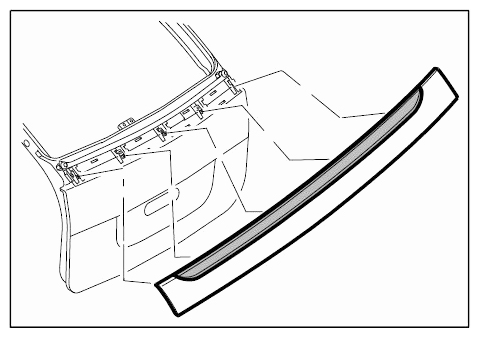

   Fig 2: Identifying Lining For Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Stick on spacers.
   1. 2.1. Stick five suitable spacers -4-  with a thickness of -a = 2 mm-  onto the rear lid lining -2-  with adhesive tape -5-  .

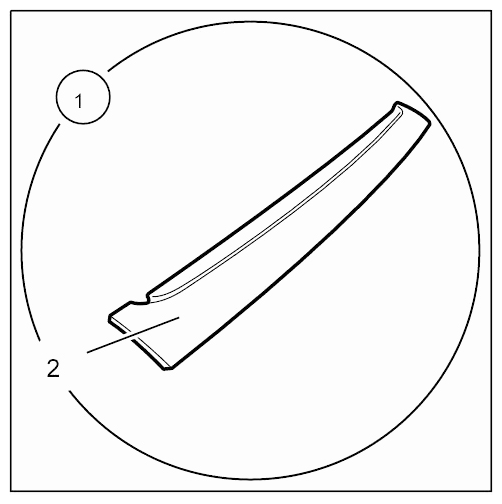

      Fig 3: Identifying Rear Lid Lining

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

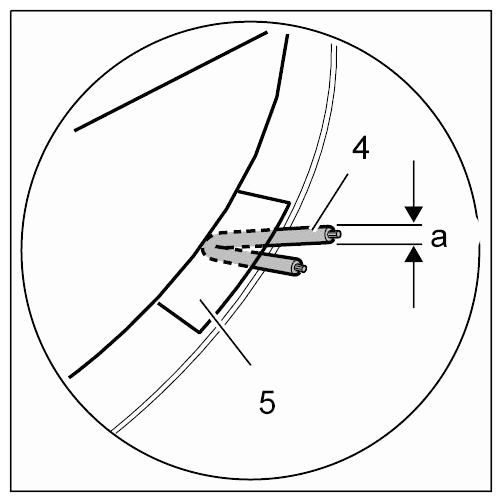

      Fig 4: Identifying Spacers And Adhesive Tape

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Affix adhesive strips to lining for rear lid
   1. 3.1. Cut two adhesive strips approx. 5 mm wide -3-  and stick them on the lining for the rear lid -2-  .
   2. 3.2. Remove protective film from adhesive strips -3-  .

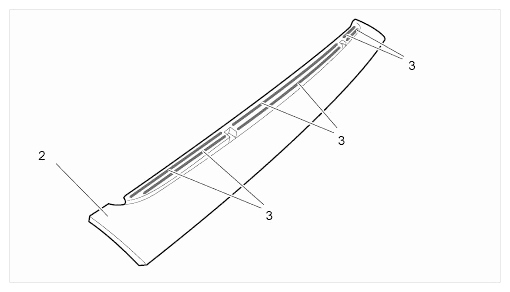

      Fig 5: Identifying Adhesive Strips For Moulding

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install rear lid moulding.
   1. 4.1. Bend tabs -6-  over by 90° (-arrow A-  ).

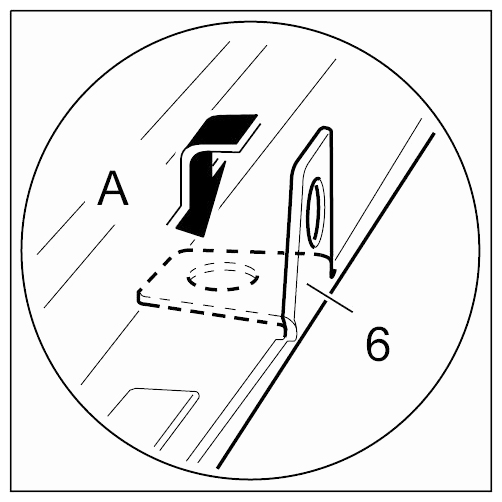

      Fig 6: Bending Tabs

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Insert moulding -1-  into lining for rear lid -2-  , position at the affixed spacers -4-  and press onto the adhesive strips -3-  (-arrow B-  )

      → Test and adjustment value: 4.5 mm → Test and adjustment value: 2 mm

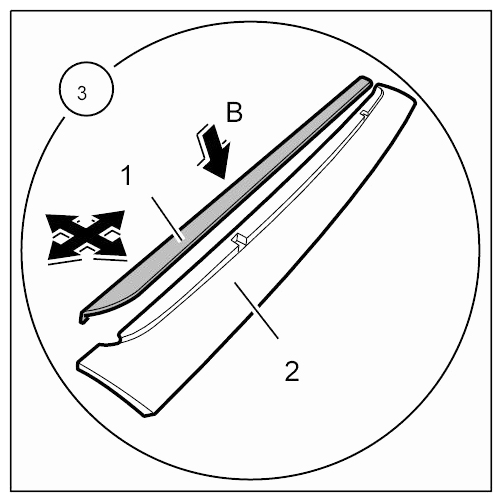

      Fig 7: Installing Rear Lid Moulding

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 8: Identifying Spacers And Adhesive Tape

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove spacers.
   1. 5.1. Remove the affixed spacers -4-  and the adhesive residue -5-  .
      Fig 9: Identifying Spacers And Adhesive Tape

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
