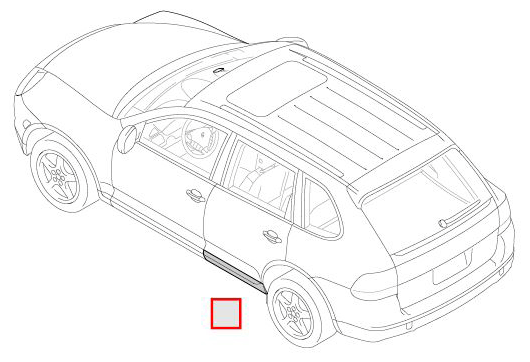

Removing And Installing Rear Door Cover
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
The specification under Qty. refers to one cover per door.

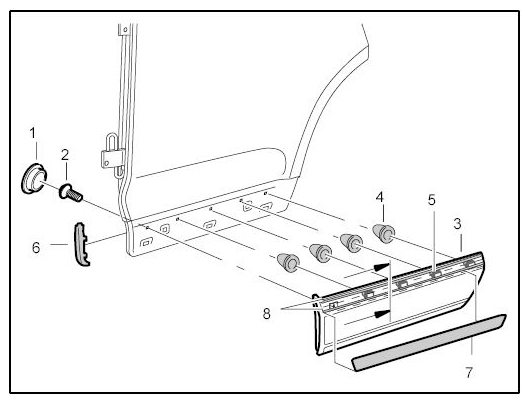

| No. | Designation | Qty. | Removal | Fitting |
|---|---|---|---|---|
| -1- | Plug | 1 | Press the plug out using a narrow screwdriver. | Push in the plug. |
| -2- | Fastening screw | 1 | Unscrew fastening screw. | Screw in fastening screw. |
| -3- | Door cover | 1 | Insert a plastic wedge underneath the door cover from above and lever off the cover. Unhook cover from the door flange in a downward direction. | Hook door cover onto the door flange -B-
. Swivel door cover upwards -A-
and clip into place. Make sure that the fixing clips click into place during installation. |
| -4- | Grommet | 4 | Grommets must be replaced before installing the door trim panel -3-
. Unclip. |
Press in. |
| -5- | Fixing clip | 4 | Slide fixing clip in direction of arrow out of the door cover -3- . | Check and replace if necessary. Push fixing clip in the opposite direction to the arrow into the door cover -3- . |
| -6- | Cover | 1 | Pull cover sideways off the door flange. | Attach cover sideways onto the door flange. |
| -7- | Trim strip | 1 | → 664119 REMOVING AND INSTALLING TRIM STRIP FOR REAR DOOR | |
| -8- | Strips of adhesive tape | 2 | ||
