Removing Rear Door Moulding

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The trim strip is damaged beyond repair during removal.

Heat up moulding with a hot-air gun to approx. 60°C.
Open front door.
Using an assembly wedge, traverse between moulding and cover and lift off the moulding.

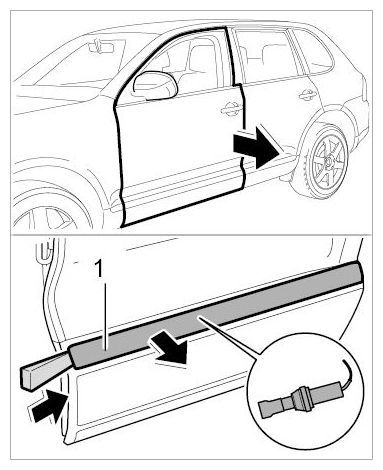

Fig 1: Opening Front Door
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove moulding completely, reheating if necessary.
To protect from damage, mask painted surfaces along the upper and lower edges with adhesive strip.

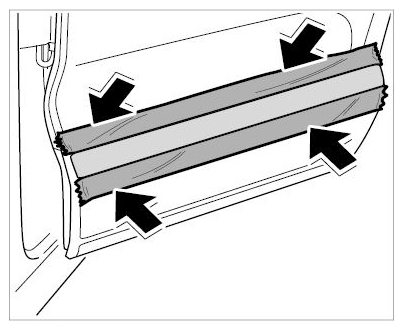

Fig 2: Removing Mask Painted Surfaces Upper And Lower Edges With Adhesive Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Warm up adhesive tape residue on the cover and scrape it off with an assembly wedge.

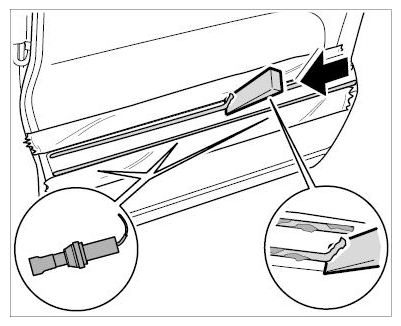

Fig 3: Locating Adhesive Tape Residue On Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
