Removing Protective Strips For Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

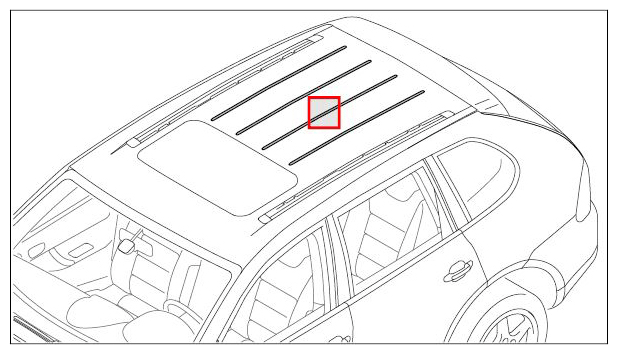

Fig 1: Identifying Installation Position Of Protective Strips
G09412134Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove protective strip.
    1. 1.1. Heat up protective strip -1-  uniformly using a hot-air gun.
    2. 1.2. Starting at the back -arrow A-  , use an assembly wedge -2-  to prise the protective strip evenly up off the roof -arrow B-  .
    3. 1.3. Loosen remaining bonded areas of the protective strip by pulling it up and off.

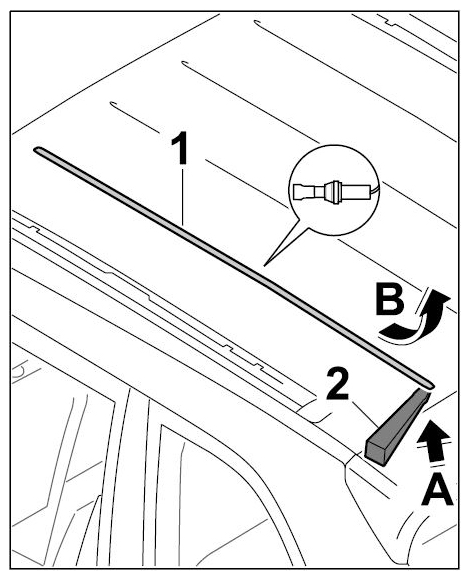

      Fig 2: Removing Protective Strip
      G09412135Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove traces of adhesive.
    1. 2.1. Remove traces of adhesive in the installation area -arrows-  with an erasing disc.

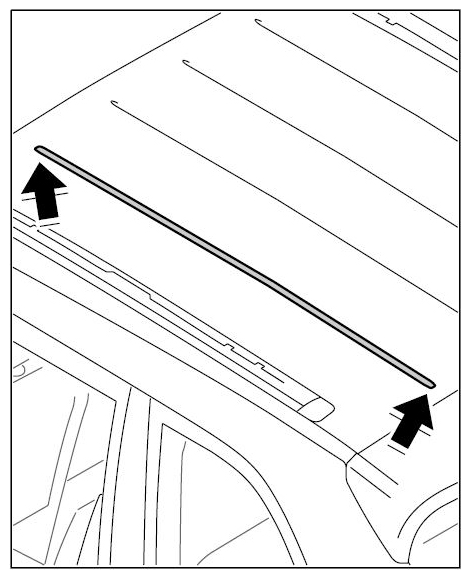

      Fig 3: Removing Traces Of Adhesive
      G09412136Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove the other three protective strips in the same way and remove all traces of adhesive.
