Installing Protective Strips For Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

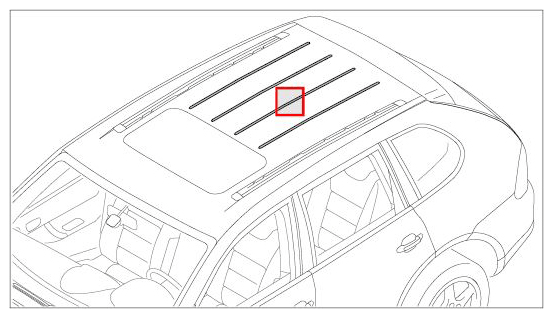

Fig 1: Identifying Installation Position Of Protective Strips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not touch cleaned bonding surfaces on the roof!

Wipe off installation area -A- with a cloth soaked in isopropanol.

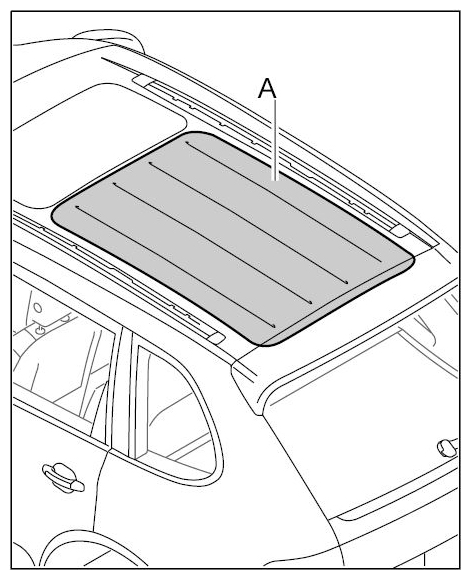

Fig 2: Cleaning Area For Protective Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The protective strips are marked with an arrow underneath. This arrow must point in direction of travel during fitting.
Position protective strips on the vehicle.

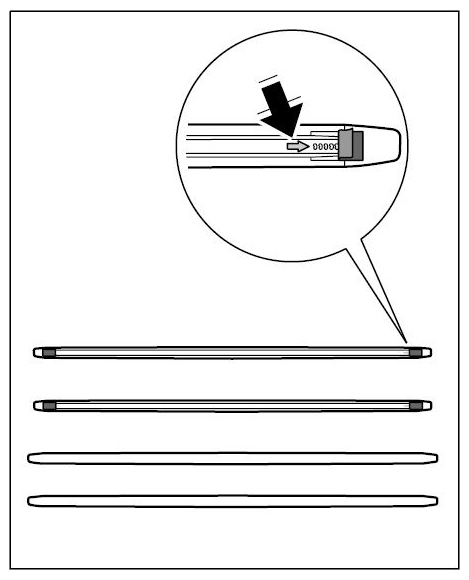

Fig 3: Markings Underneath
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The protective strips must be aligned with the beads running along the roof and the rear edge of the roof.
Align and fit protective strip on the vehicle.
1. 3.1. Place protective strip -1- on the roof of the vehicle and align it with the centre bead -arrows A- .
2. 3.2. Work out installation position of protective strip with respect to the rear edge of the roof. Maintain the dimension -X1- → Required value: 26 mm.
3. 3.3. Mark installation position with a strip of adhesive tape -2- .

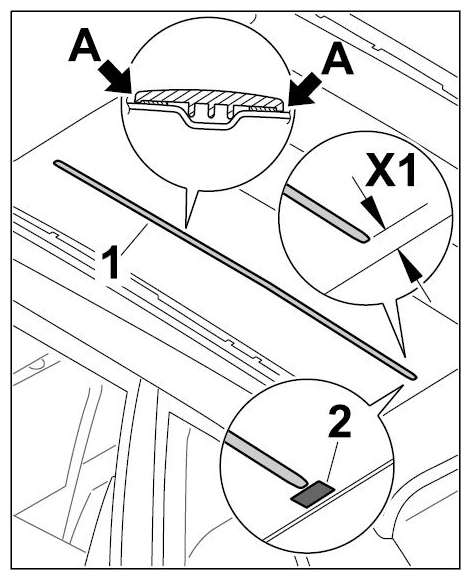

  Fig 4: Identifying Protective Strip Measurements Dimension
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - The object and room temperature must be at least 18° C for bonding the components.
  - The components must be bonded for at least 24 hours before washing the vehicle.
Stick protective strip on the vehicle.
1. 4.1. Lift up protective strip -1- and pull off protective film -2- using the pulling aid -3- (-arrows A- ).
2. 4.2. Place protective strip -1- at the marked installation position -4- at the rear of the roof -arrow B- .

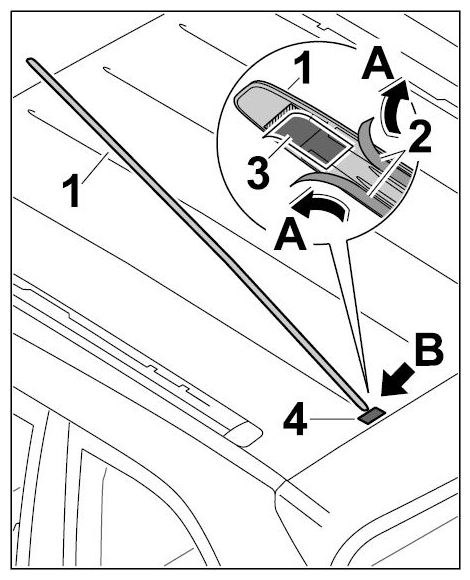

  Fig 5: Positioning Protective Strip On Roof
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Starting at the back, centre the protective strip -1- in the bead and press down lightly in the bonding area.
  Information

  Make sure that the protective strip is fitted correctly and evenly on the roof of the vehicle. Rework it again using a rubber roller if necessary.
4. 4.4. Press protective strip -1- on firmly and evenly using a rubber roller -2- .
5. 4.5. Pull off adhesive tape -3- (-arrow A- ).

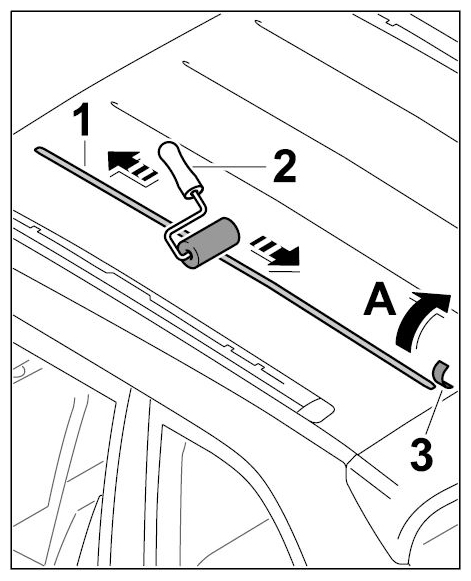

  Fig 6: Pressing On Protective Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Stick on the other three protective strips in the same way.
