Removing Side-Section Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

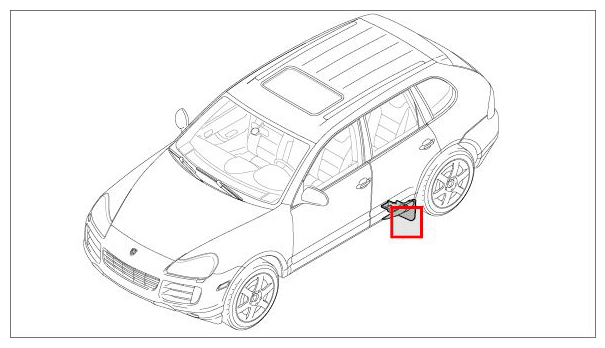

Fig 1: Identifying Installation Position Of Side-Section Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

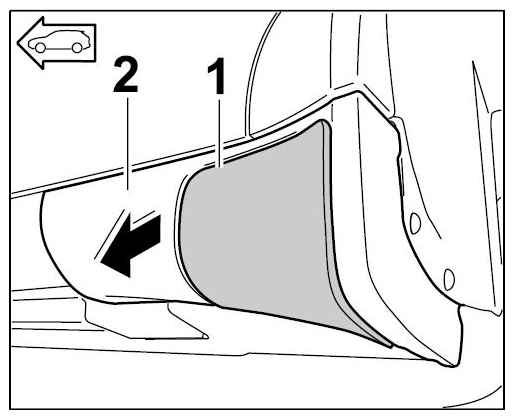

Pull cover -1- out of the side-section trim -2- (-arrow- ).

Fig 2: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

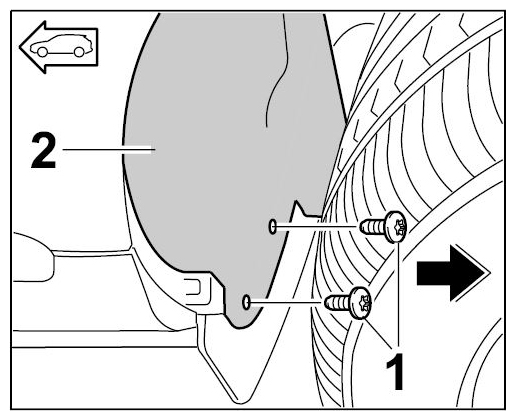

Unscrew fastening screws -1- on rear wheel housing liner -2- in the lower area -arrow- .

Fig 3: Loosening Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

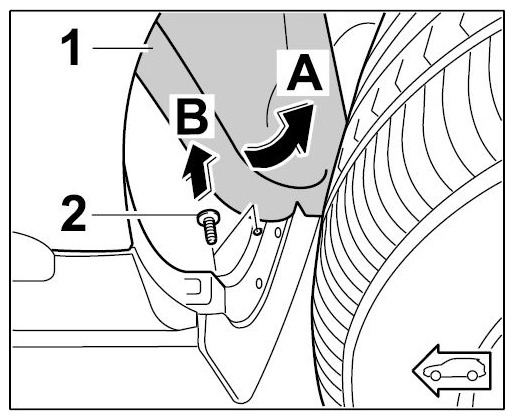

Lift off rear wheel housing liner -1- in the lower area -arrow A- and unscrew fastening screw -2- (-arrow B- ).

Fig 4: Loosening Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

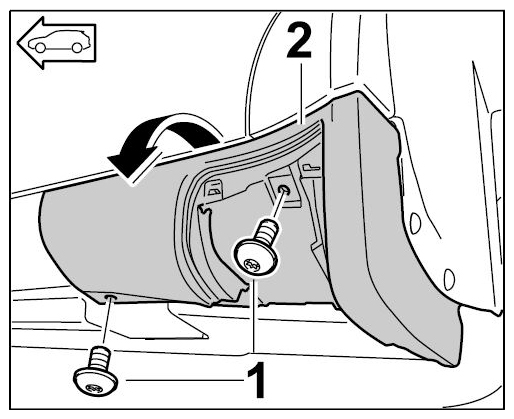

Unscrew fastening screws -1- and remove side-section trim -2- (-arrow- ).

Fig 5: Removing Side-Section Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
