Installing A-pillar Moulding

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

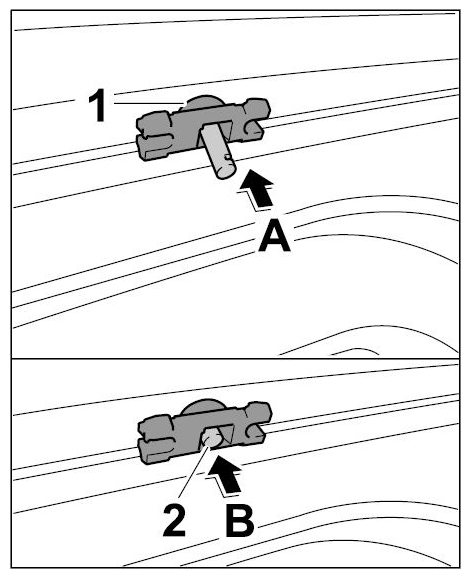

Install new retaining clips.

Fig 1: Installing Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Press retaining clip -1- into the body -arrow A- .
2. 1.2. Press in expanding pin -2- (-arrow B- ).
Slide A-pillar moulding -1- at the rear into the side window trim frame -2- (-arrow- ) until it clicks into place.

Fig 2: Installing A-Pillar Moulding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

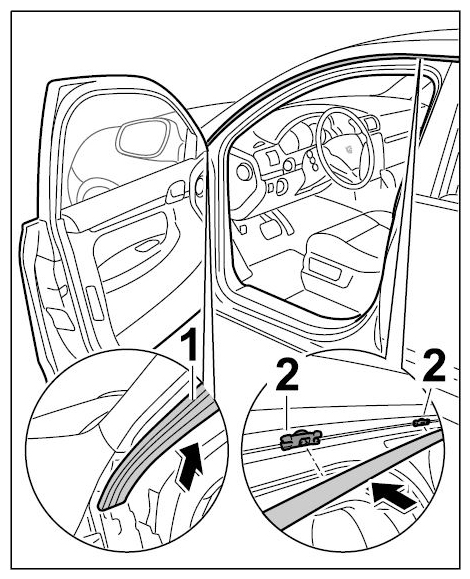

Position A-pillar moulding -1- on the body and press it into the retaining clips -2- (-arrows- ) until it clicks into place.

Fig 3: Positioning A-Pillar Moulding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
