Removing Outer Sill Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

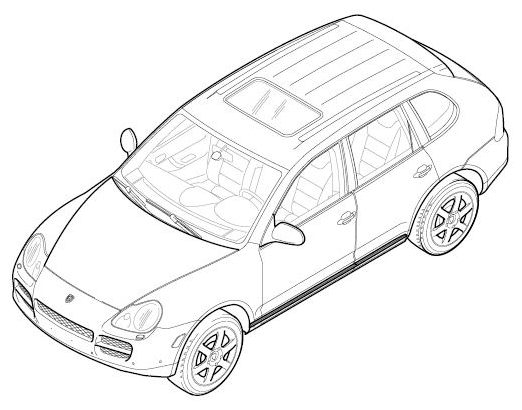

Fig 1: Identifying Outer Sill Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

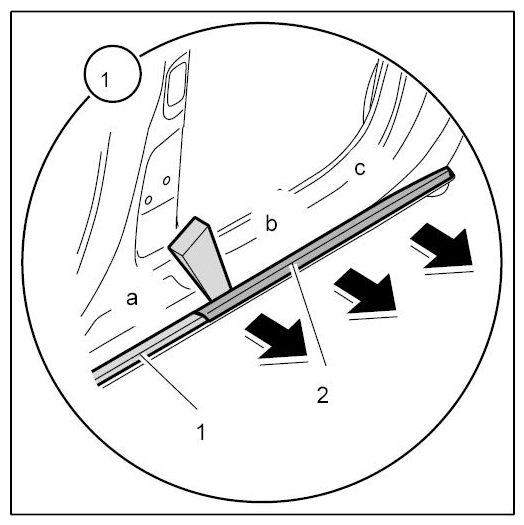

Unclipping rear sill cover
1. 1.1. Unclip rear sill cover -2- in the sequence -a to c- as shown using an assembly wedge and remove it.

  Fig 2: Removing Rear Sill Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

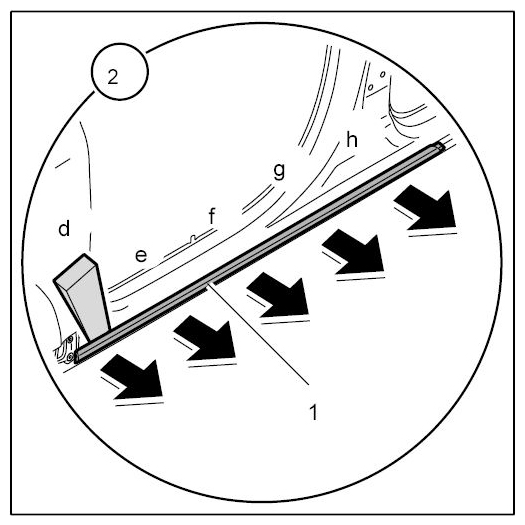

Unclipping front sill cover
1. 2.1. Unclip front sill cover -1- in the sequence -d to h- as shown using an assembly wedge and remove it.

  Fig 3: Removing Front Sill Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
