Removing Door Entry Guard

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tapping screws (4.8 x 16) at rear of door entry guard (2 x; -A-  ) in wheel arch area.

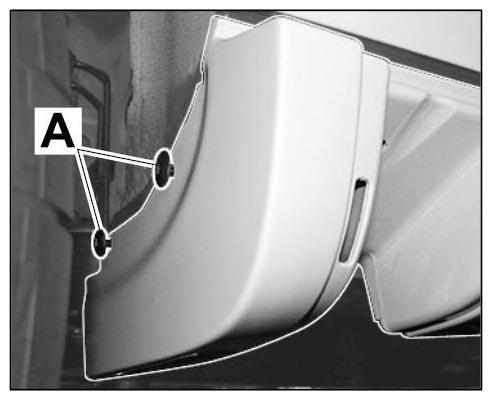

    Fig 1: Identifying Tapping Screws
    G09412094Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove screw (M6 x 14) (1x; -A-  ) in wing area.

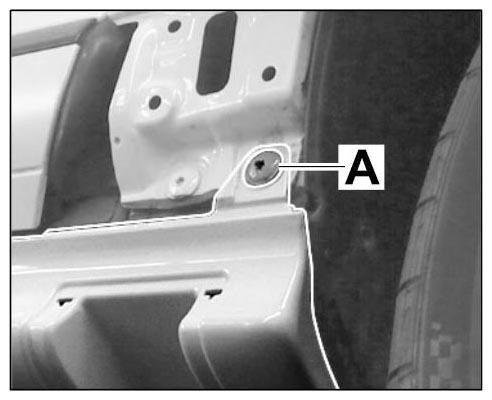

    Fig 2: Identifying Mounting Screw
    G09412095Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press in pin of expanding rivets (10 x) on underside of vehicle and pull out expanding rivet.

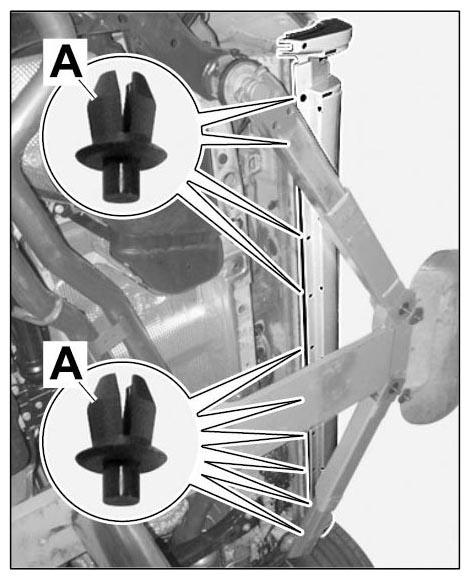

    Fig 3: Detaching Door Entry Guard Bottom
    G09412096Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Heat bonded area of vehicle sill and door entry guard using a hot air blower. Nr.155-1 Pos.2
  5. Detach adhesive bond of door entry guard using a plastic wedge.
  6. Remove door entry guard.
