Installing Door Sill Guard

→ Observe the guidelines and instructions for painting components in the Paint Manual.

→ Always place parts without tension on the painting devices provided during painting and drying processes.

1. Completely remove adhesive residue using a film eraser Nr.174 Pos.1  .
2. Clean bonding surfaces, removing all oil and dust, using a cloth soaked in isopropanol and allow to dry.
3. Affix adhesive tape → ADHESIVE TAPE onto door entry guard and cut off excess.
4. Position door entry guard (-Pfeil-  ) on vehicle sill with the help of another person.

   Loosely pre-fit door entry guard at front using a M6 x 14 screw (-A-  , wing area) and at rear with a tapping screw (4.8 x 16; -B-  , rear wheel arch area).

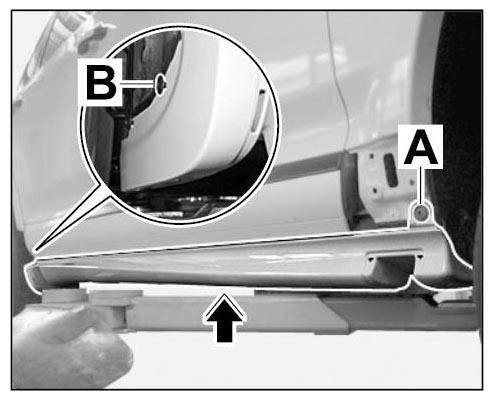

   Fig 1: Positioning Door Entry Guard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Position door entry guard on retaining strip on vehicle underside and attach to retaining strip with expanding rivets (8.0 x 3.5; 10 x).

   For easier fitting:

   Pull pin (-A-  ) from expanding rivet beforehand.

   Insert expansion rivet into door entry guard and then drive in pin.

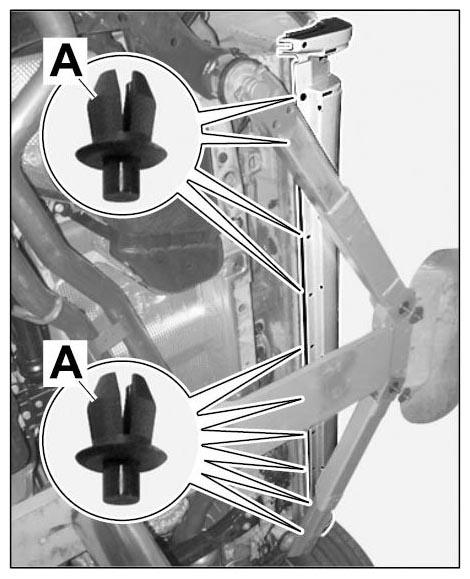

   Fig 2: Positioning Door Entry Guard On Retaining Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Heat vehicle sill and door entry guard slightly using a hot air blower Nr.155-1 Pos.2  to ensure a better bond.
   NOTE: Incorrect handling of adhesive tape

   • Risk of damage to the vehicle or paintwork
   • Risk of damage to components

   → Clean bonding surfaces to remove any dust and grease.

   → Use clean, lint-free disposable cloths for cleaning.

   → Do not touch the bonding surfaces with your fingers.

   → The object (logo, vehicle, etc.) and ambient temperature must be at least →: 15°C  .

   → Press component on with a suitable tool (rubber roller) using the prescribed amount of force.

7. Carefully pull out protective film on adhesive tape (-A-  ) between door entry guard and vehicle sill and align door entry guard so that the gap (-X-  → Adjustment value: 5 mm  ) between door entry guard and lower door edges is the same over the entire length.

   Press door entry guide evenly onto the vehicle sill using a rubber roller.

   → Force: 50 - 80 N

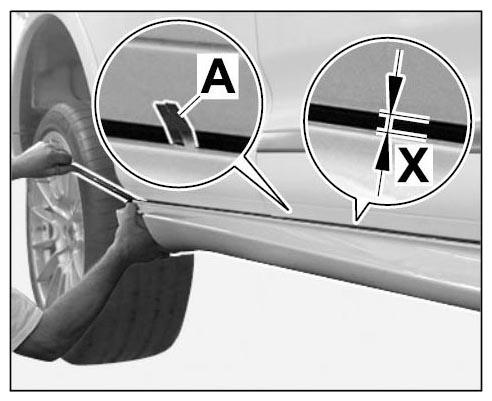

   Fig 3: Identifying Door Entry Guard Gap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Tighten screw, M6 x 14 (1 x; -A-  ) in the wing area.

   → Tightening torque: 8 Nm (6 ftlb.)

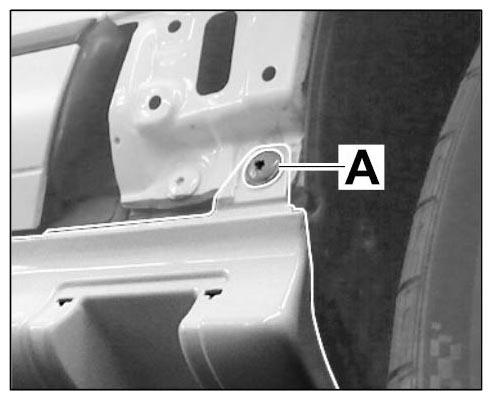

   Fig 4: Tightening Screw In Wing Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Tighten tapping screws (4.8 x 16) for door entry guard at rear (2 x -A-  ) in the wheel arch area.

   → Tightening torque: 1.5 Nm (1.0 ftlb.)+/-0.2 Nm (+/-0.15 ftlb.)

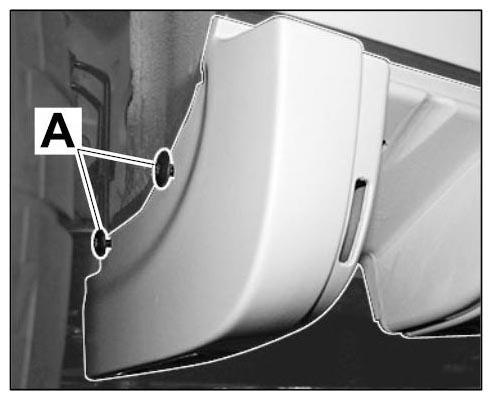

   Fig 5: Tightening Tapping Screws Of Rear Door Entry Guard
