Assembling Side Step (Skidpad)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

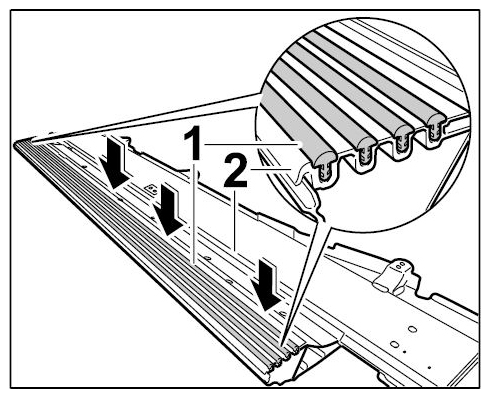

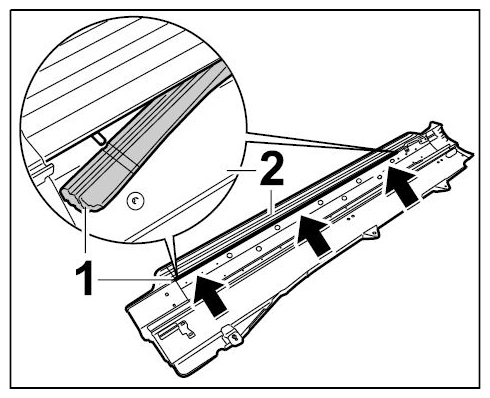

Press upper protective strips -1- into the step -2- (-arrows- ). The ends of the protective strip must be flush with the step.

Fig 1: Installing Upper Protective Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install outer protective strip.

Fig 2: Installing Outer Protective Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

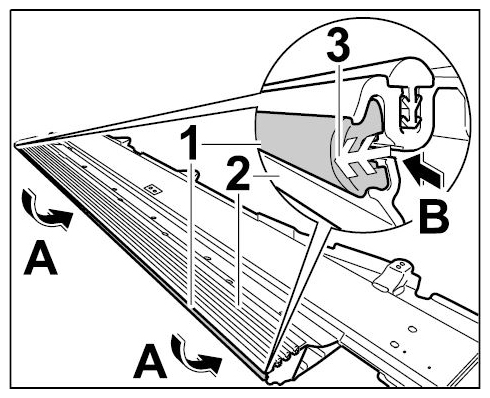

1. 2.1. Press outer protective strip -1- into the step -2- (-arrows A- ). The ends of the protective strip must be flush with the step.
2. 2.2. Lock outer protective strip using the expanding clip -3- (-arrow B- ).
Install rear impact protection cover.

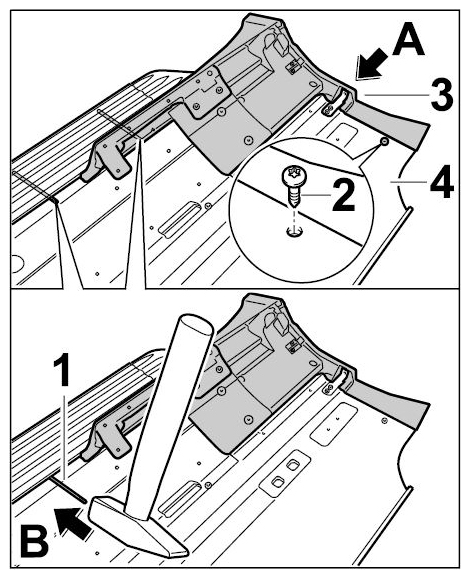

Fig 3: Installing Rear Impact Protection Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Press rear impact protection cover -3- into the step -4- (-arrow A- ).
2. 3.2. Tighten fastening screw -2- .
3. 3.3. Carefully tap in the locking pins -1- with a hammer -arrow B- .

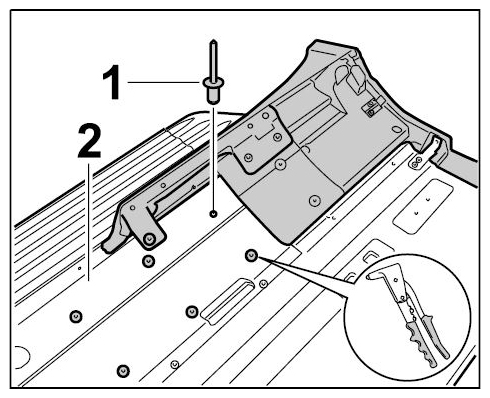

4. 3.4. Rivet rear impact protection cover -2- securely using blind rivets -1- .

  Fig 4: Securing Rear Impact Protection Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

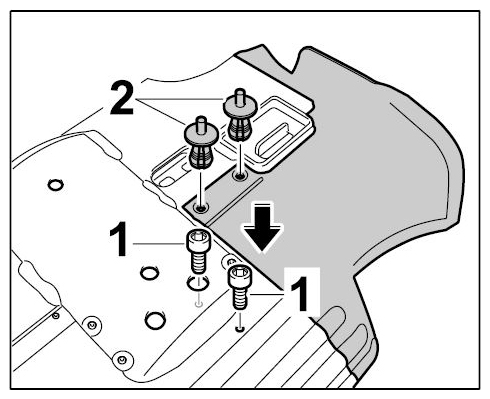

5. 3.5. Tighten fastening screws -1- .

  Fig 5: Tightening Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. 3.6. Press in plastic expansion rivet -2- (-arrow- ) and secure with a pin.
Install front impact protection cover.

Fig 6: Installing Front Impact Protection Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

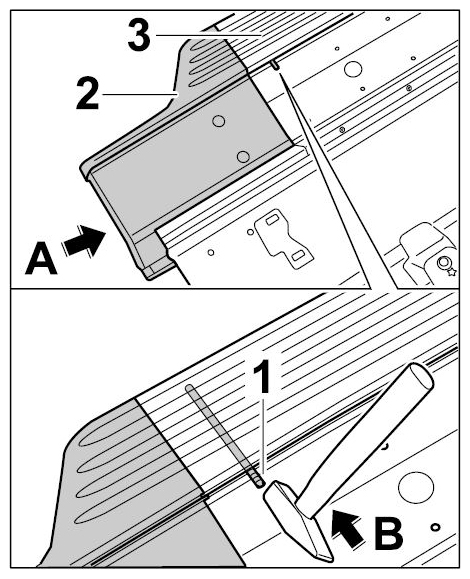

1. 4.1. Press front impact protection cover -2- into the step -3- (-arrow A- ).
2. 4.2. Carefully tap in the locking pins -1- with a hammer -arrow B- .

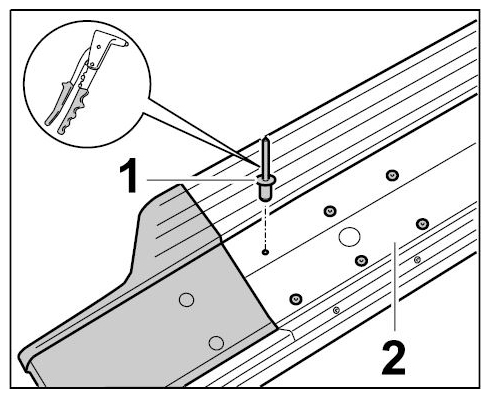

3. 4.3. Rivet front impact protection cover -2- securely using blind rivets -1- .

  Fig 7: Securing Front Impact Protection Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Tighten fastening screws -1- .

  Fig 8: Tightening Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 4.5. Press in plastic expansion rivet -2- (-arrow- ) and secure with a pin.
Position seal -1- with the bores on the locking pins and press seal into the step -2- (-arrows- ).

Fig 9: Positioning Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press spacers -1- into the step -2- (-arrow- ).

Fig 10: Fitting Spacers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press front end piece -1- into the step -2- (-arrow- ).

Fig 11: Installing Front End Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

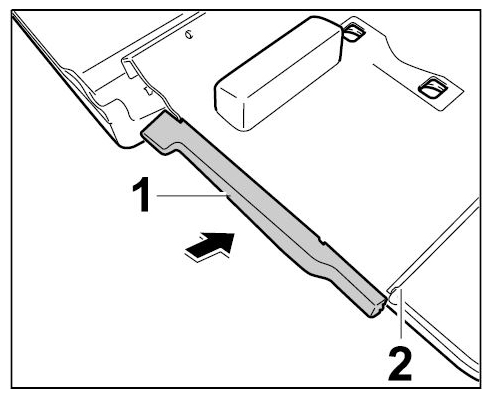

Press spacer insert -1- into the step -2- (-arrow- ).

Fig 12: Pressing Spacer Insert
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
