Removing Side Step (Skidpad)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

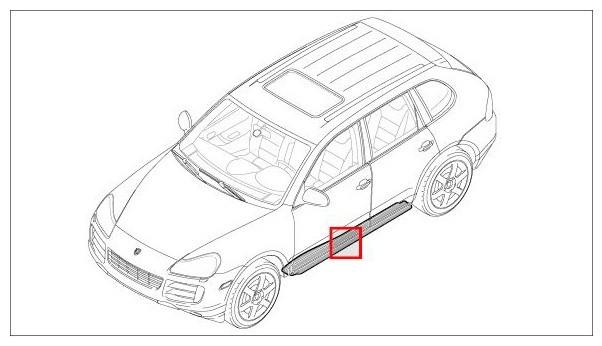

Fig 1: Identifying Installation Position Of Side Step

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side step.

Fig 2: Removing Side Step
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

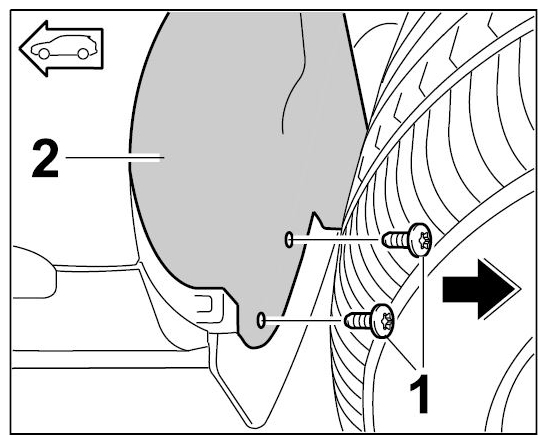

1. 1.1. Unscrew fastening screws -1- on rear wheel housing liner -2- in the lower area -arrow- .

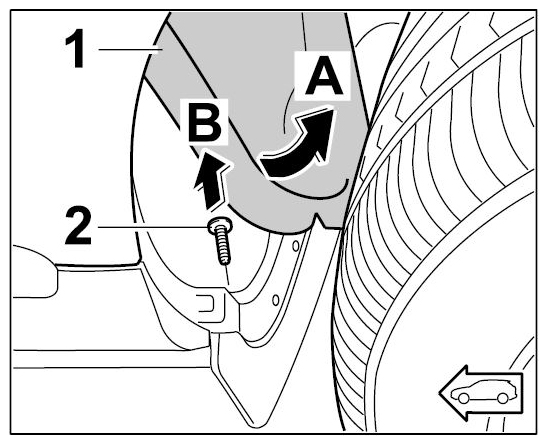

2. 1.2. Lift off rear wheel housing liner -1- in the lower area -arrow A- and unscrew fastening screw -2- (-arrow B- ).

  Fig 3: Loosening Side Step
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

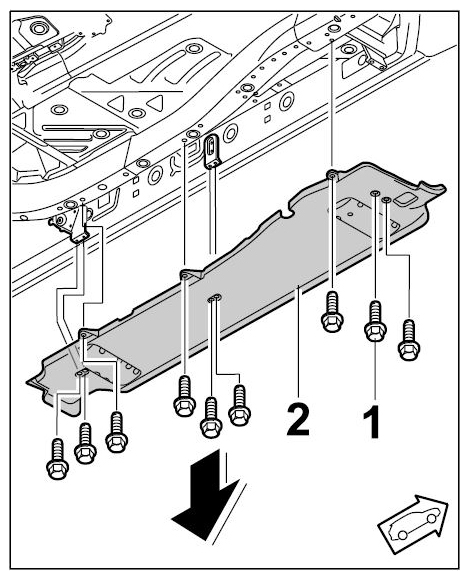

3. 1.3. Unscrew fastening screws -1- and remove side step -2- by pulling it downwards with the help of an assistant -arrow- .

  Fig 4: Removing Side Step And Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side-step brackets.

Fig 5: Removing Side-Step Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

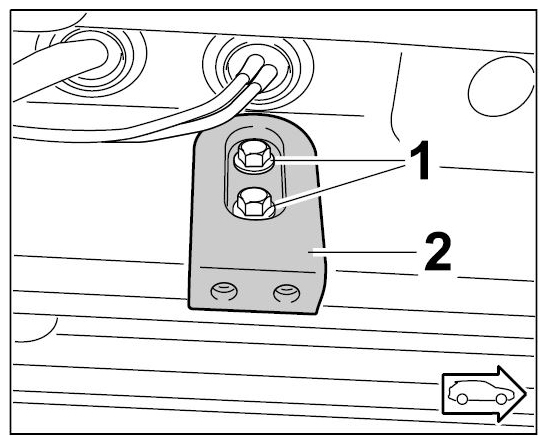

1. 2.1. Unscrew fastening screws -1- and remove rear bracket -2- .

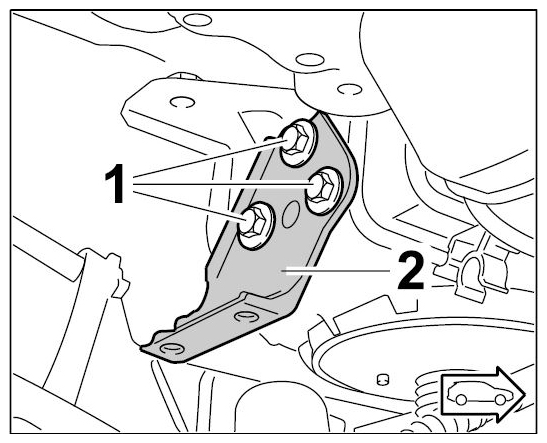

2. 2.2. Unscrew fastening screws -1- and remove centre bracket -2- .

  Fig 6: Removing Centre Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

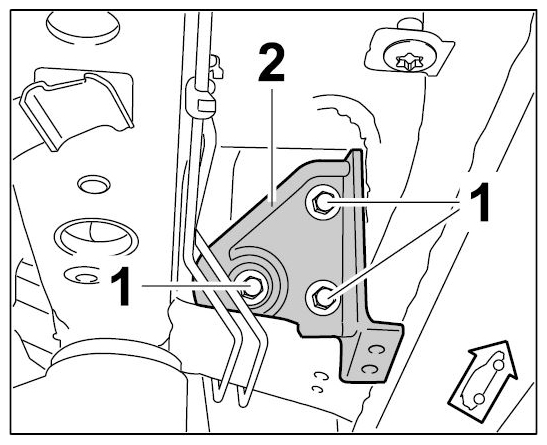

3. 2.3. Unscrew fastening screws -1- and remove front bracket -2- .

  Fig 7: Removing Front Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
