Installing The Cover For Front Doors

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

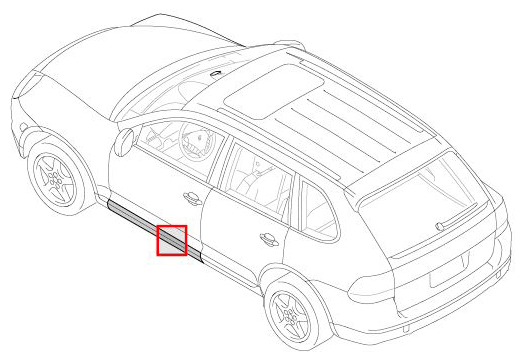

Fig 1: Identifying Front Doors Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check fixing clips and replace if necessary.
1. 1.1. Slide fixing clip -5- in direction of arrow out of the door cover.
2. 1.2. Insert fixing clip -5- against the direction of the arrow into the door cover.

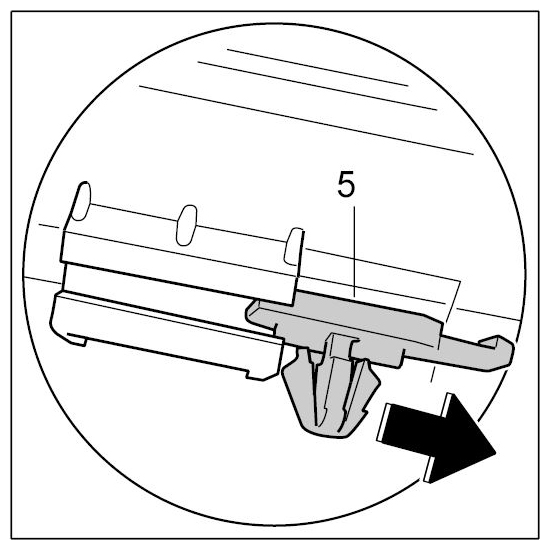

  Fig 2: Inserting Fixing Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach panel -6- to side of door flange.
Press in new grommets -4- .

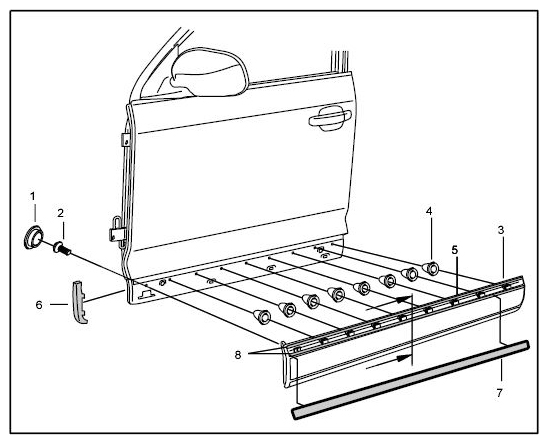

Fig 3: Identifying Mounting Grommets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure door cover.
1. 4.1. Hook door cover -3- onto the door flange -arrow B- .
2. 4.2. Swivel door cover -3- upwards -arrow A- and clip into place.
3. 4.3. Make sure that the fixing clips click into place during installation.

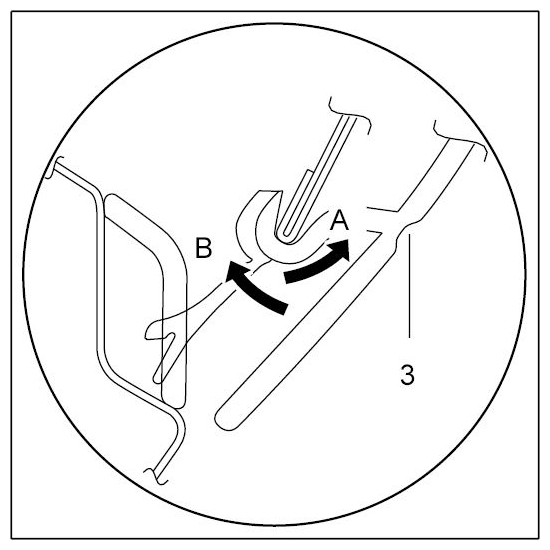

  Fig 4: Locating Fixing Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw -2- .
Push in the connector -1- .

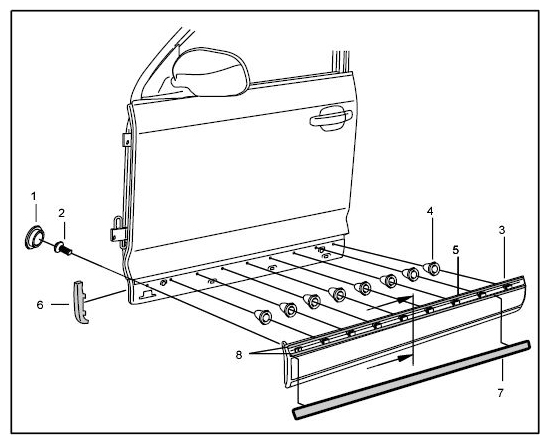

Fig 5: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim strip -7- if necessary. → Installing Trim Strip For Front Door
