Removing Wing Trim Panel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

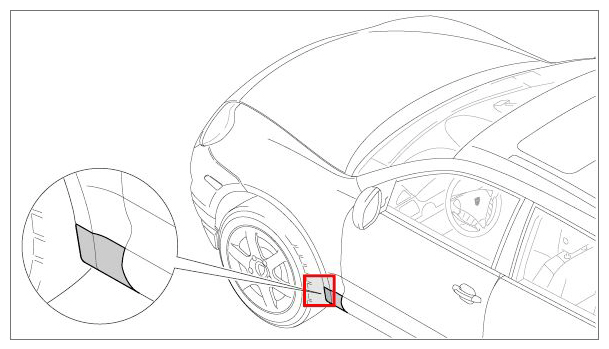

Fig 1: Identifying Installation Position Of Wing Trim Panel
G09412011Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Insert a plastic wedge -1-  under the front wing trim panel -2-  (-arrow A-  ) and lever the wing trim panel off towards the outside -arrow B-  .

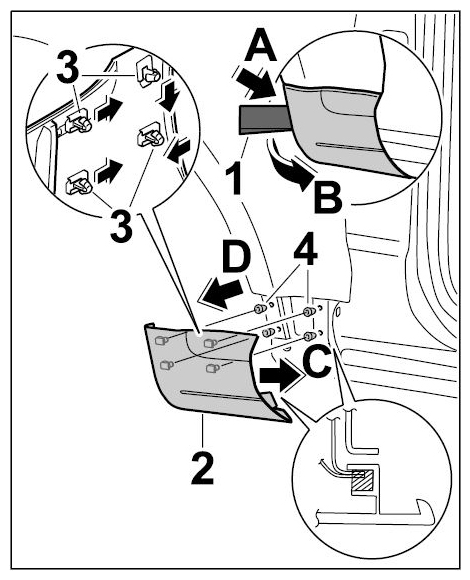

    Fig 2: Removing Wing Trim Panel
    G09412012Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open the door and unhook the wing trim panel -2-  by pulling it backwards -arrow C-  out of the wing flange.
  3. Slide fixing clips -3-  out of the wing trim panel in direction of arrow.
  4. Unclip fastening grommets -4-  on the wing -arrow D-  .
