Installing Moulding For Wing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only cleaning alcohol (isopropanol) may be used for cleaning. Other cleaning solutions can damage the plastic!

Wipe the bonding areas on the cover and reverse side of the moulding with cleaning alcohol.

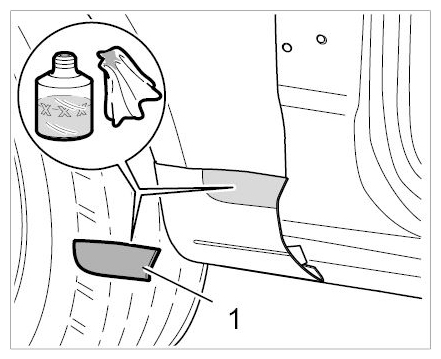

Fig 1: Identifying Wipe Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off strips of adhesive tape to protect paintwork.
Stick a strip of adhesive tape along the upper and lower edge of the sealing surface.

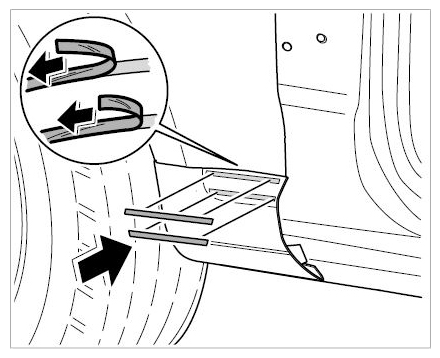

Fig 2: Locating Upper And Lower Edge Of Sealing Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove protective film from the adhesive strip.
Position moulding and lay it on the adhesive strip.

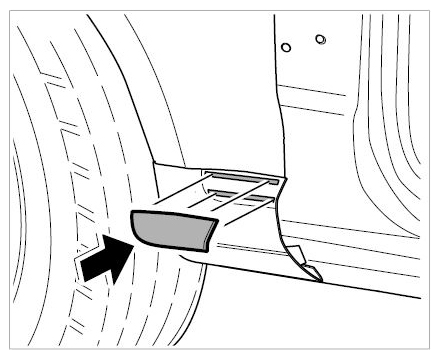

Fig 3: Positioning Moulding And Lay Adhesive Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Warm up moulding with a hot-air gun and press down evenly on the cover.
