Removing Radiator Grille

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

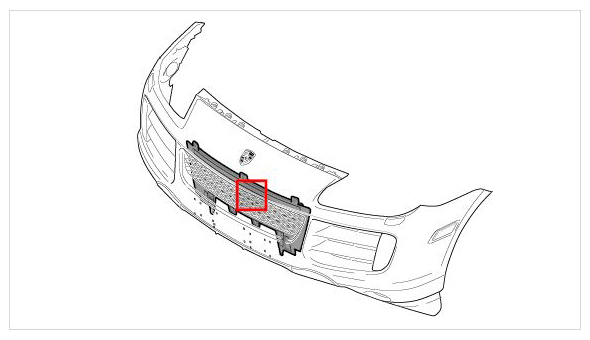

Fig 1: Identifying Installation Position Of Radiator Grille

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

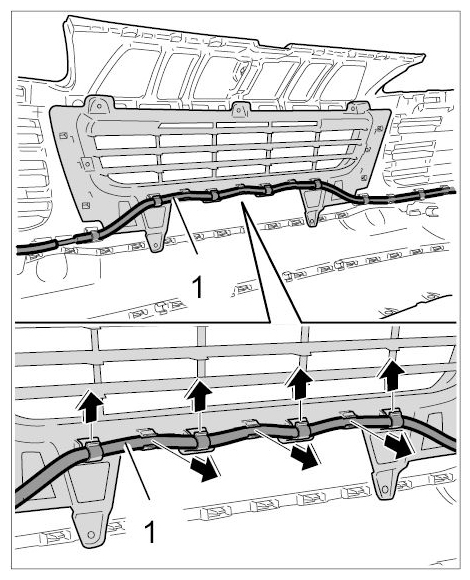

Unclip wire harness -1- from the holders -arrows- .

Fig 2: Removing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

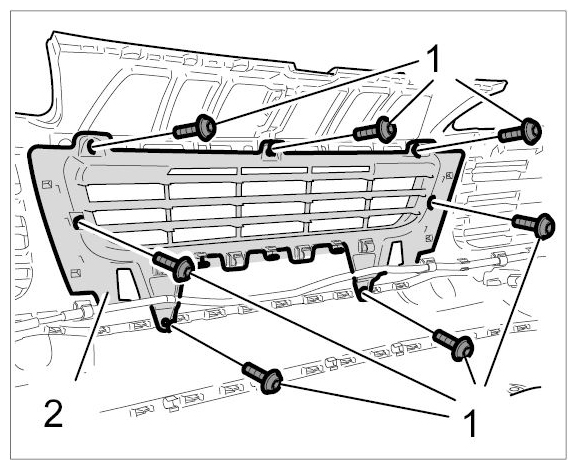

Unscrew fastening screws -1- on the radiator grille -2- .

Fig 3: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

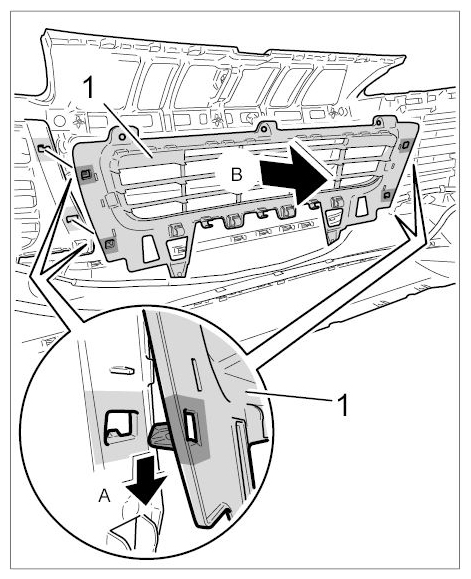

Release clips on the radiator grille -1- using a screwdriver -arrow A- and remove radiator grille -1- by pulling it towards the rear -arrow B- .

Fig 4: Removing Radiator Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
