Installing Radiator Grille

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

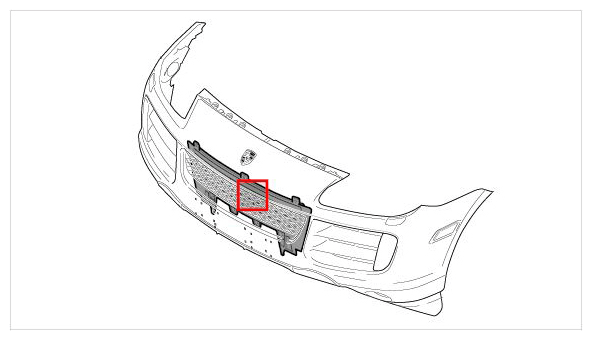

Fig 1: Identifying Installation Position Of Radiator Grille

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

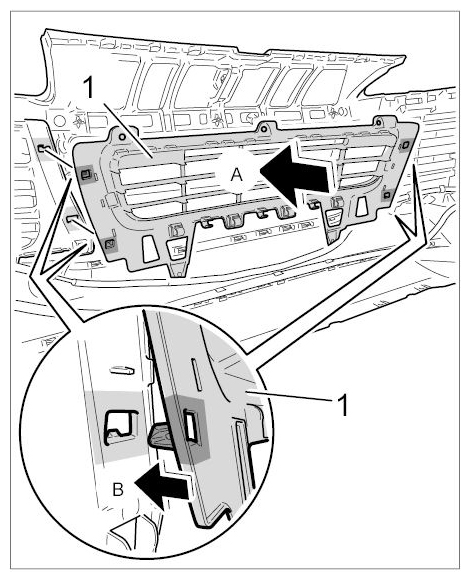

Position radiator grille -1- on the front apron -arrow A- and press it in at the clips -arrow B- until the clips engage securely.

Fig 2: Installing Radiator Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

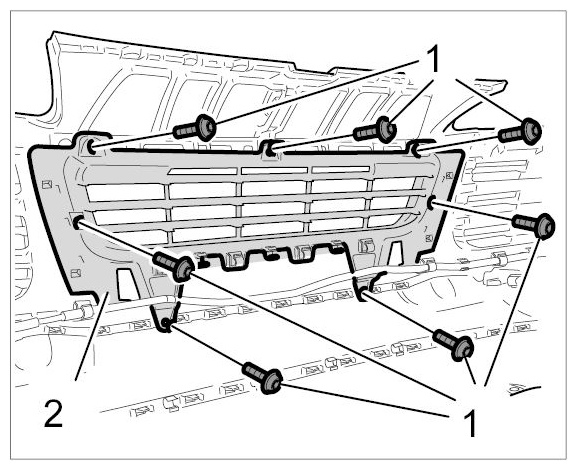

Secure radiator grille -2- on the front apron with the fastening screws -1- .

Fig 3: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

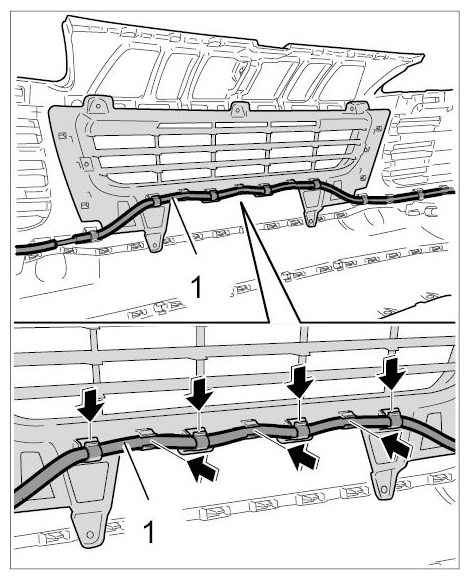

Clip wire harness -1- in at the holders -arrows- .

Fig 4: Clipping Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
