Removing Front Ventilation Grille

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

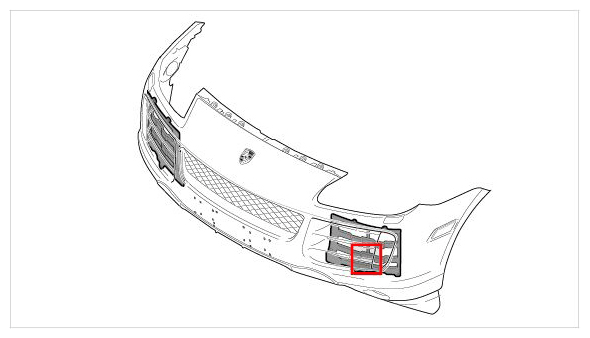

Fig 1: Identifying Installation Position Of Front Ventilation Grille

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

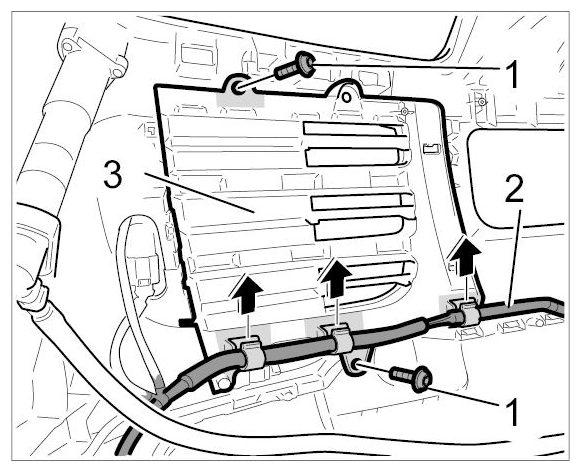

Loosen front ventilation grille.
1. 1.1. Unscrew fastening screws -1- on front ventilation grille -3- .
2. 1.2. Take wire harness -2- out of the front ventilation grille supports -3- (-arrows- ).

  Fig 2: Loosening Front Ventilation Grille
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

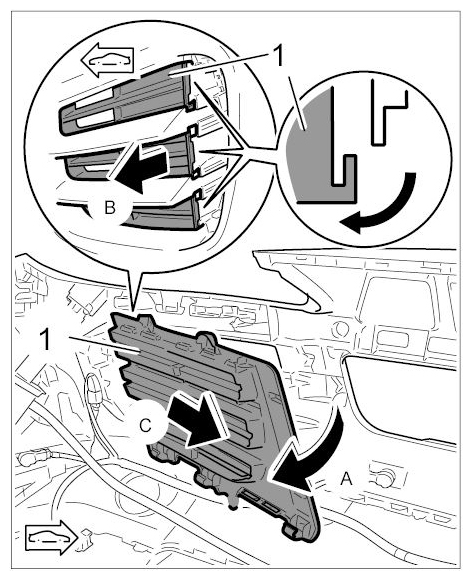

Remove front ventilation grille.
1. 2.1. Swivel front ventilation grille -1- inwards -arrow A- .
2. 2.2. Disengage front ventilation grille -1- with the clips on the front apron -arrow B- .
3. 2.3. Remove front ventilation grille -1- . -arrow C-

  Fig 3: Removing Front Ventilation Grille
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
