Installing Front Ventilation Grille

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

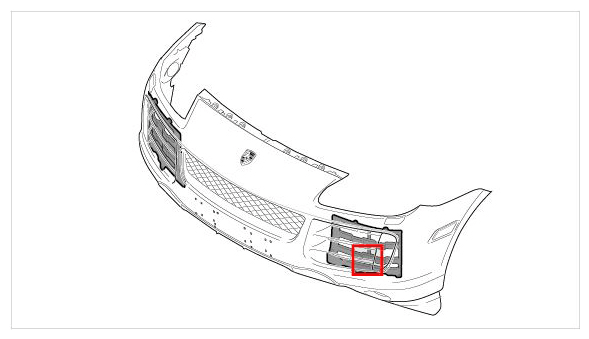

Fig 1: Identifying Installation Position Of Front Ventilation Grille

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

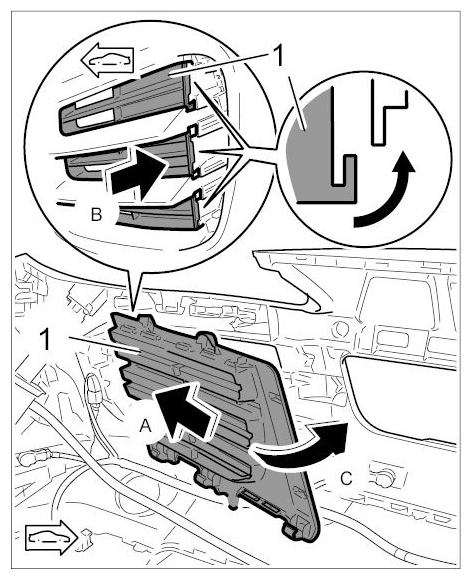

Install front ventilation grille.
1. 1.1. Fit front ventilation grille -1- into the front apron -arrow A- .
2. 1.2. Engage front ventilation grille -1- with the clips in the front apron -arrow B- .
3. 1.3. Swivel front ventilation grille -1- forward and position it on the front apron -arrow C- .

  Fig 2: Installing Front Ventilation Grille
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

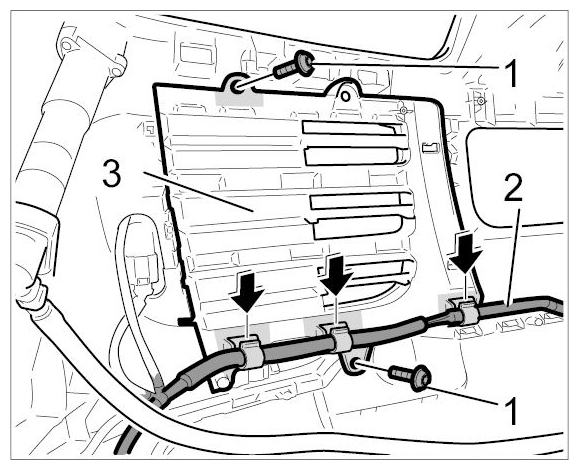

Secure front ventilation grille on the front apron.
1. 2.1. Insert wire harness -2- into the front ventilation grille supports -3- (-arrows- ).
2. 2.2. Secure front ventilation grille -1- with the fastening screws -2- .

  Fig 3: Installing Front Ventilation Grille And Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
