Removing Upper Part Of Front Spoiler

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

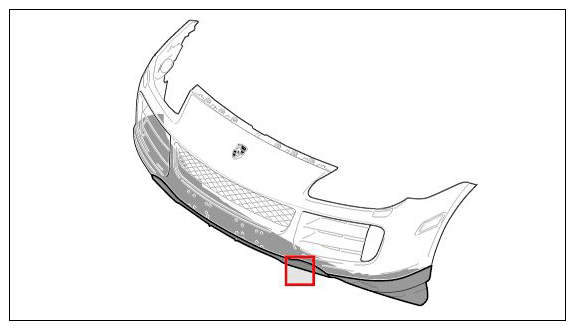

Fig 1: Identifying Installation Position Of Front Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

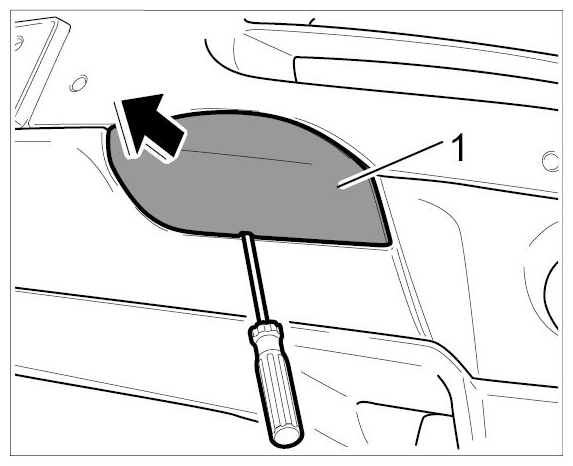

Unclip cap -1- using a screw driver and remove -arrow- .

Fig 2: Removing Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

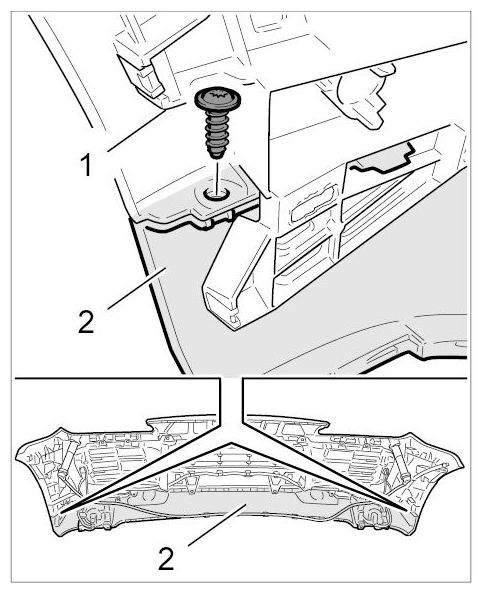

Unscrew fastening screws -1- on the left and right of the upper part of the front spoiler -2- .

Fig 3: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

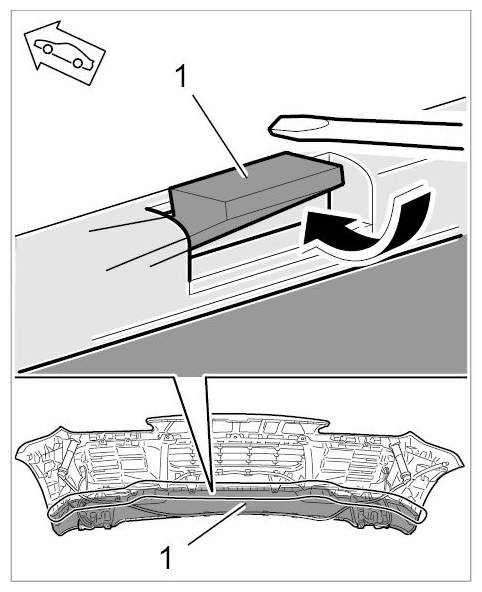

Disengage retaining pivot for the upper part of the front spoiler -1- out of the front apron in the marked area using a screw driver -arrow- .

Fig 4: Disengaging Retaining Pivot For Upper Part Of Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

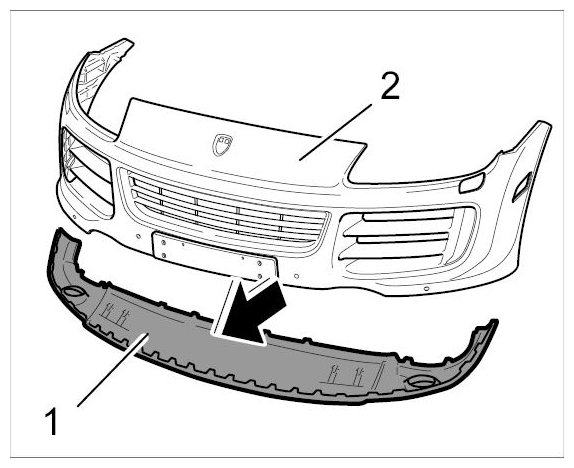

Remove upper part of front spoiler -1- from front apron -2- (-arrow- ).

Fig 5: Removing Upper Part Of Front Spoiler From Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
