Removing Lower Part Of Front Spoiler

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

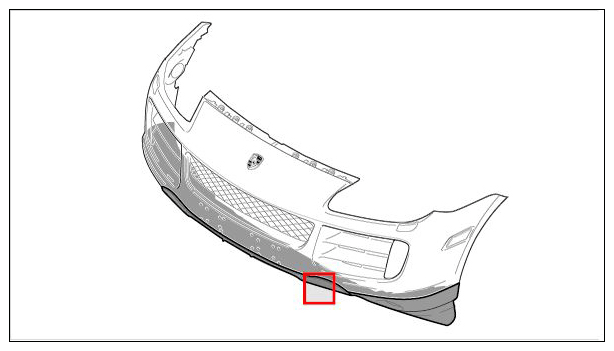

Fig 1: Identifying Installation Position Of Front Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengage hose for headlight washer system -1- (-arrows- ) and place to the side.

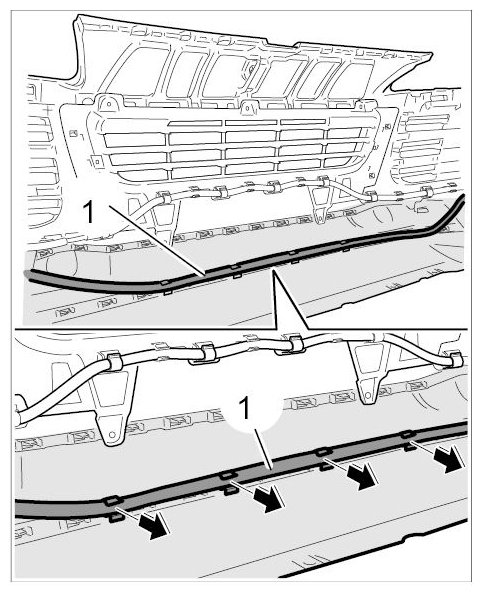

Fig 2: Disengaging Hose For Headlight Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- on the left and right of the lower part of the front spoiler -2- .

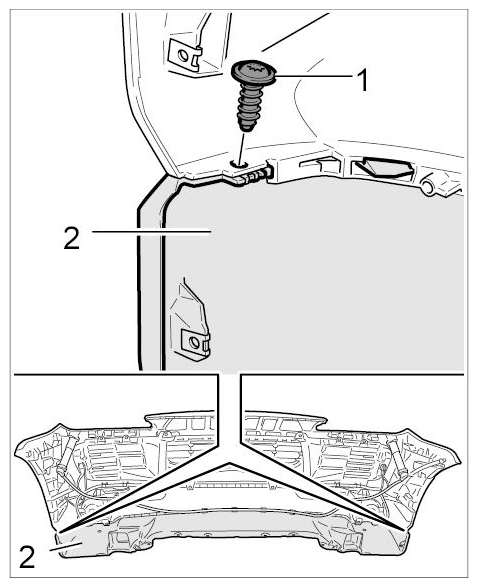

Fig 3: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage retaining pivot for the lower part of the front spoiler -1- out of the front apron in the marked area using a screw driver -arrow- .

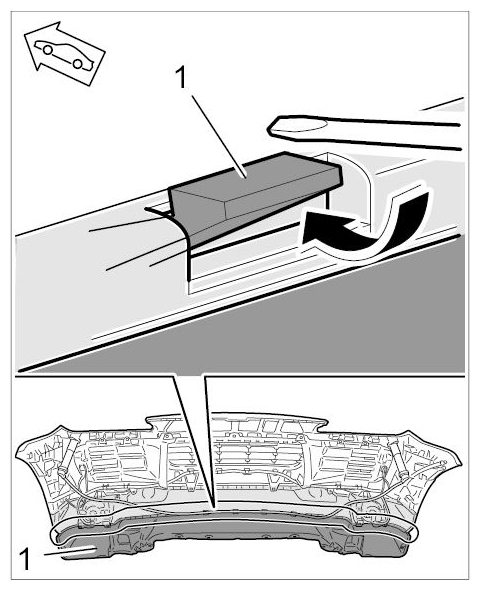

Fig 4: Disengaging Retaining Pivot For Lower Part Of Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lower part of front spoiler -1- from front apron -2- (-arrow- ).

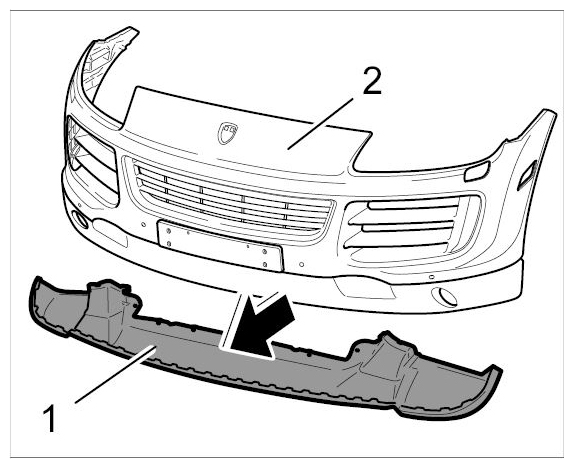

Fig 5: Removing Lower Part Of Front Spoiler From Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
