Installing Lower Part Of Front Spoiler

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

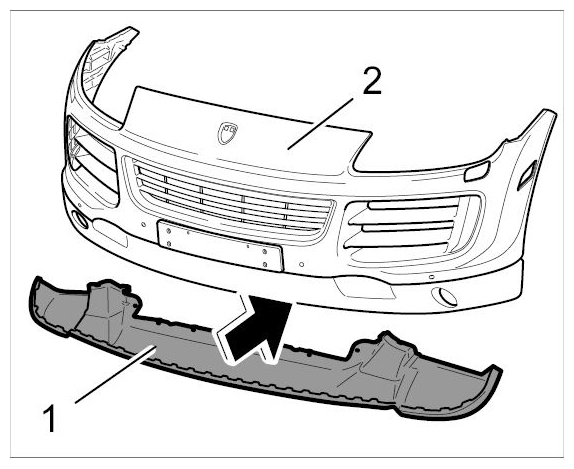

Place lower part of front spoiler -1- on the front apron -2- (-arrow- ).

Fig 1: Placing Lower Part Of Front Spoiler On Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

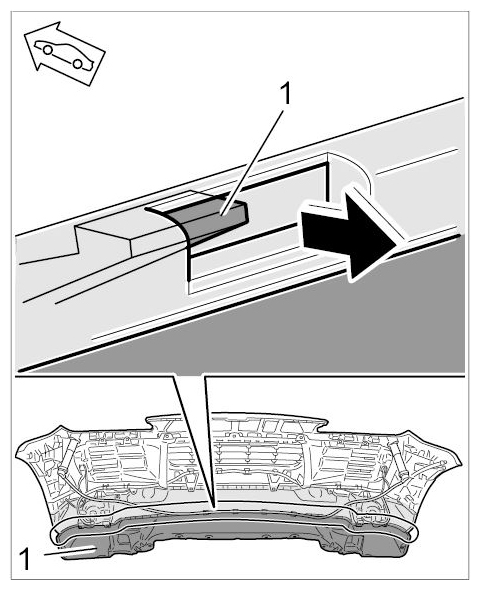

Press lower part of front spoiler -1- into the front apron -arrow- until the retaining pivots of the lower part of the front spoiler -1- engage securely in the marked area.

Fig 2: Pressing Lower Part Of Front Spoiler Into Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

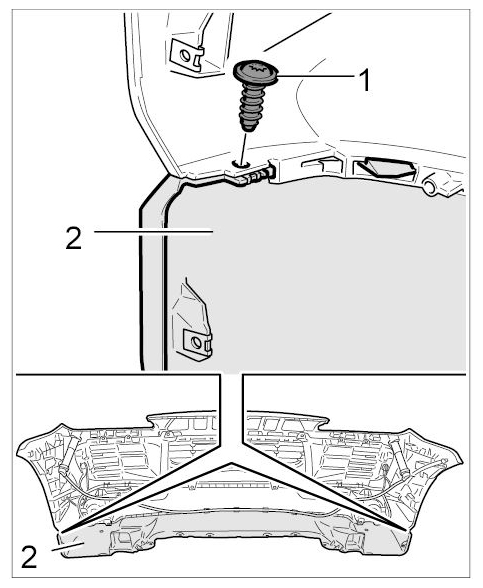

Screw in fastening screw -1- on the left and right of the lower part of the front spoiler -2- .

Fig 3: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

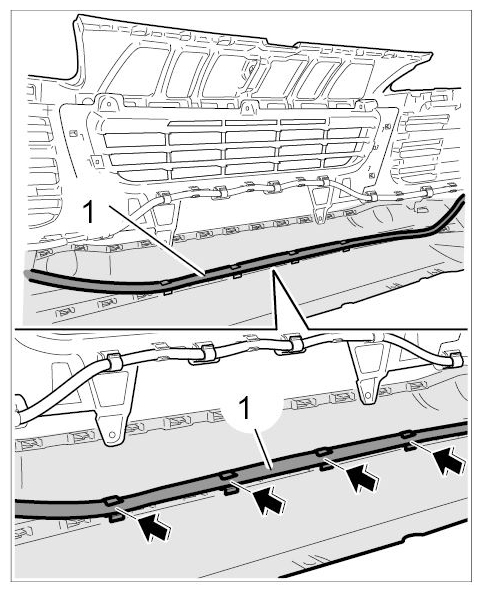

Hook in hose for headlight washer system -1- (-arrows- ).

Fig 4: Hooking In Hose For Headlight Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
