Activating Systems

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The work procedure is menu-driven; the Tester instructions have the highest priority, additional operation is specified using the arrow icons, e.g. [>>].

Connect the Porsche System Tester to the vehicle and start the System Tester. Switch on ignition. Press [>>] to continue.

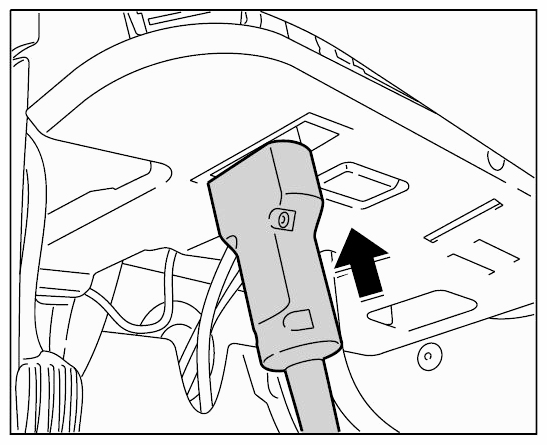

Fig 1: Connecting Porsche System Tester To Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Select the Special functions menu using the cursor keys.
Switch to Cayenne analysis and start it. Analysis is performed. Print out analysis log and assign it to the vehicle process.
[→] Select vehicle type. Switch to Cayenne hand over.
Observe instructions on the Tester and code [>>] using [F8].
Enter the required chassis number [>>].
Wait until the Tester displays the message All functions run and PCM/CDR was activated . [>>]. Continue with Read out fault memory
