Fitting Mobile Phone Console

Information

• An assembly kit for the mobile phone console is supplied in the vehicle along with the I No. for the mobile phone console.
• Before delivery to the customer, this console must be fitted with whichever E-box matches the customer's mobile phone.
• The E-box to be fitted must be agreed with the customer and purchased on the open market, if required.

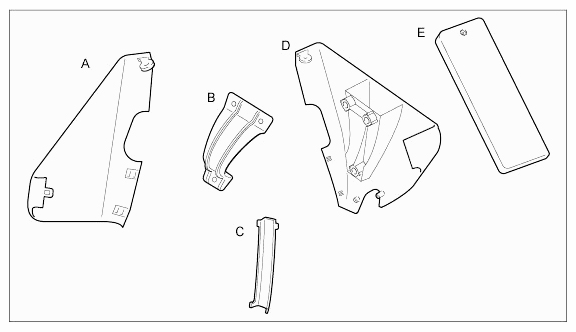

  Fig 1: Overview Of Single Parts In Mobile Phone Console

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Inner part
  2. Clamp
  3. Cable duct
  4. Outer part
  5. Upper part

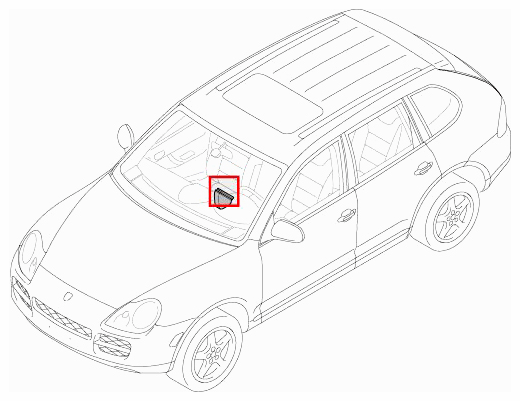

Fig 2: Overview Of Installation Of Mobile Phone Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

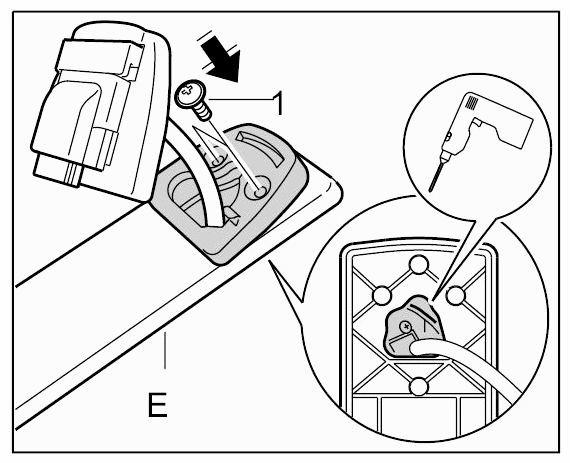

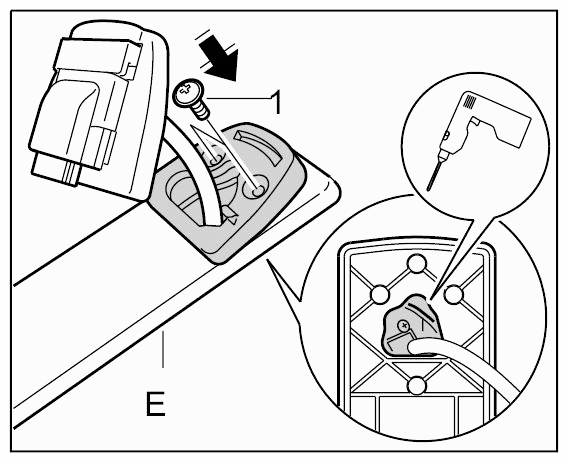

1. On the upper part -E-  , mark the fixing variant of the relevant interface box, drill as required, push the wiring through and position correctly using the fastening screws -1-  .
   Fig 3: Fastening Holes In Interface Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

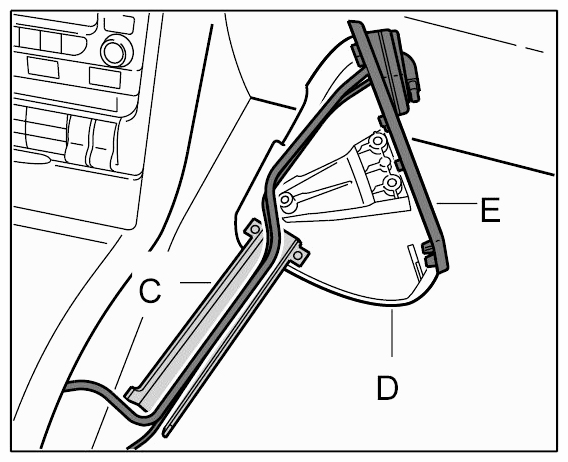

2. Fit the upper part -E-  loosely to the outer part -D-  and lay the VDA interface lead and antenna lead in the outer part -D-  and the cable duct -C-  .
   Fig 4: Identificationifying VDA Interface Lead And Antenna Lead

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Make sure that the wires are not pinched.
4. Engage the cable duct -C-  in the outer part -D-  .
5. Lift the assembled components -C, D, E-  onto the center console support, engage the cable duct at the lower edge of the center console and push the components -C, D, E-  onto the center console support.
   Fig 5: Pushing Components Onto center Console Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

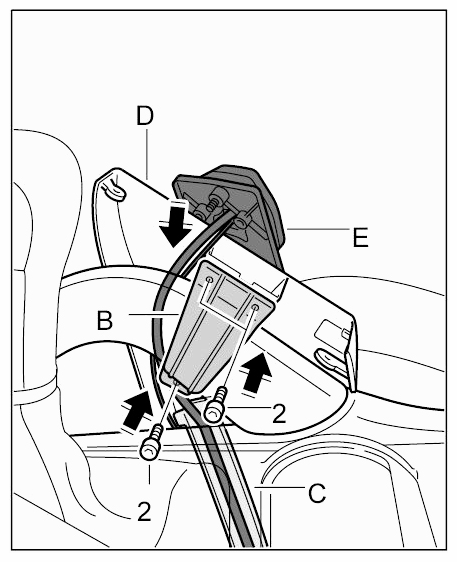

6. Place the clamp -B-  on the outer part and secure with the three fastening screws -2-  . → Tightening torque: 1.5 ftlb.
7. Engage the inner part -A-  with the outer part -D-  , then clip into the outer part and secure with the fastening screw -3-  . → Tightening torque: 0.4 ftlb.

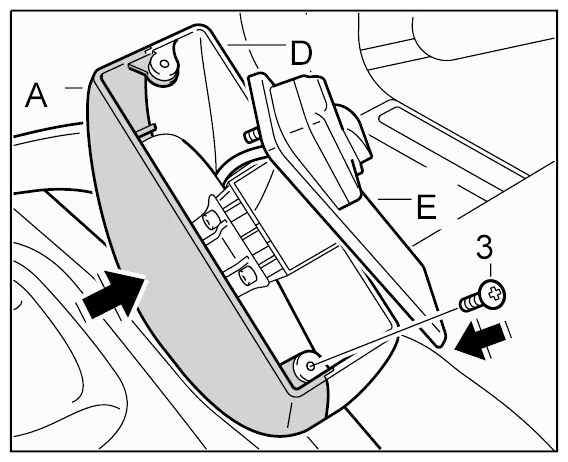

   Fig 6: Installing Inner Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Screw in the fastening screws -4-  for the interface box support from the upper part -E-  .

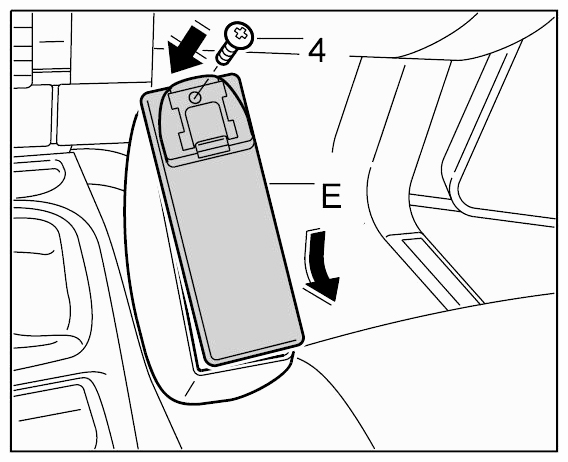

   Fig 7: Screwing Interface Box Onto Upper Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Engage the upper part -E-  in das inner-outer part -A-D-  and secure with the fastening screw -4-  . → Tightening torque: 0.4 ftlb.
10. Screw in the fastening screws -1-  for the interface box support into the upper part -E-  . → Tightening torque: 0.4 ftlb.
    Fig 8: Screwing On Support For Interface Box

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

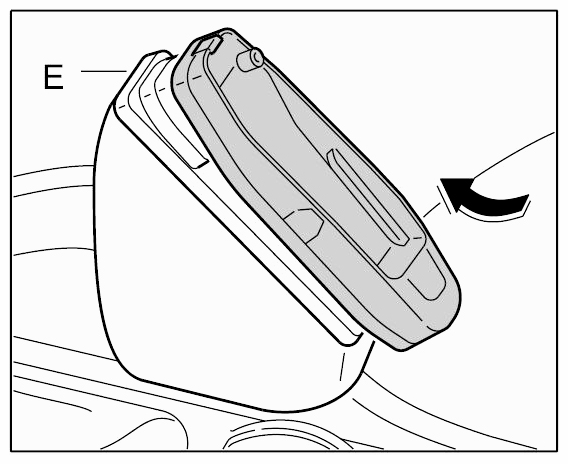

11. Push the interface box onto the cradle from below until the interface box engages.
    Fig 9: Pushing Interface Box Into Cradle

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Move/position the passenger seat all the way up and forwards.
13. The line for the VDA interface and antenna line is located under the seat. Guide this line with the connector under the left seat rail and lay it up along the seat.

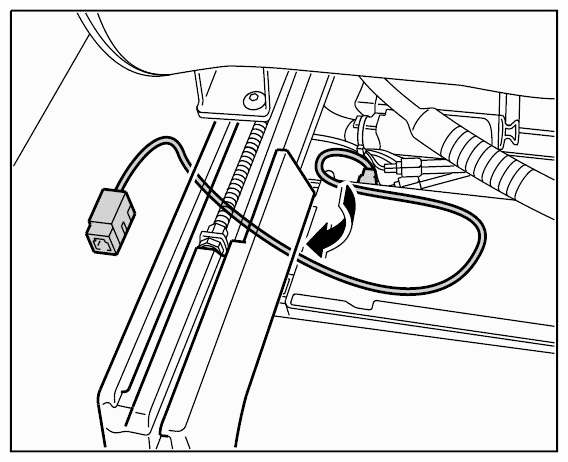

    Fig 10: Routing Line For VDA Interface And Antenna Line

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

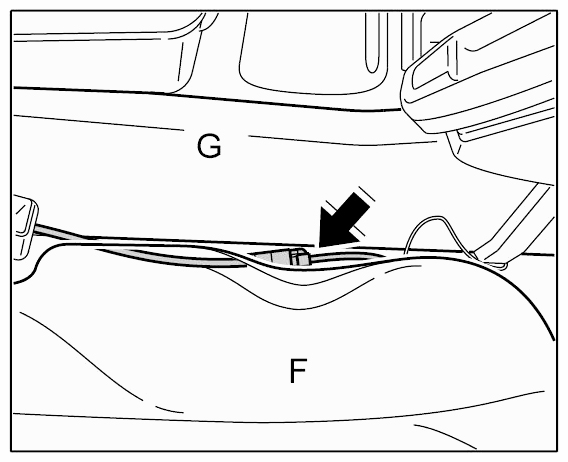

14. Connect wiring for the VDA interface and antenna leads
    1. G - center console
    2. F - Seat
       Fig 11: Locating VDA Interface And Antenna Connecting Line

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Press the carpet at the lower edge of the side part of the center console down and push/press the wiring under the center console.
16. Move the seat to the position required by the customer.
