WM 010123 Sales Check: Fitting Mobile Phone Console (All Models): E-Box

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The E-box components are not included in the mobile phone console delivery package.
If the customer already has an E-box, this can be installed on the mobile phone console.
If the customer does not yet have an E-box, an E-box that can be used with the mobile phone to be fitted must be purchased on the open market.

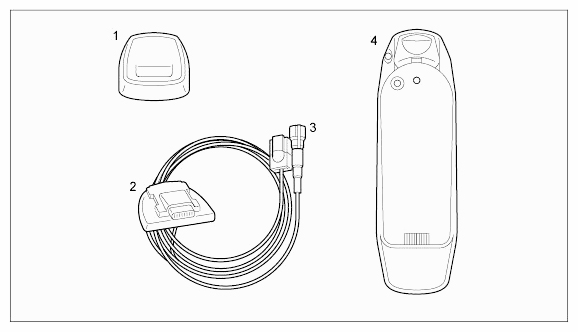

Fig 1: Overview Of E-Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Cover for interface box
2. Interface box
3. VDA interface and antenna
4. Mobile phone-specific cradle
