Securing Battery Ground Strap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position battery ground strap on the body and screw in the fastening nut. Attention! → Tightening torque: 15 ftlb.  .

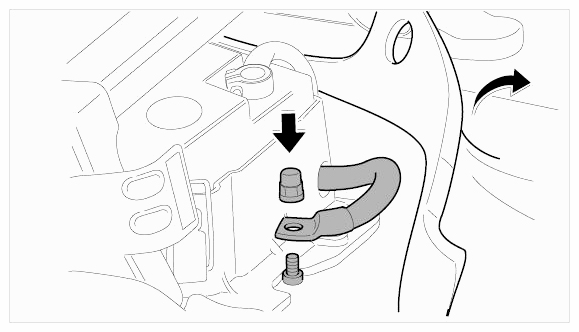

    Fig 1: Securing Battery Ground Strap
    G09408182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
