Teaching The Panorama Roof The Limit Positions
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Electrically moved components
- Risk of damage to components
→ Move objects out of the range of movement.
Information
- When the maximum duration of operation (> 40 seconds) is exceeded, the fault code 0409 (Rotary switch emergency button signal is permanently displayed) can be stored in the control unit.
- Initialisation must be completed fully as otherwise the roof cannot be operated electrically.
- If initialisation is interrupted or terminated, the entire procedure must be repeated.

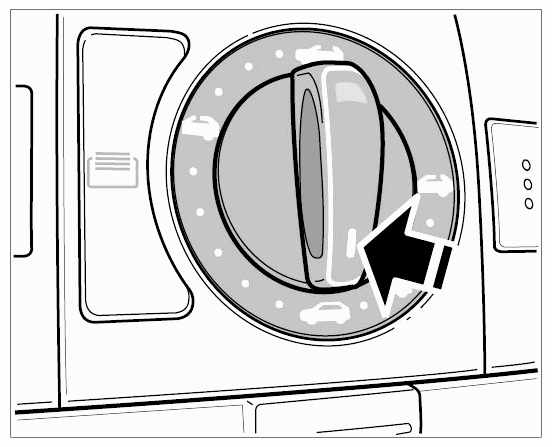

- Switch on ignition and turn rotary switch to the position "Close roof fully". Wait until the roof remains in any position.
- Hold the rotary switch in this position. The closing operation starts after approx. 5 seconds. Keep the rotary switch pressed until the sun blind and the roof are closed. First the sun blind is closed; then the lid of the roof assembly is closed, opened briefly, and closed again. The rear lid of the roof assembly only closes after the rotary switch is released.
- Relieve the seals from strain by briefly opening and then closing the roof again.
- Read out the fault memory with the Porsche System Tester and remedy any faults.
