Installing Lid Hinge Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

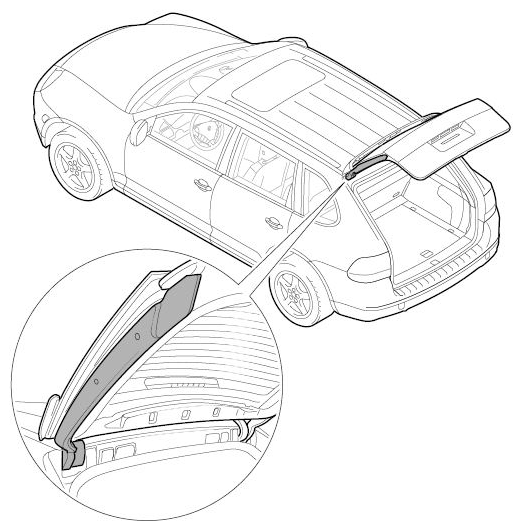

Fig 1: Identifying Lid Hinge Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

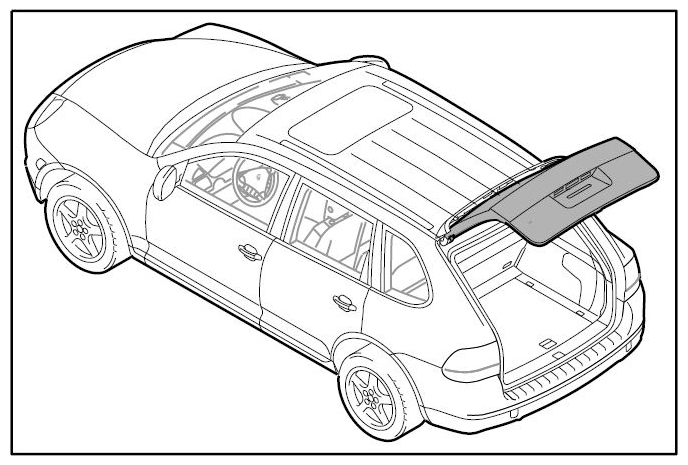

Fig 2: Identifying Rear Window Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install wiring duct on rear window hinge.

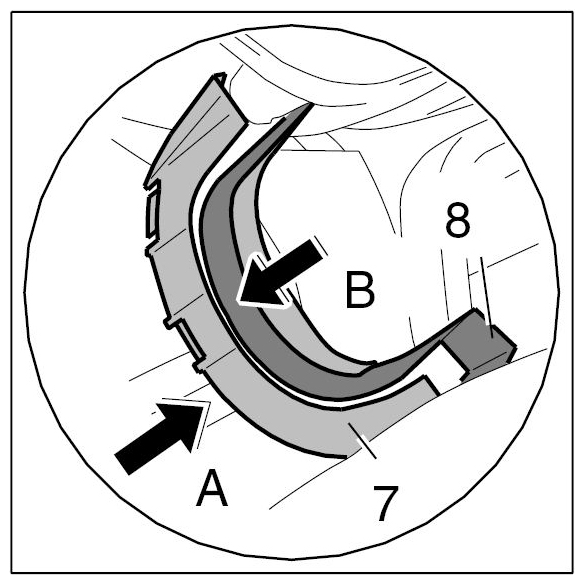

1. 1.1. Guide wiring duct -7- over wire harness -(Arrow A)- .

  Fig 3: Installing Wiring Duct On Rear Window Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Press in the cover -8- -(Arrow B)- until the locking tabs engage audibly -(Arrow C)- .

  Fig 4: Pressing Cover (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

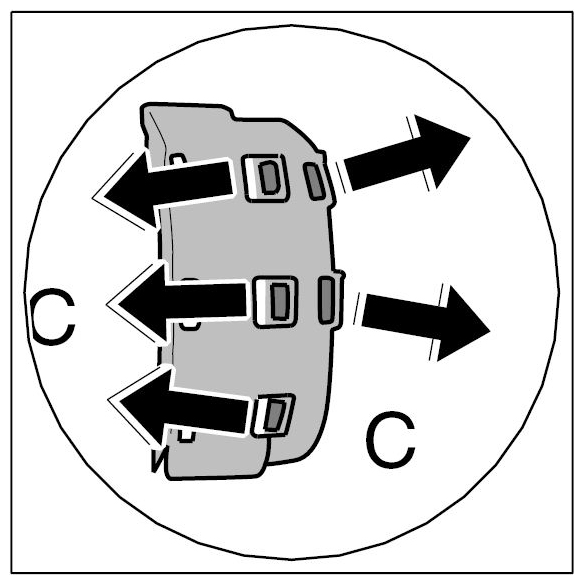

  Fig 5: Pressing Cover (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

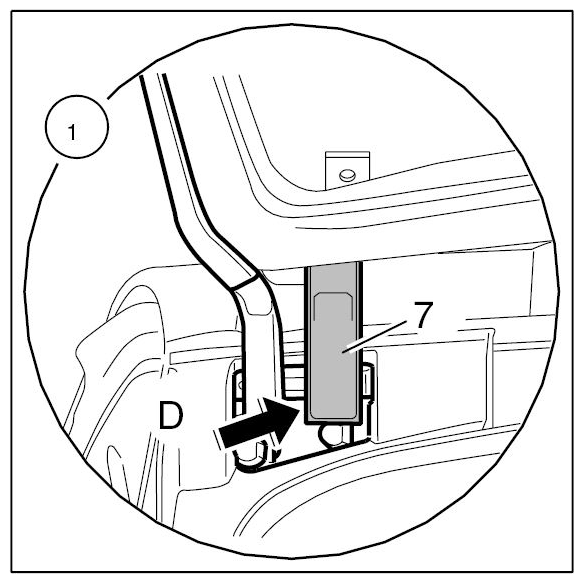

3. 1.3. Place the wiring duct -7- on the rear window hinge until the locking tabs engage audibly (-(Arrow D)- ).

  Fig 6: Placing Wiring Duct On Rear Window Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install wiring duct on lid hinge.
1. 2.1. Guide wiring duct -5- over wire harness -(Arrow E)- .

  Fig 7: Locating Wiring Duct Over Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

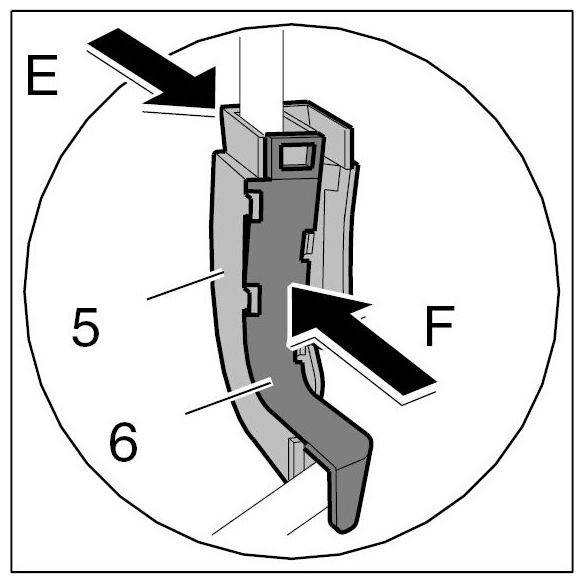

2. 2.2. Press in the cover -6- until the locking tabs engage audibly -(Arrow F)- .

  Fig 8: Pressing In Cover -6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

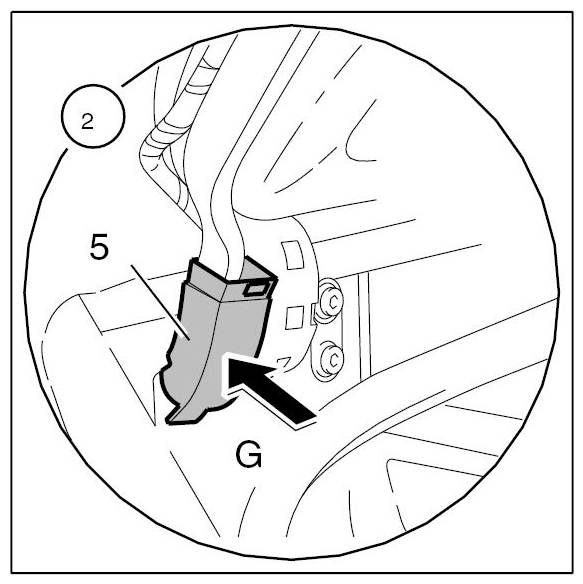

3. 2.3. Connect wiring duct -5- to the rear window hinge -(Arrow G)- .

  Fig 9: Connecting Wiring Duct To Rear Window Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install hinge cover on inner lid.

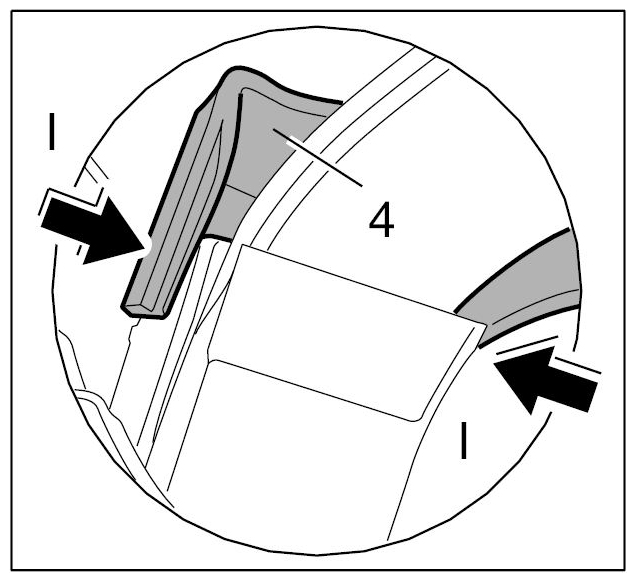

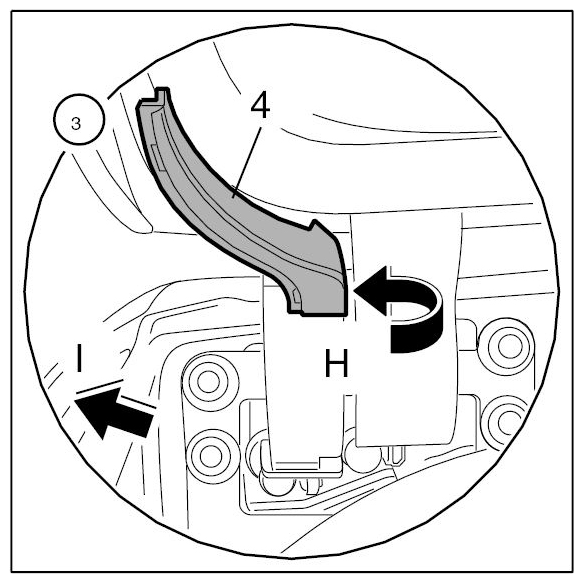

1. 3.1. Insert hinge cover -4- -(Arrow H)- and clip into place -(Arrows I)- .

  Fig 10: Inserting Hinge Cover (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 11: Inserting Hinge Cover (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install hinge cover on outer lid.

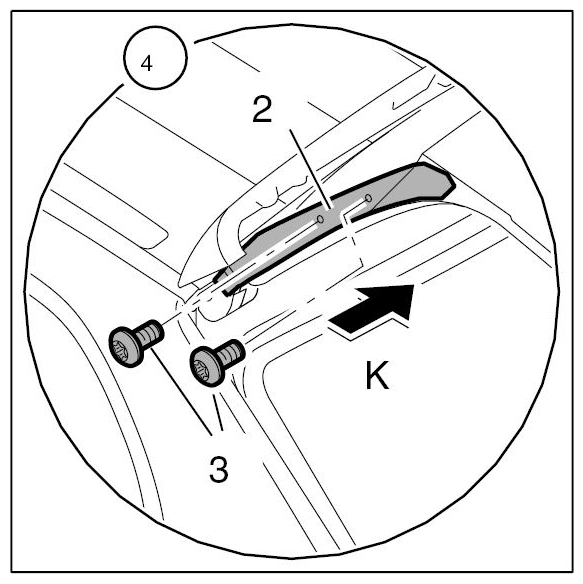

1. 4.1. Insert hinge cover on outer lid -2- -(Arrow K)- .
2. 4.2. Screw in -3- fastening screws.

  Fig 12: Screwing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install hinge cover on body.

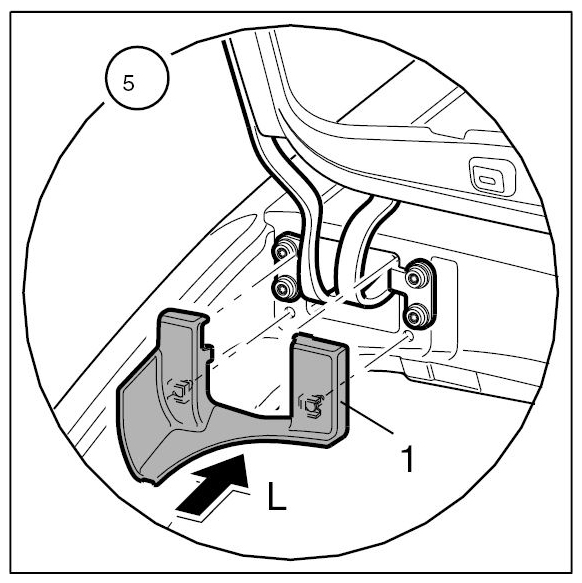

1. 5.1. Position the hinge cover -1- and clip it into place -(Arrow L)- .

  Fig 13: Positioning Hinge Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
