Removing Lining For Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

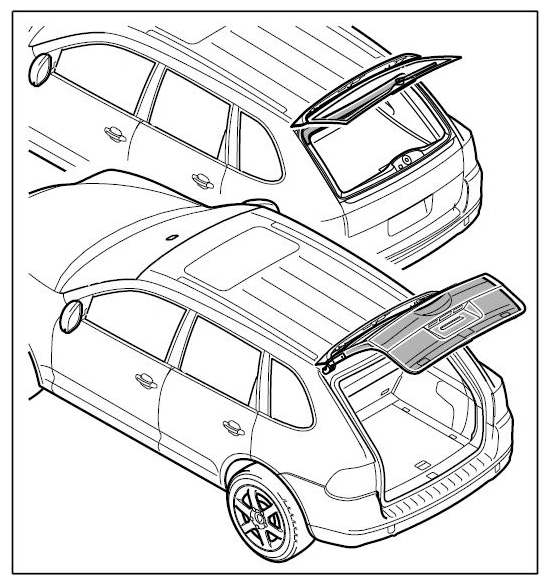

Fig 1: Identifying Rear Window Lining For Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

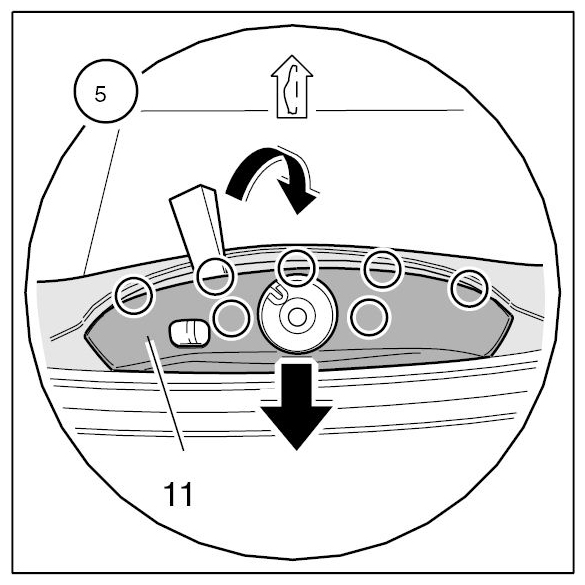

Unclip cover for rear wiper motor -11- at the marked positions. To do so, raise the trim slightly and lever out the clip connection using a plastic wedge.

Fig 2: Unclipping Cover For Rear Wiper Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the rear lid.

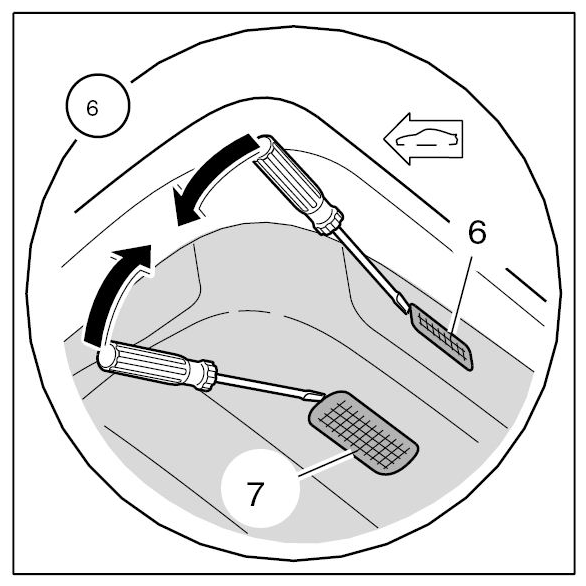

Unclip side lights -6, 7- .

Fig 3: Unclipping Side Lights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage plug connection -arrows- .

Fig 4: Disengaging Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

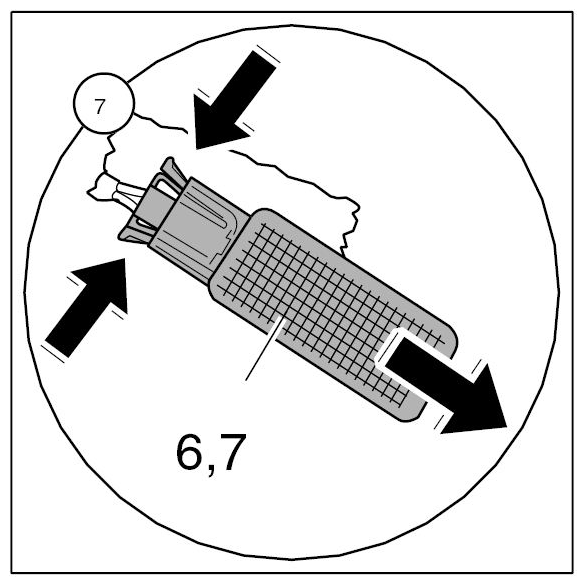

Remove position lights -6, 7- -arrow- .

Fig 5: Removing Position Lights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

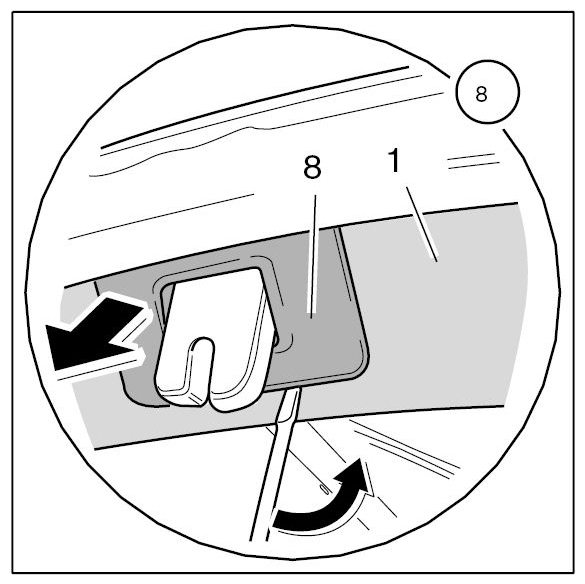

Lever the lock cover -8- out of the rear lid lining -1- using a screwdriver.

Fig 6: Removing Lever Lock Cover From Rear Lid Lining Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

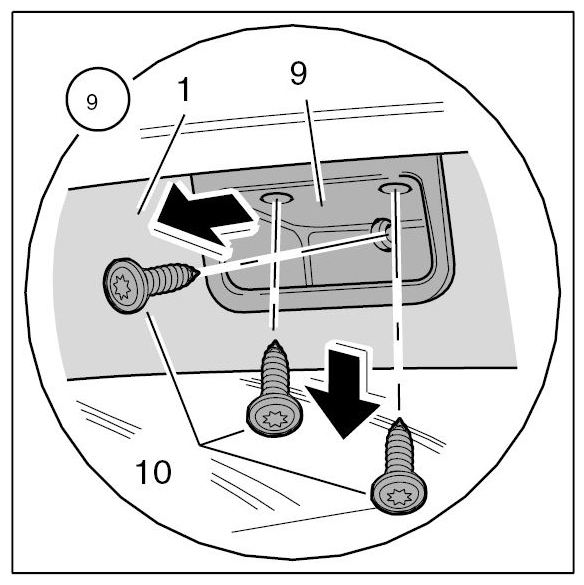

Unscrew fastening screw -10- .

Fig 7: Unscrewing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

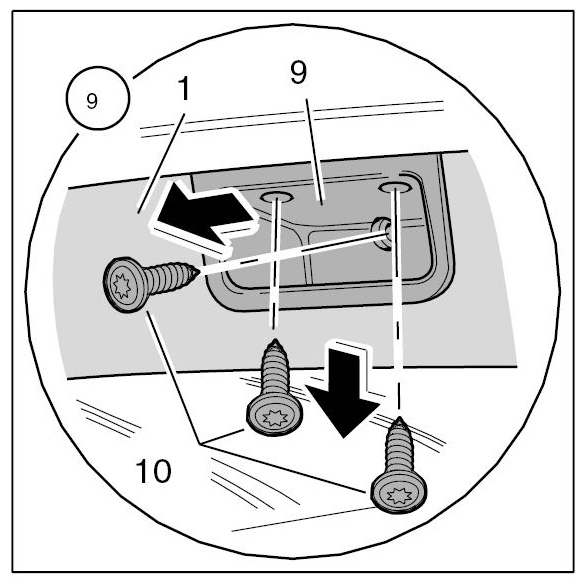

Remove finger plate -9- from the rear lid lining -1- .

Fig 8: Removing Finger Plate From Rear Lid Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

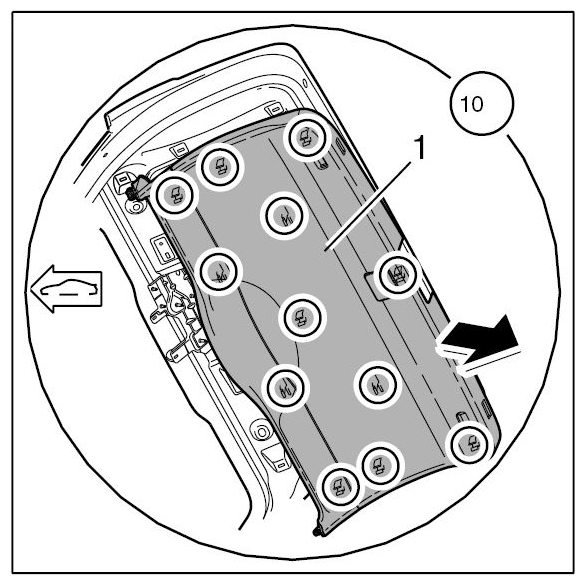

Unclip the rear lid lining -1- from the rear lid at the marked positions. To do so, raise the trim slightly and lever out the clip connection using a screwdriver.

Fig 9: Unclipping Rear Lid Lining From Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

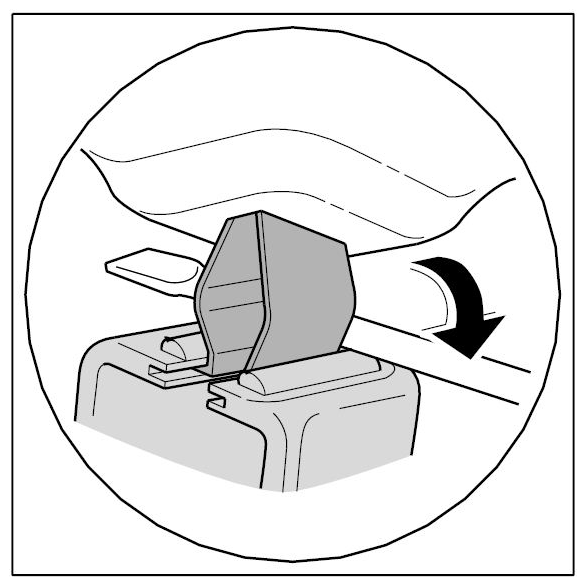

Fig 10: Removing Clip Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
