Removing Cover For Window Frame

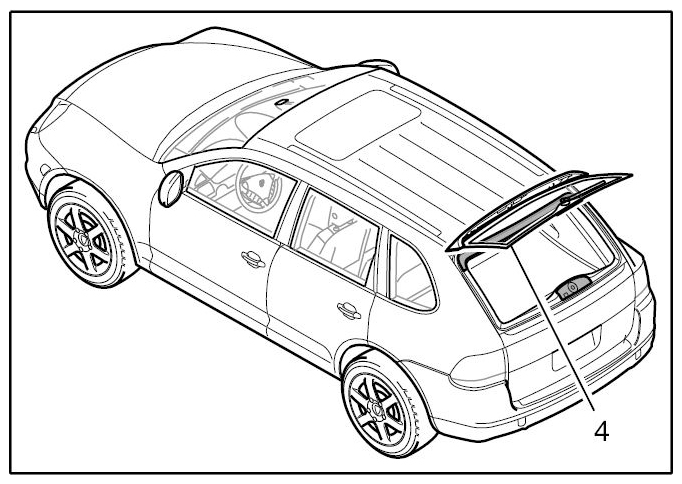

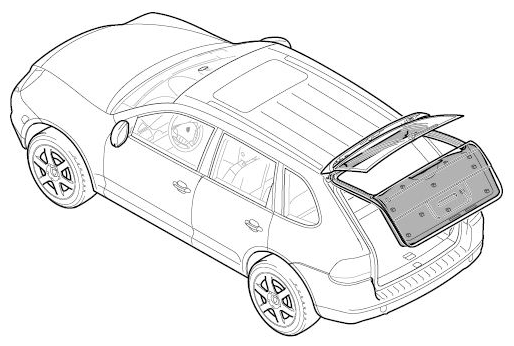

Fig 1: Identifying Cover For Window Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

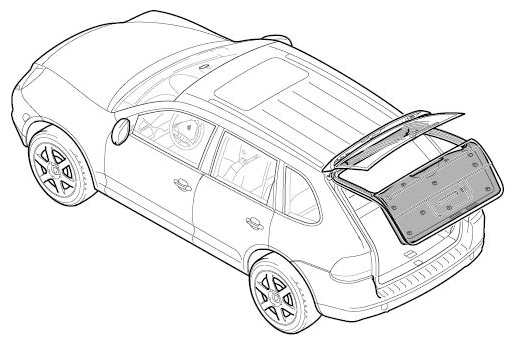

Fig 2: Identifying Lining For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

1. Open rear window.
2. Open rear lid.
3. Unclip centre window frame trim -2-  from the rear lid and from the side window frame trim -3-  at the marked positions. To do so, raise the trim slightly and lever out the clip connection -5-  using a screwdriver.

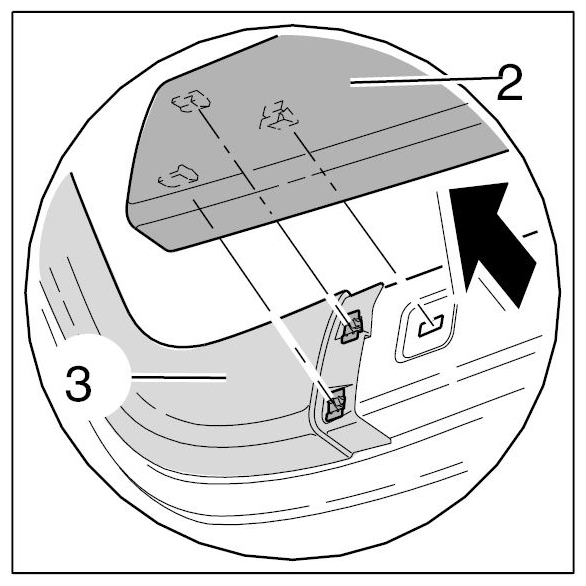

   Fig 3: Locating Centre Window Frame Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

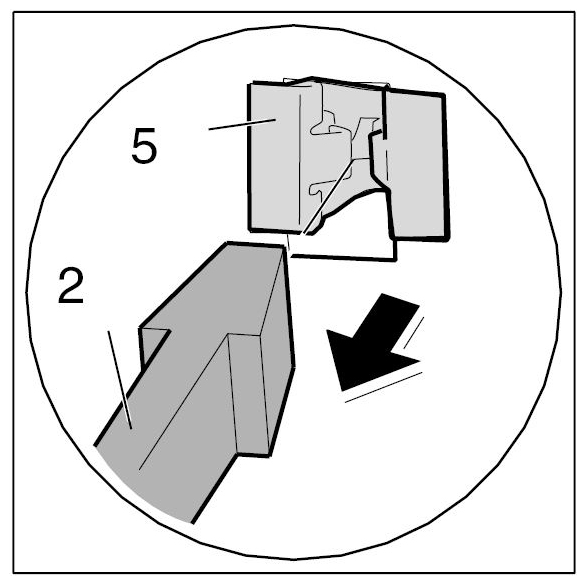

   Fig 4: Removing Centre Window Frame Trim From Clip Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Move the rear lid to the intermediate position shown → see Fig 5.
   Fig 5: Identifying Cover For Window Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Unclip side window frame trim -3-  from the rear lid and from the rear lid trim at the marked positions -1-  . To do so, raise the trim slightly and lever out the clip connection using a screwdriver.

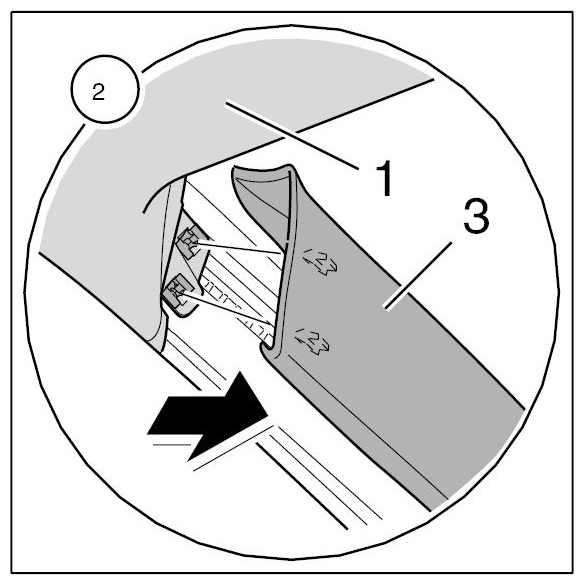

   Fig 6: Locating Side Window Frame Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Close rear lid. The rear window -12-  remains open.

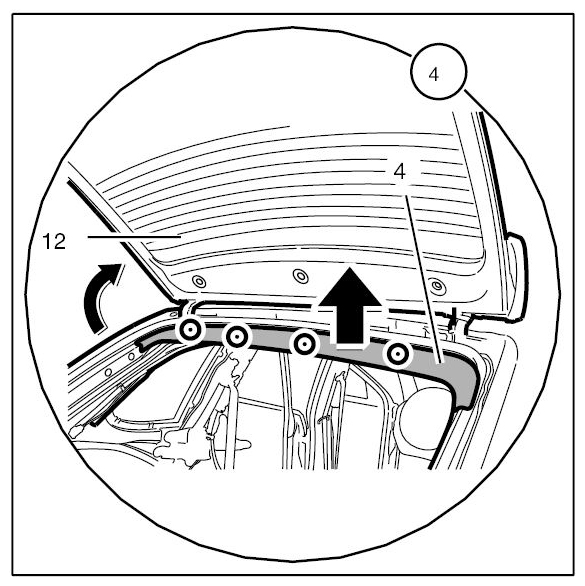

   Fig 7: Locating Rear Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Unclip top window frame trim -4-  at the places indicated (-circle marks-  ) from the rear lid. To do so, raise the trim slightly and lever out the clip connection using a screwdriver.

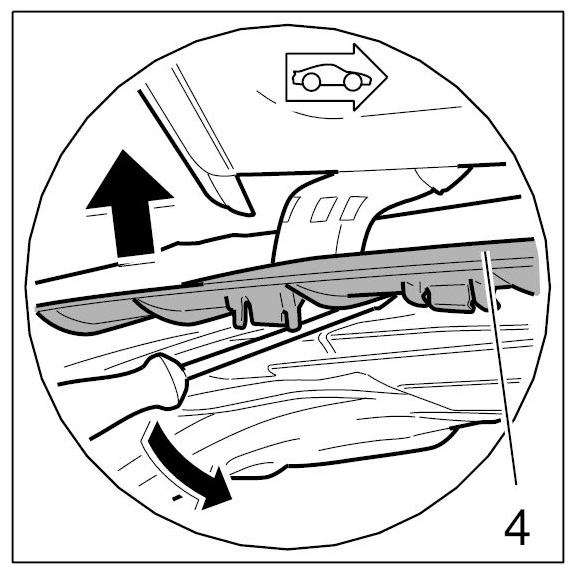

   Fig 8: Unclipping Top Window Frame Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

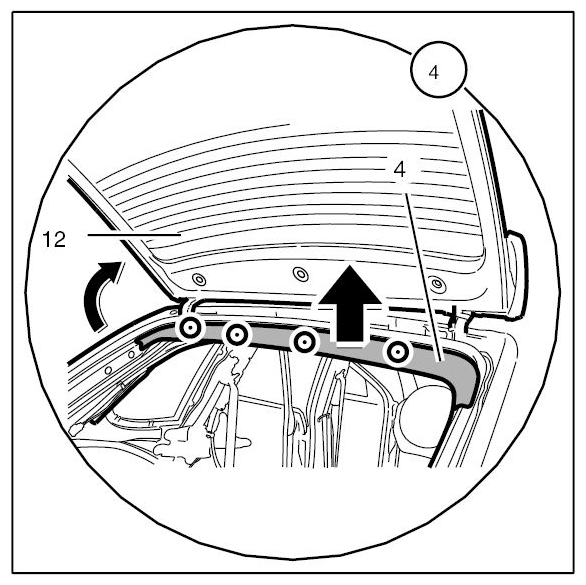

   Fig 9: Locating Rear Window
