Installing The Window Frame Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

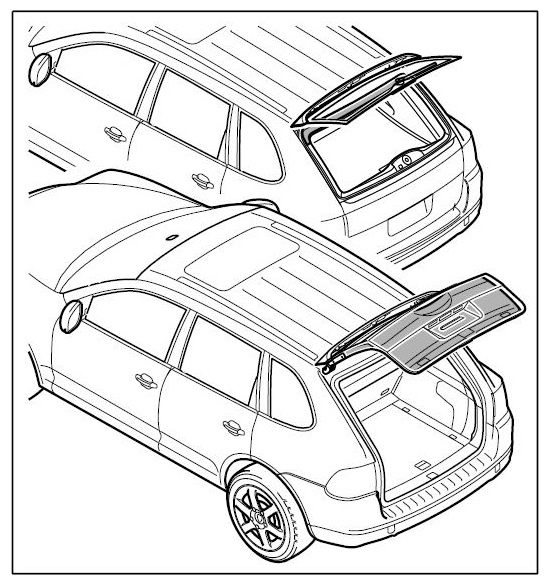

Fig 1: Identifying Window Frame Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Close rear lid. Open rear window -12- .

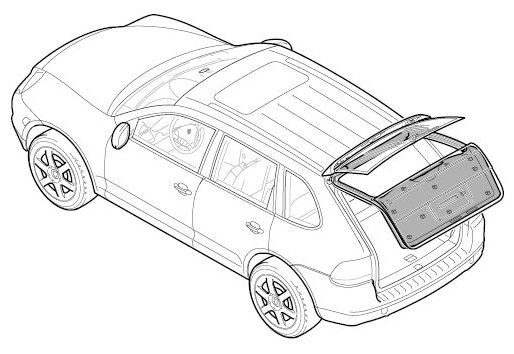

Fig 2: Opening Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

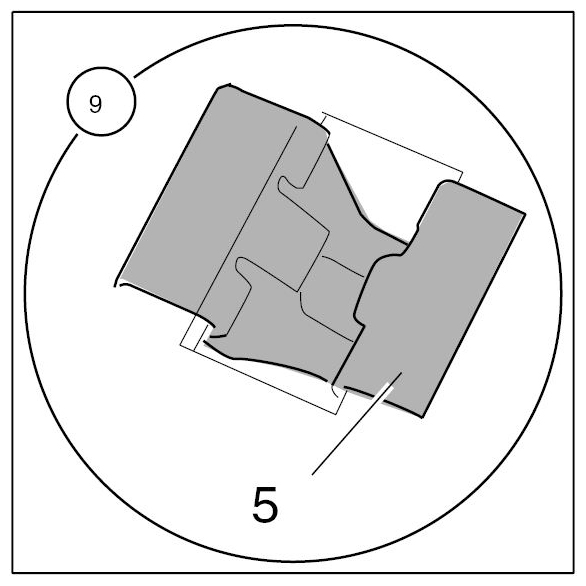

Check sheetmetal retaining clips -5- and clips for deformation; replace if necessary.

Fig 3: Identifying Sheetmetal Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

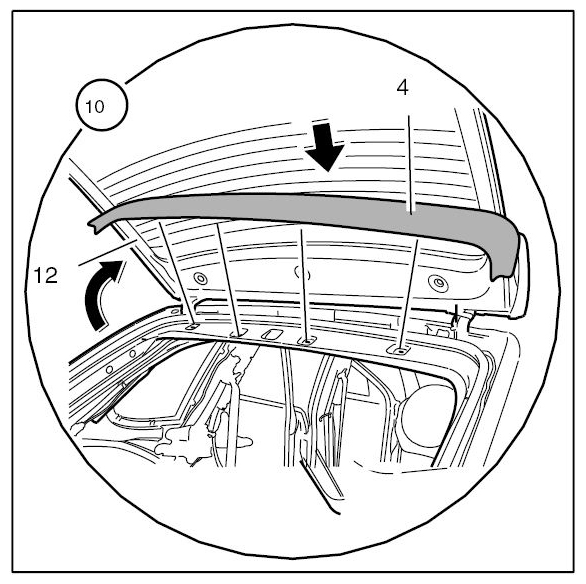

Clip top window frame trim -4- at the places indicated (-circle marks- ) on the rear lid.

Fig 4: Clipping Top Window Frame Trim At Places Indicated On Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

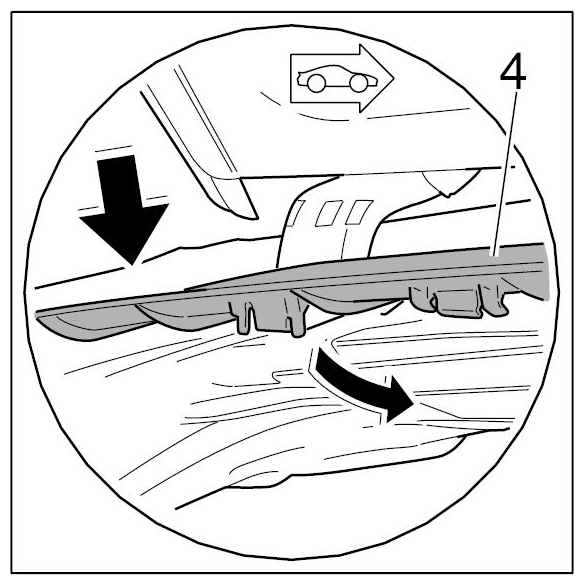

Fig 5: Locating Top Window Frame Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the rear lid to the intermediate position shown below →

Fig 6: Identifying Window Frame Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

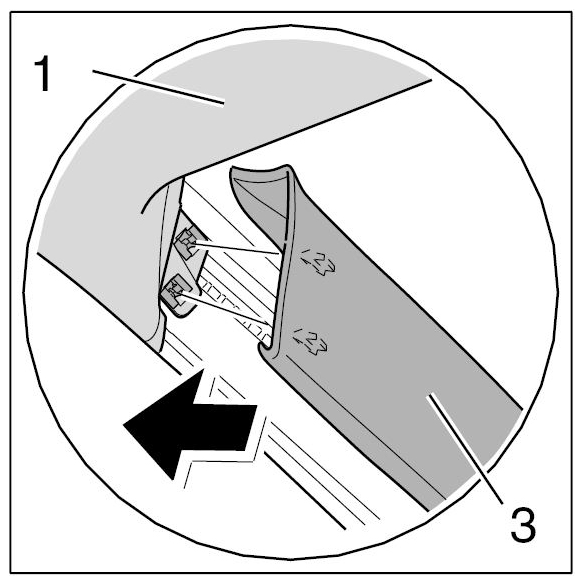

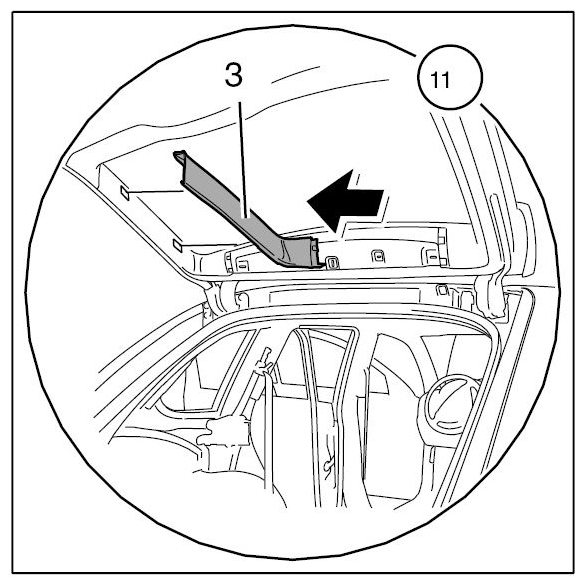

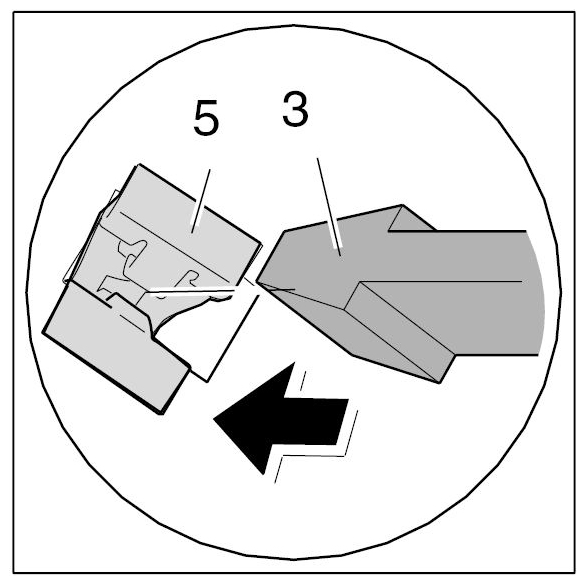

Clip the side window frame trim -3- onto the rear lid and the rear lid lining at the marked positions.

Fig 7: Clipping Side Window Frame Trim Onto Rear Lid And Rear Lid Lining At Marked Positions (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Clipping Side Window Frame Trim Onto Rear Lid And Rear Lid Lining At Marked Positions (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 9: Clipping Side Window Frame Trim Onto Rear Lid And Rear Lid Lining At Marked Positions (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

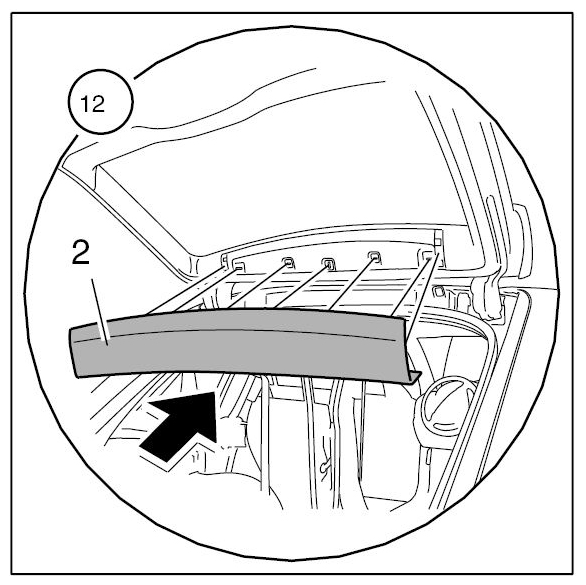

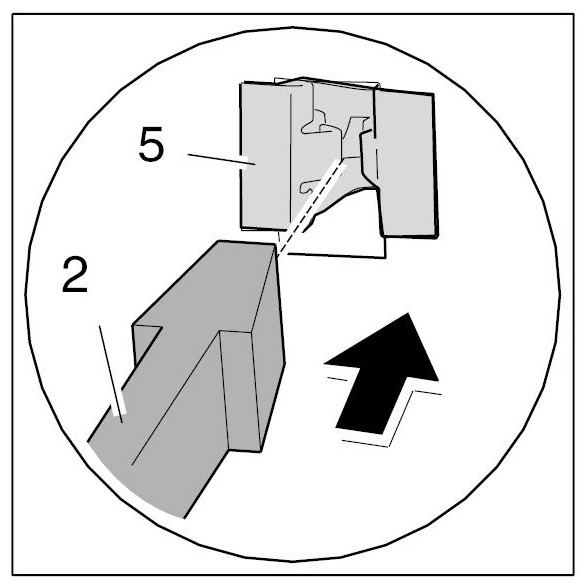

Clip centre window frame trim -2- onto the rear lid at the marked positions.

Fig 10: Clipping Centre Window Frame Trim Onto Rear Lid At Marked Positions (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 11: Clipping Centre Window Frame Trim Onto Rear Lid At Marked Positions (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close rear lid and rear window.
