Installing Lining For Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

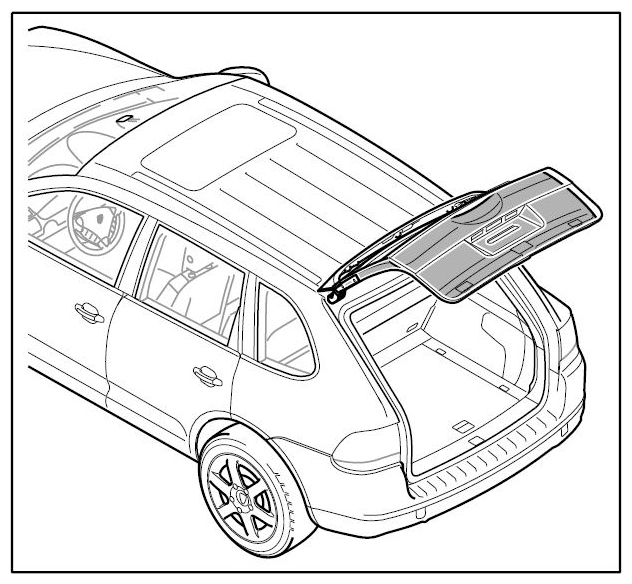

Fig 1: Identifying Lining For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

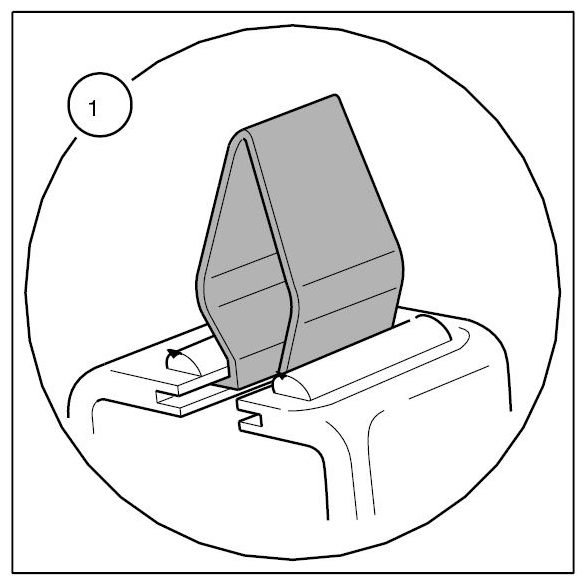

Check clips for deformation; replace if necessary.

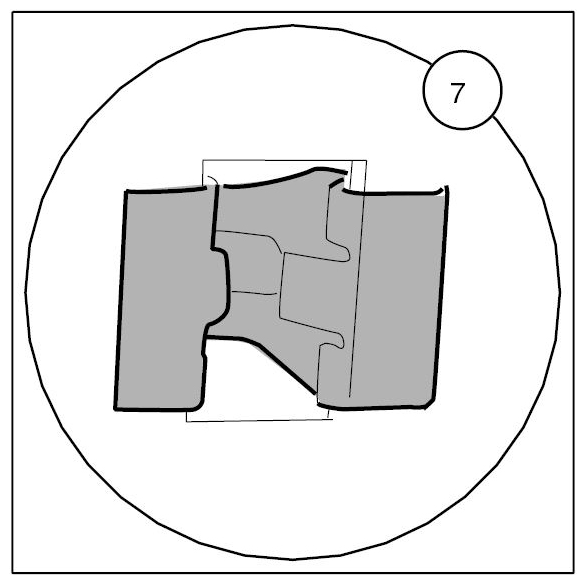

Fig 2: Checking Clips For Deformation
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

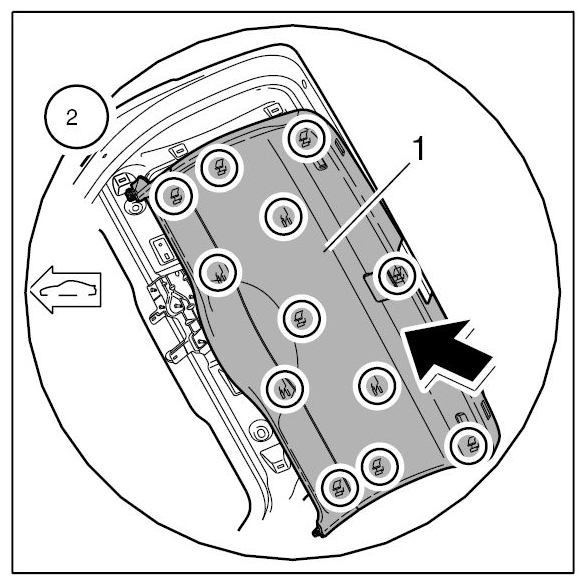

Clip the rear lid lining -1- onto the rear lid at the marked positions.

Fig 3: Locating Rear Lid Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Clipping Rear Lid Lining Onto Rear Lid At Marked Positions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert handle liner -9- into the rear lid lining -1- .

Fig 5: Inserting Handle Liner Into Rear Lid Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

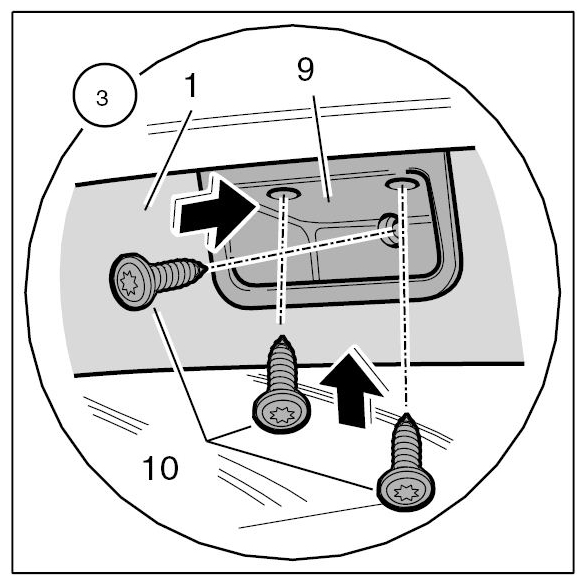

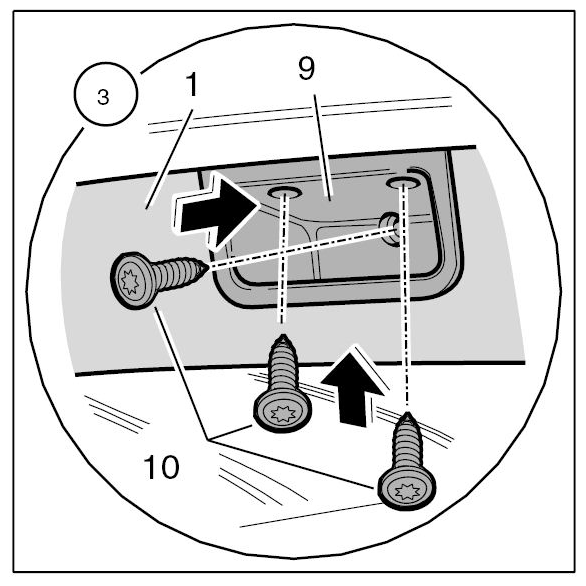

Screw in fastening screw -10- .

Fig 6: Screwing In Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

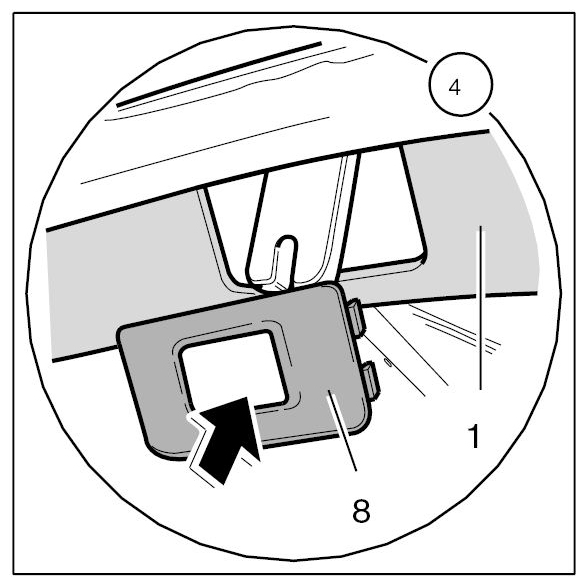

Clip lock cover -8- into the rear lid lining -1- .

Fig 7: Clipping Lock Cover Into Rear Lid Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage plug connection on the side lights -arrow- .

Fig 8: Engaging Plug Connection On Side Lights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

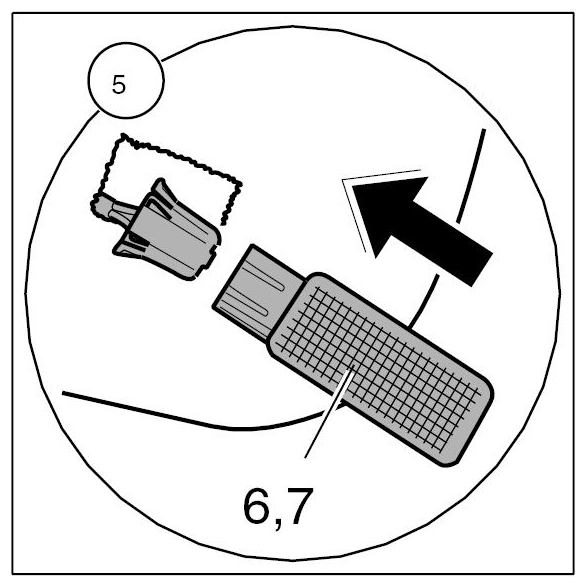

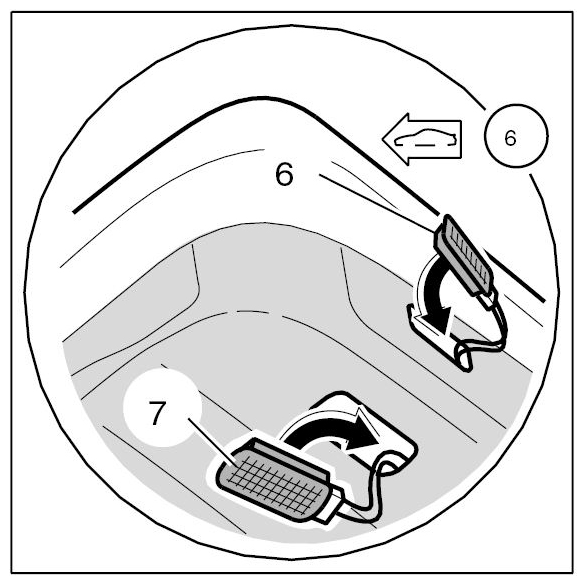

Insert side lights -6, 7- into the rear lid lining and clip into place.

Fig 9: Inserting Side Lights Into Rear Lid Lining And Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

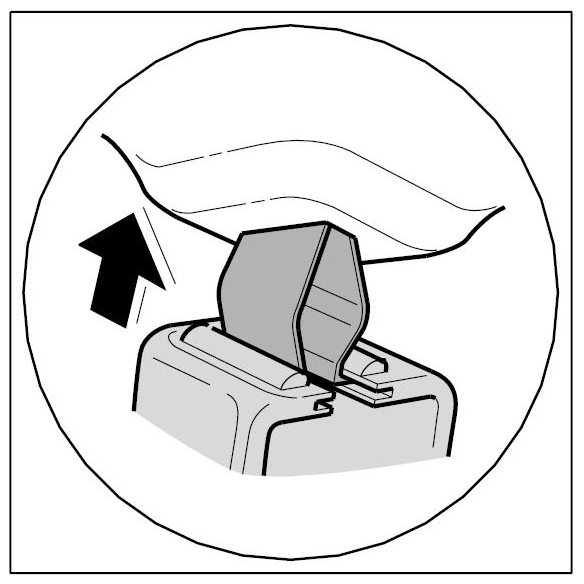

Check sheetmetal retaining clips → see Fig 10 for deformation; replace if necessary.

Fig 10: Identifying Sheetmetal Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

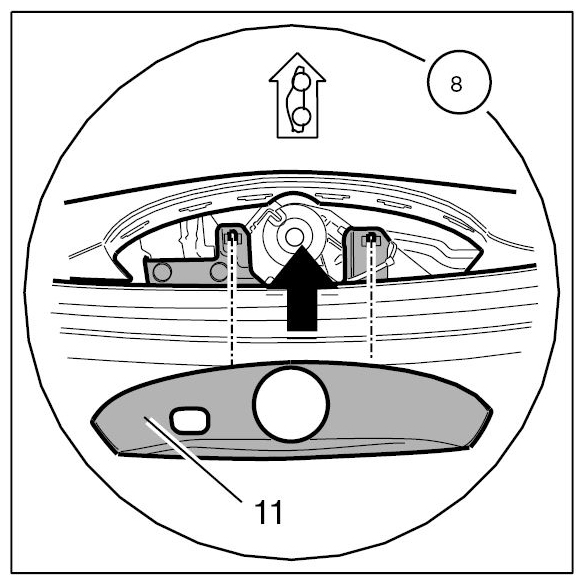

Clip cover for rear wiper motor -11- onto the rear lid at the marked positions.

Fig 11: Locating Clip Cover For Rear Wiper Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
