Installing Sliding/Tilting Roof Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

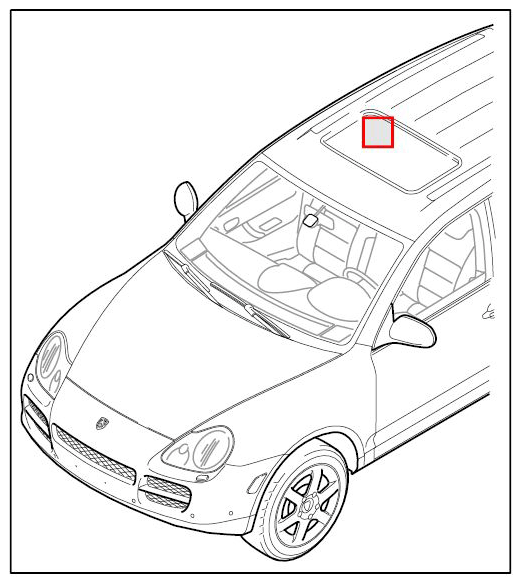

Fig 1: Identifying Sliding/Tilting Roof Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert sliding/tilting roof trim -1- and push back completely over the guide elements -3- -Arrow A- .

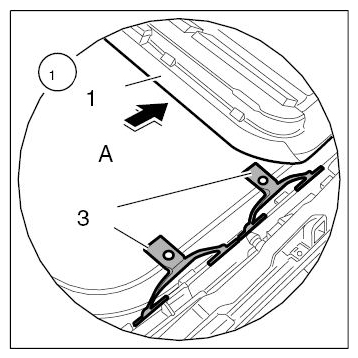

Fig 2: Inserting Sliding/Tilting Roof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the guide elements -3- -Arrow B- and push over the sliding/tilting roof trim -1- -Arrow C- . Simultaneously push the sliding/tilting roof trim -1- to the front -Arrow D- .

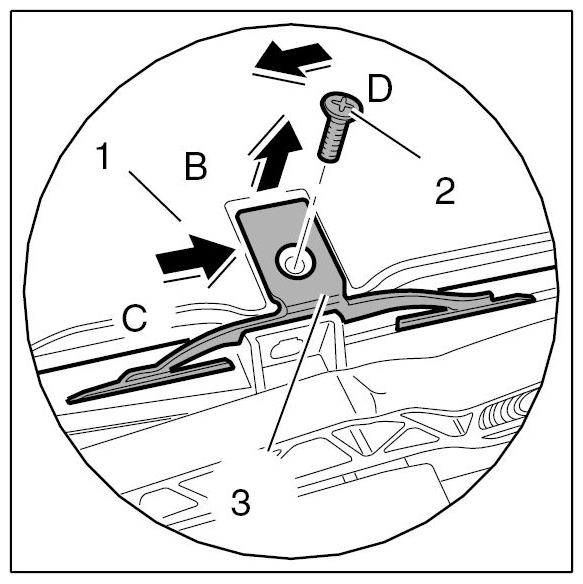

Fig 3: Lifting Guide Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

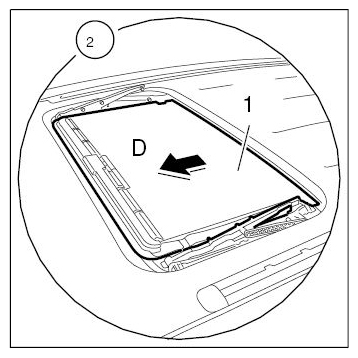

Fig 4: Locating Sliding/Tilting Roof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -2- on both sides at the guide elements -3- .

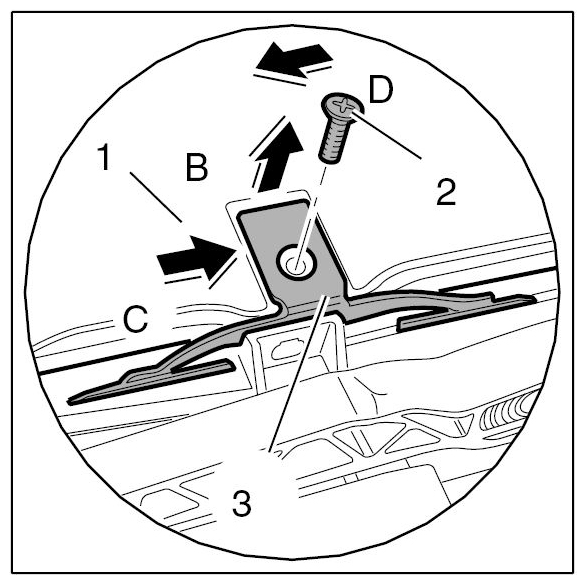

Fig 5: Locating Guide Elements And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Opening sliding/tilting roof trim
Install sliding roof cover → Installing Sliding/Tilting Roof Trim
