Installing Headliner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

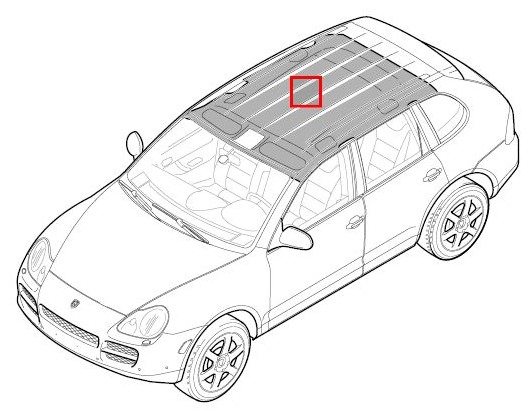

Fig 1: Overview Of Headliner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check fastening clips -14- of headliner for deformation, and replace if necessary.

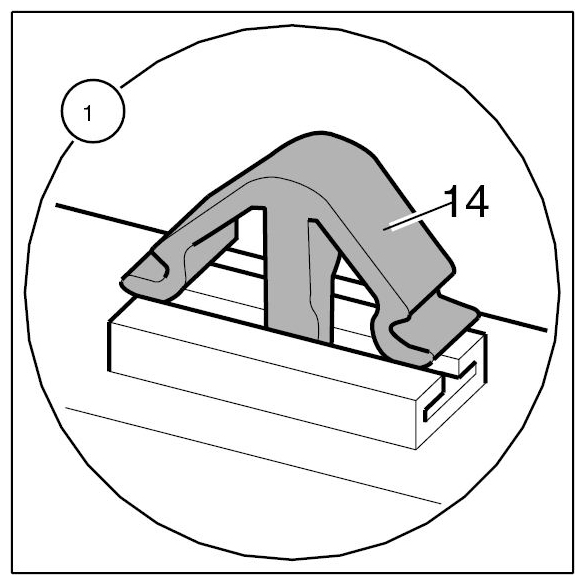

Fig 2: Identifying Fastening Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide headliner -1- into the vehicle through tailgate opening and position at roof frame.

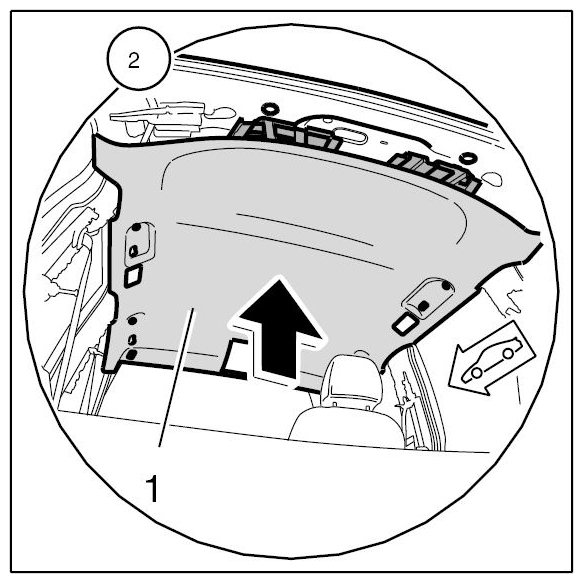

Fig 3: Positioning Guide Headliner At Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip fastening part for roof liner -12- into the bodyshell -13- at the back.

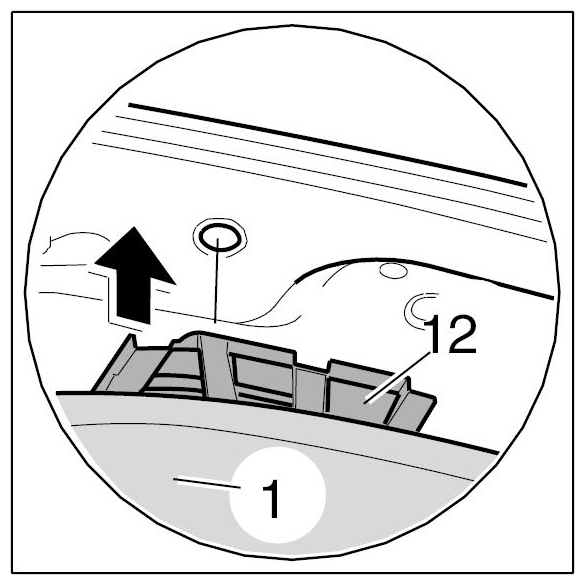

Fig 4: Inserting Roof Liner Into Bodyshell (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

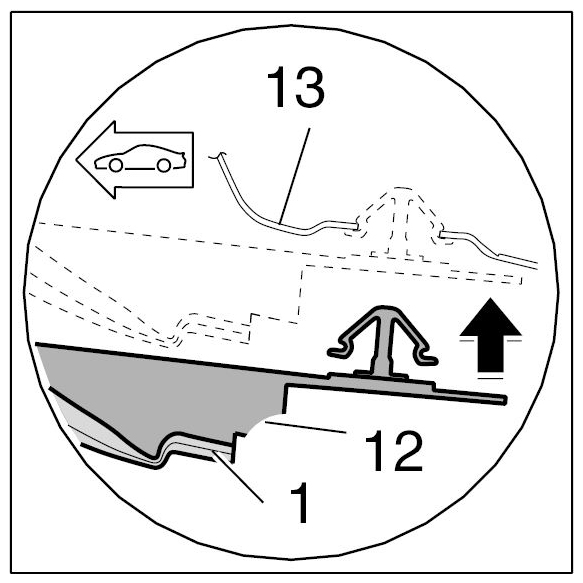

Fig 5: Inserting Roof Liner Into Bodyshell (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

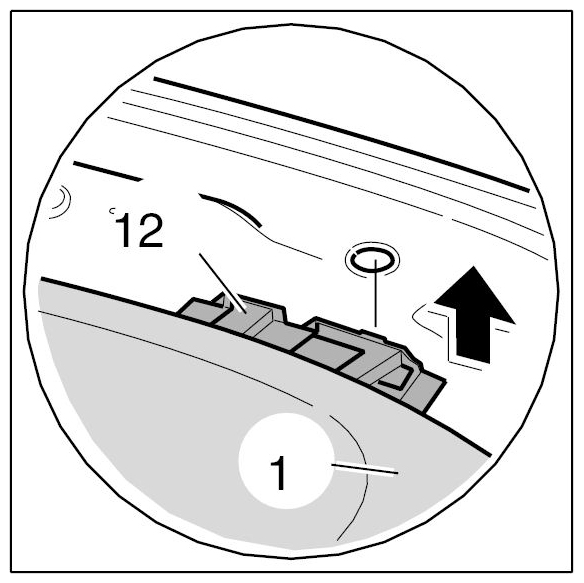

Fig 6: Inserting Roof Liner Into Bodyshell (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection for roof wire harness -10, 11- .

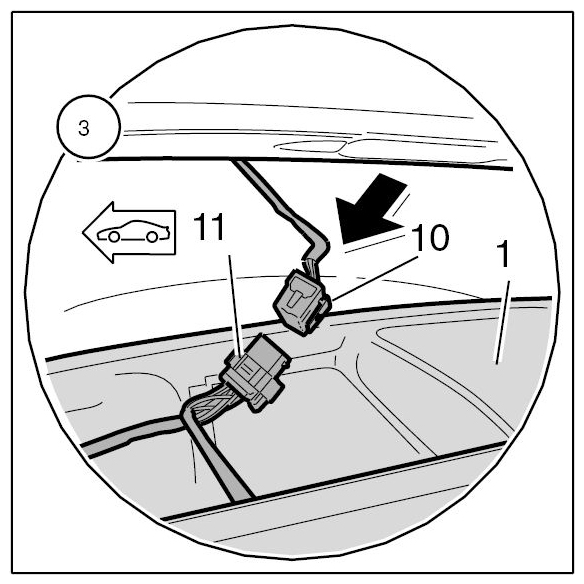

Fig 7: Connecting Plug Connection For Roof Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold up headliner -1- at front edge.

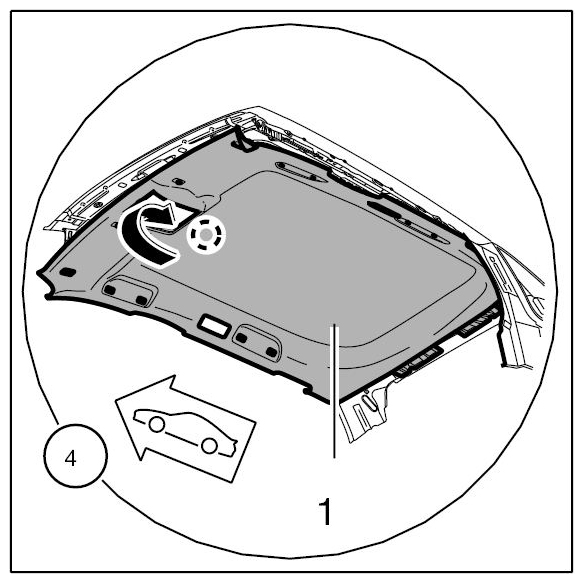

Fig 8: Folding Up Headliner At Front Edge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in new fastening screw -8- and tighten to the specified tightening torque. → Tightening torque: 9 Nm (6.5 ft lbs.)

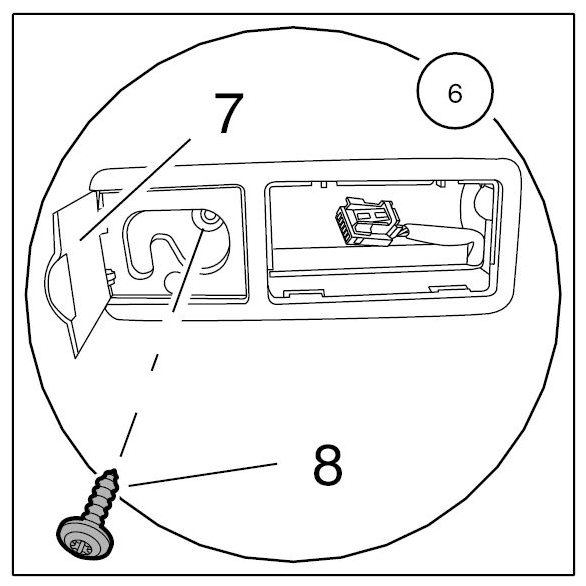

Fig 9: Identifying Close Cover And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close cover -7- .

Fig 10: Identifying Close Cover And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Additional assembly operations must be performed on vehicles with sunroof or roof assembly. → Installing Roof Lining
