Installing Headliner - Vehicles With Roof Assembly

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

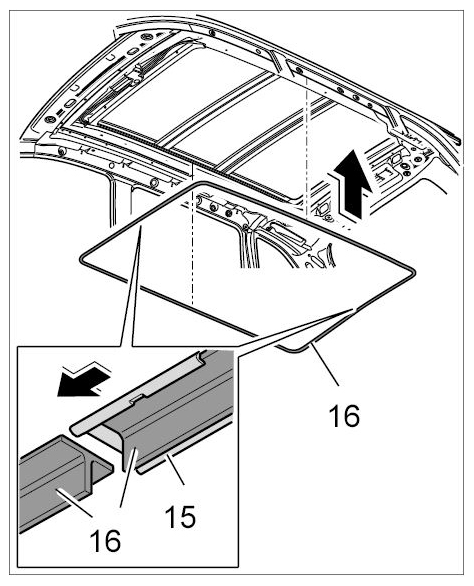

Insert both sections of the frame -16- in the roof assembly cutout and connect by moving the clamps -15- .

Fig 1: Inserting Sections Of Frame In Roof Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Centre the clamps -15- in the middle on the gap between both frames -16- .

  Fig 2: Adjusting Clamps In Middle On Gap Between Both Frames
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check fastening clips -14- of headliner for deformation, replace if necessary.

Fig 3: Locating Fastening Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

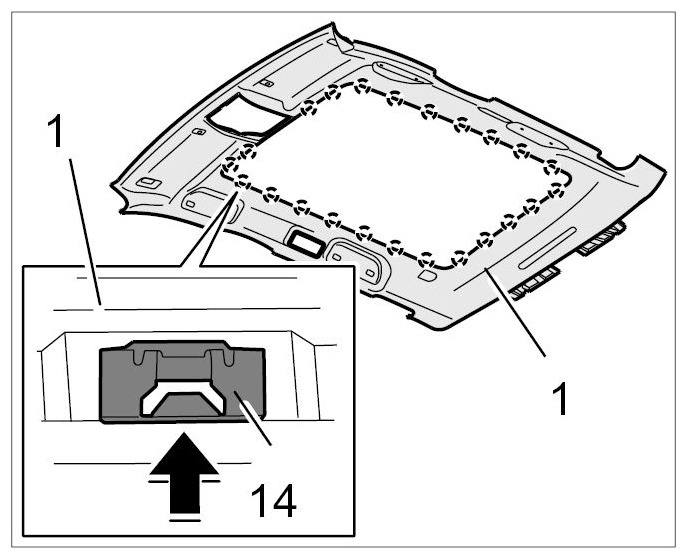

Clip in headliner -1- at roof assembly cut-out -circle marks- using fastening clips -14- .
