Disassembling Front Roof Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

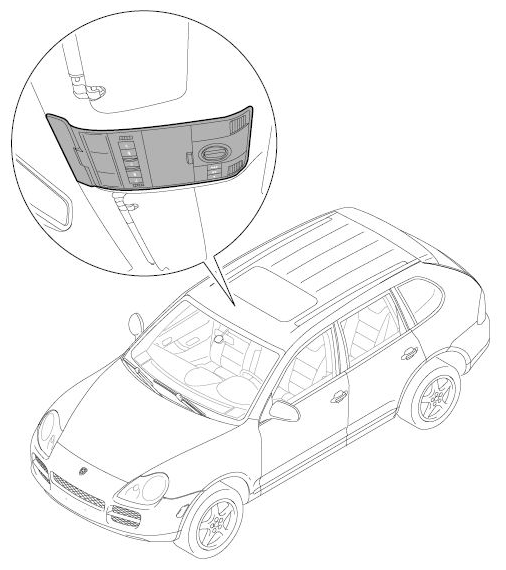

Fig 1: Overview Of Front Roof Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove front roof console. → Removing Switch For Sliding Roof

Information

The repair description relates to a fully equipped roof console.

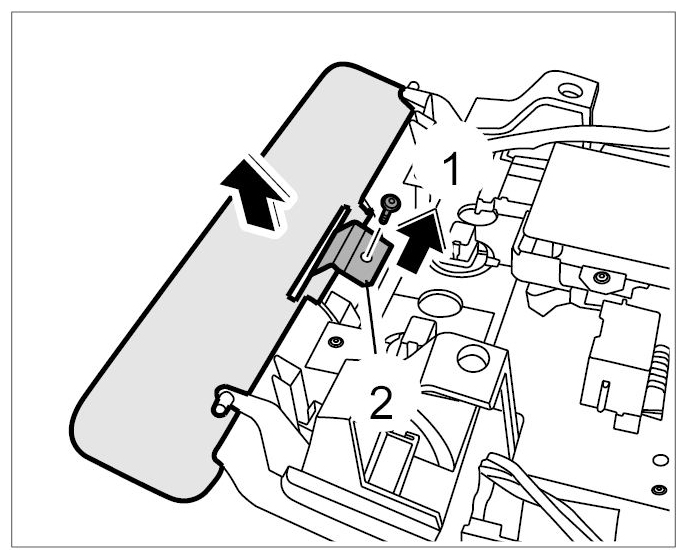

Unscrew fastening screw -1- and take out the sun visor along with the support -2- (-arrow- ).

Fig 2: Removing Sun Visor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock connector on garage door opener control unit -arrows A- and pull it off -arrow B- .

Fig 3: Unlocking Connector On Garage Door Opener Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

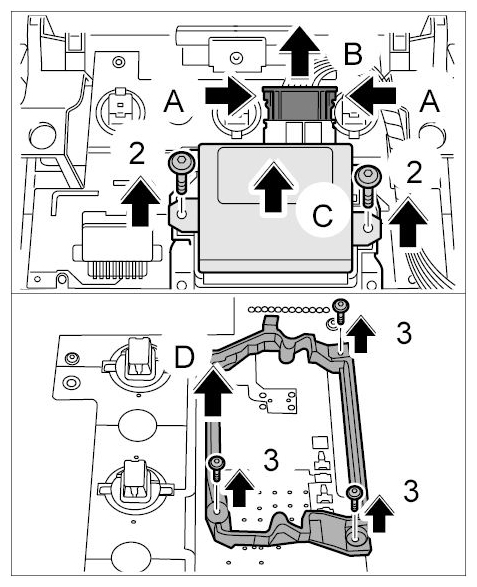

Unscrew the two fastening screws -2- and remove the control unit -arrow C- .

Fig 4: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screws -3- and take out the support -arrow D- .

Fig 5: Removing Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only if replacing the printed circuit board

  Fig 6: Turning Sockets Of Bulbs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

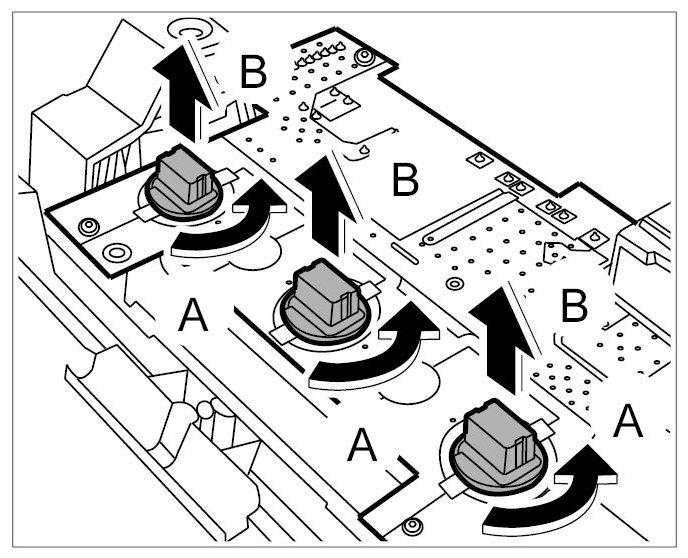

Turn the sockets of the bulbs for interior lighting to the left -arrow A- and remove them -arrow B- .

Fig 7: Removing Sockets Of Bulbs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

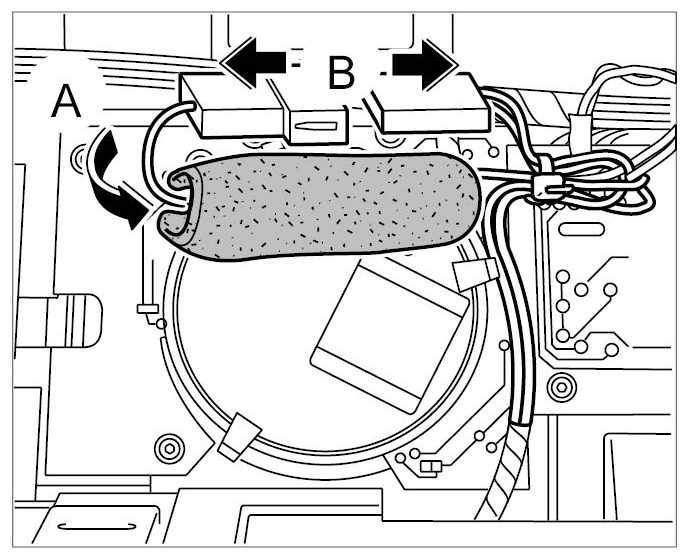

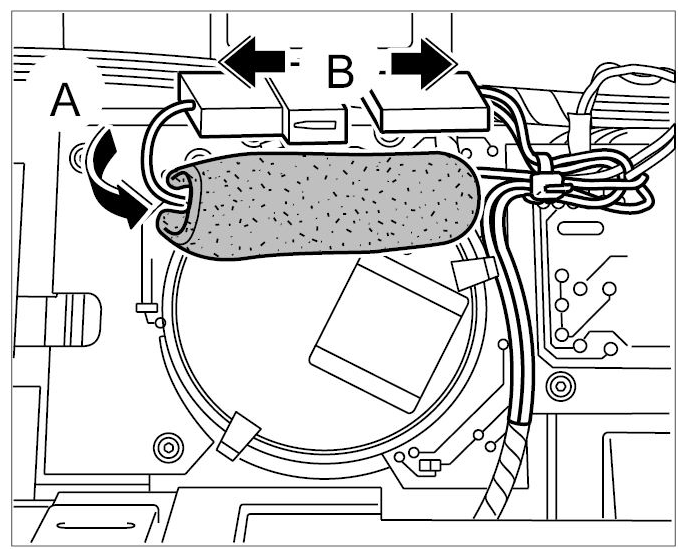

Pull the piece of plastic foam off the plug connection -arrow A- .

Fig 8: Pulling Piece Of Plastic Foam Off Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection -arrows B- .

Fig 9: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

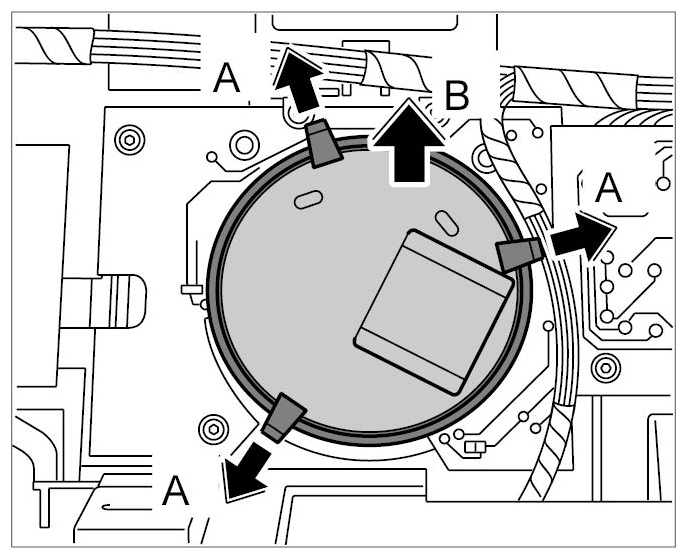

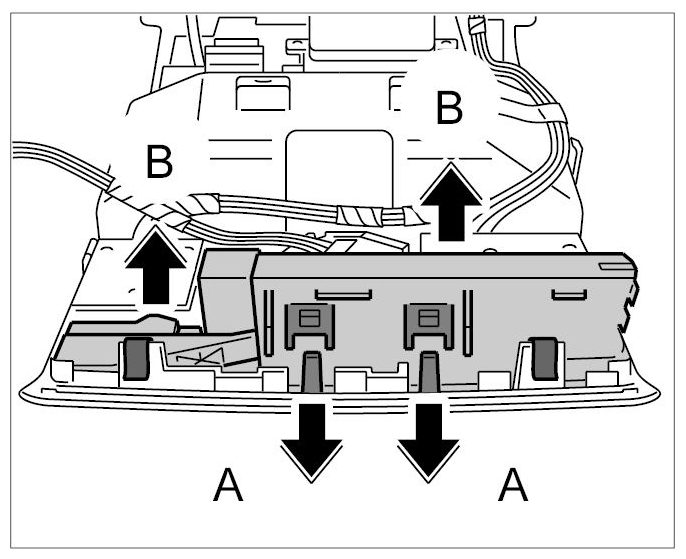

Carefully pull the three locking tabs -A- apart and pull the switch up and out -B- .

Fig 10: Pulling Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release sensor for interior monitoring -arrows A- and remove it from the roof console -arrows B- .

Fig 11: Removing Roof Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

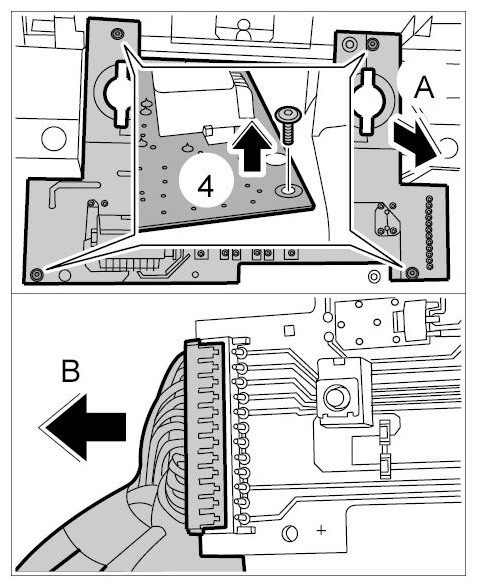

Unscrew the four fastening screws -4- and remove printed circuit board for interior lighting -arrow- .

Fig 12: Removing Printed Circuit Board For Interior Lighting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully pull the connector off the printed circuit board -arrow B- .

Fig 13: Pulling Connector Off Printed Circuit Board
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

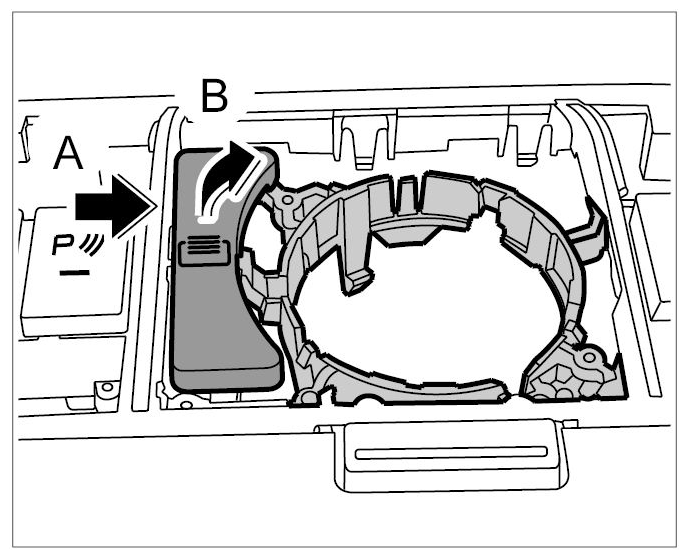

Press in the two clips -arrows A- and press the reading light out in a downward direction -arrow B- .

Fig 14: Pressing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the microphone holder using a small screwdriver -arrows A- and remove the microphone -arrow B- .

Fig 15: Removing Microphone
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the three fastening screws -5- .

Fig 16: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the printed circuit board -arrow A- and pull the connector off the printed circuit board (P- & SOS button) -arrow B- .

Fig 17: Turning Printed Circuit Board
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

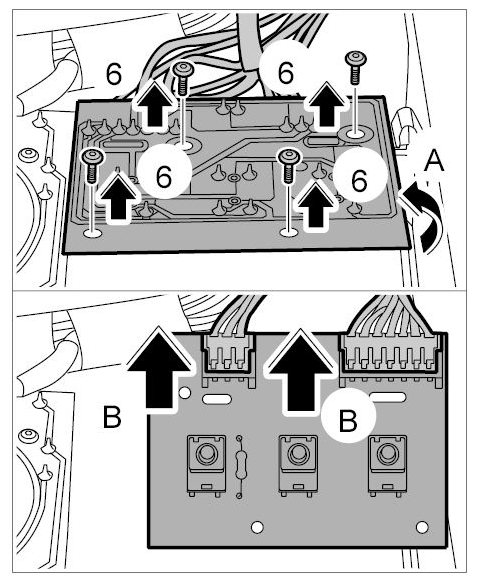

Unscrew the four fastening screws -6- .

Fig 18: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the printed circuit board (garage door opener) -arrow A- and pull the two connectors off the printed circuit board -arrows B- .

Fig 19: Turning Printed Circuit Board
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

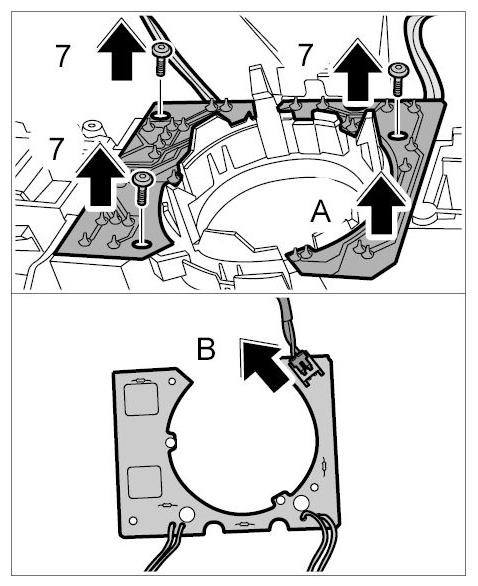

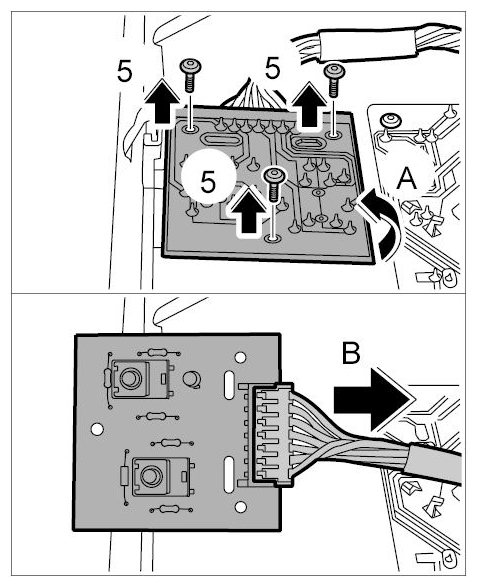

Unscrew the three fastening screws -7- .

Fig 20: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the printed circuit board (sun blind) -arrow A- and pull off the connector -arrow B- .

Fig 21: Removing Printed Circuit Board (Sun Blind)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

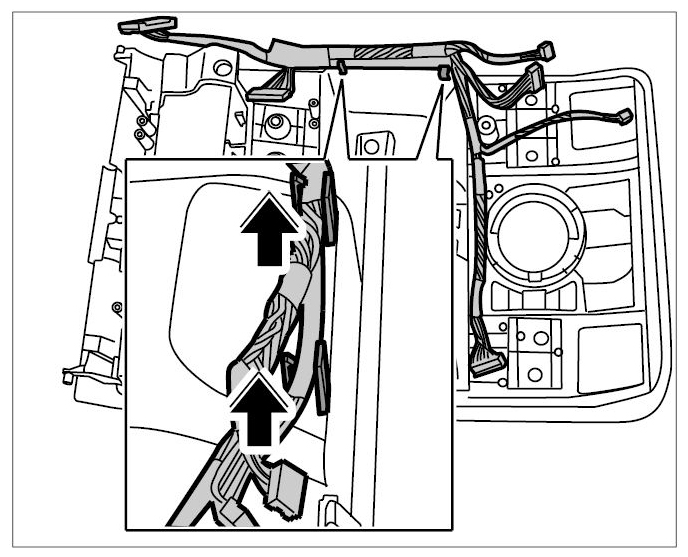

Remove the wiring harness from the brackets -arrows- .

Fig 22: Removing Wiring Harness From Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

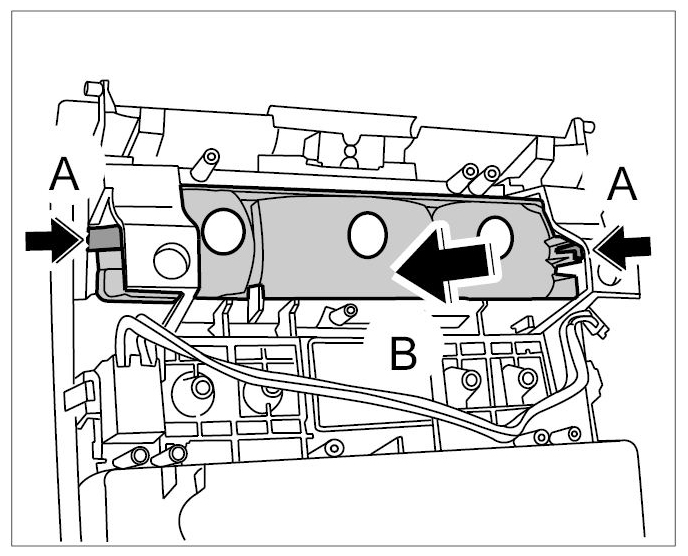

Release the cover -arrows A- and unfold it downwards -arrow B- .

Fig 23: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the lighting unit -arrow C- and press it down and out -arrow D- .

Fig 24: Removing Lighting Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

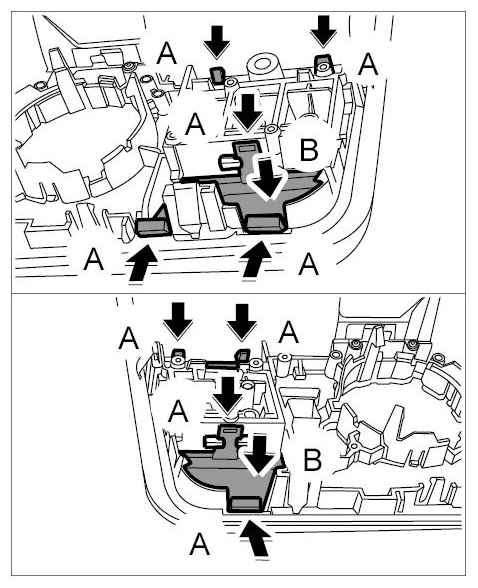

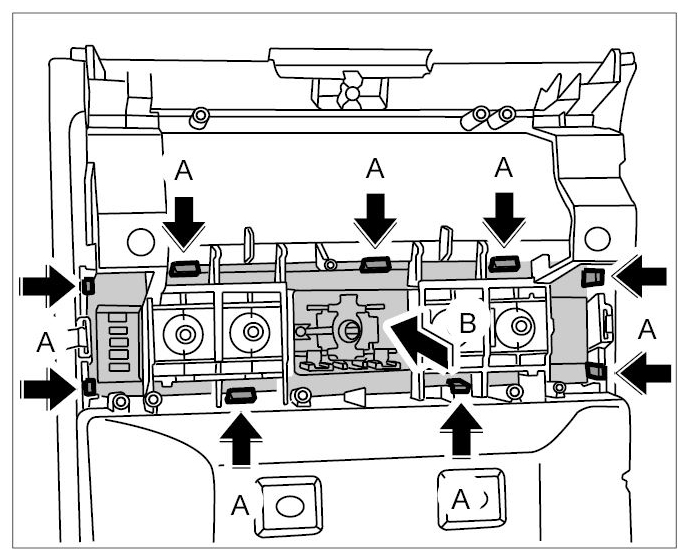

Release the nine locking tabs -arrows A- and press the two covers down and out -arrows B- .

Fig 25: Removing Nine Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the nine locking tabs -arrows A- and carefully press the cover down and out -arrow B- .

Fig 26: Removing Nine Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

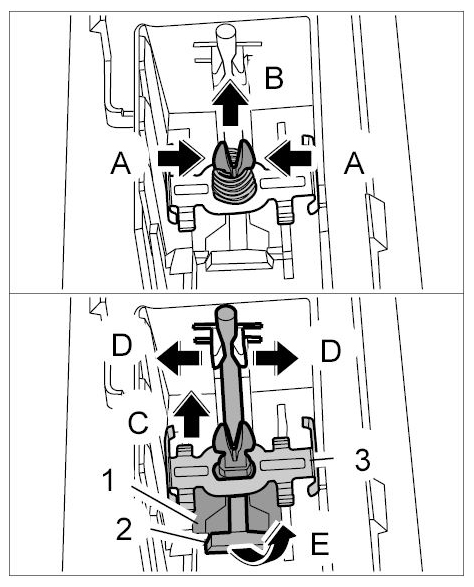

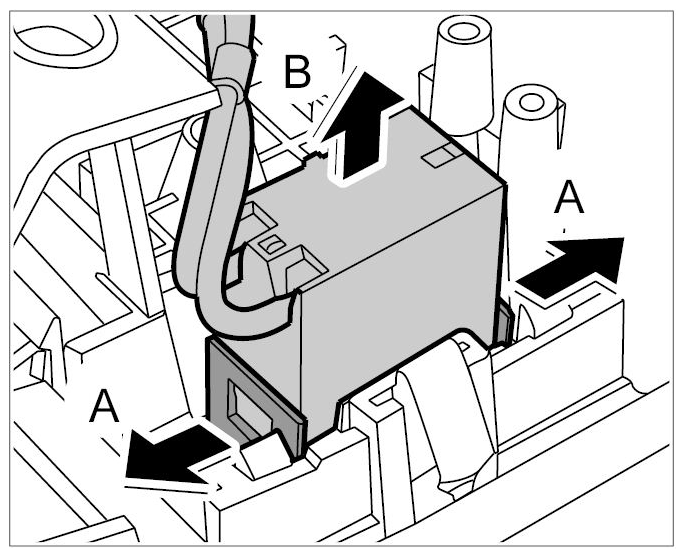

Press the clip together -arrows A- and carefully remove the spring -arrow B- .

Fig 27: Removing Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the contact bridge -1- (-arrow C- ).

Fig 28: Removing Contact Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

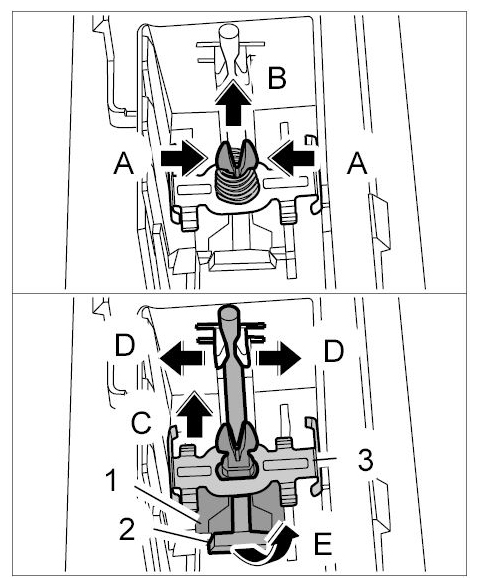

Carefully pull the holder out of the locking mechanism -2- (-arrows D- ) and pull the switch -3- down and out -arrow E- .

Fig 29: Pulling Holder Out Of Locking Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully press switch trim for sun blind to the inside -arrow A- and remove it -arrow B- .

Fig 30: Pressing Switch Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

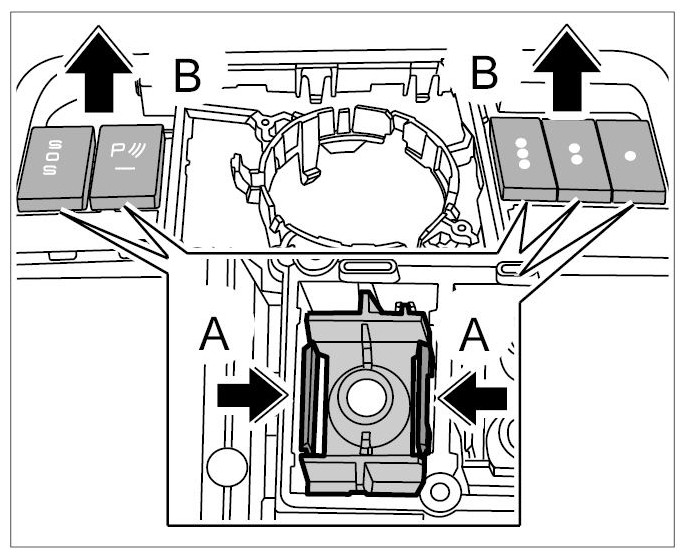

Release the switch trims -arrows A- and remove them -arrows B- .

Fig 31: Removing Switch Trims
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

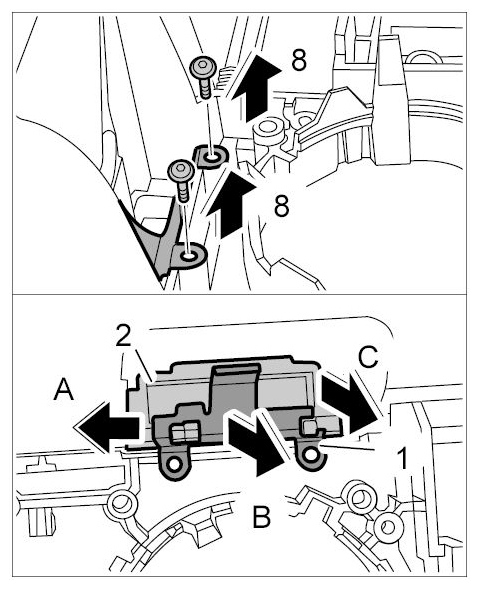

Unscrew both fastening screws -8- .

Fig 32: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move spring -1- for the push-button -2- to the left -arrow A- and remove it -arrow B- .

Fig 33: Moving Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove push-button -arrow C- .

Fig 34: Removing Push-Button
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

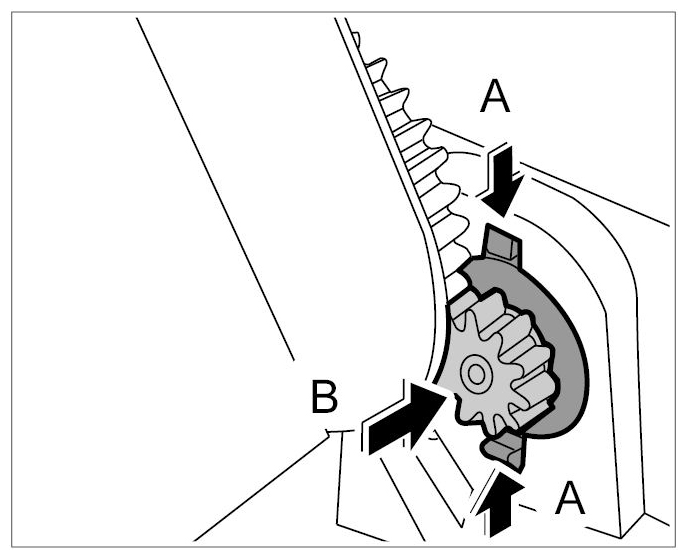

Release closing damper -arrows A- and remove it -arrow B- .

Fig 35: Removing Closing Damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

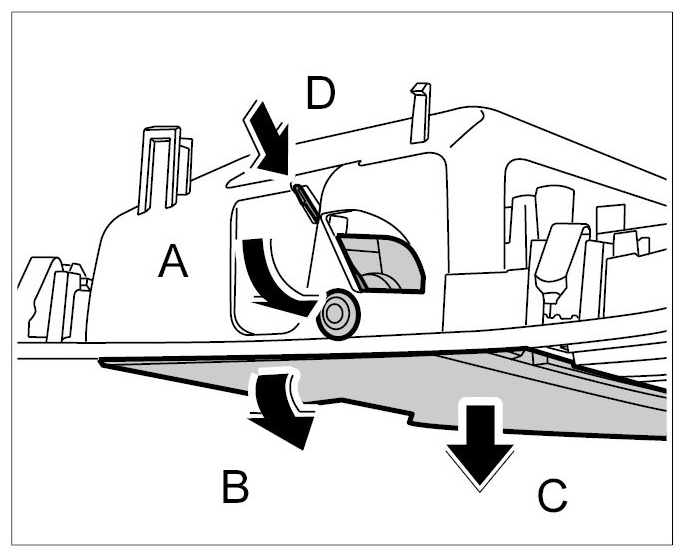

Press the right bearing pin at the edge inwards -arrow A- -arrow A- , pivot the shelf down -arrow B- and remove it -arrow C- . Push the spring through the opening at the same time -arrow D- .

Fig 36: Pressing Right Bearing Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

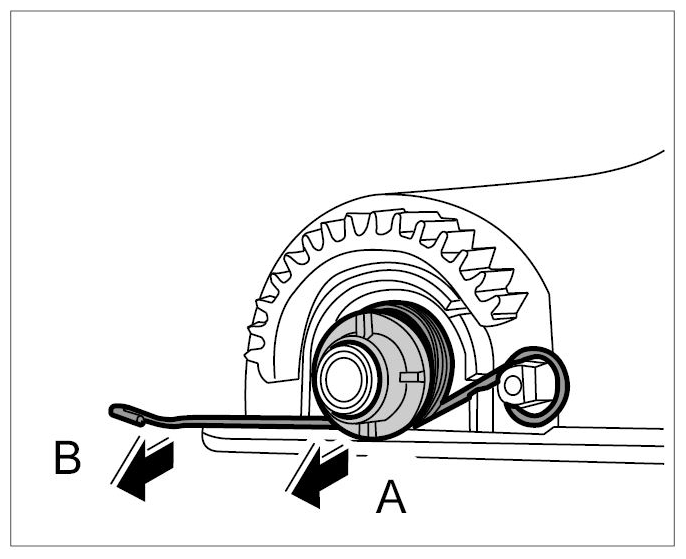

Pull off the bearing sleeve -arrow A- and remove the spring -arrow B- .

Fig 37: Pulling Off Bearing Sleeve
