Installing D-Pillar Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

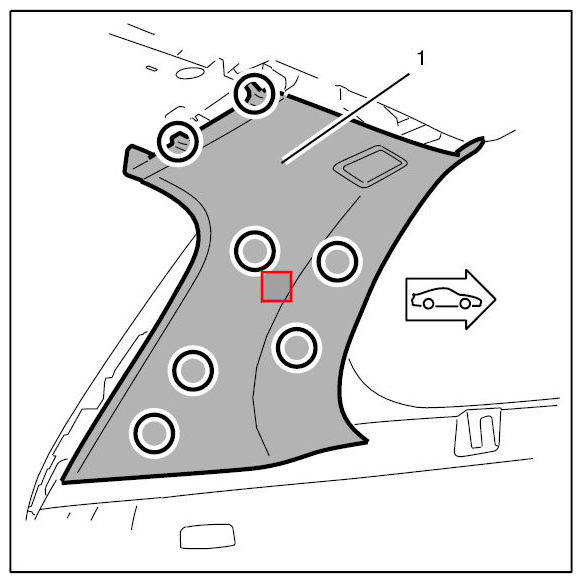

Fig 1: Identifying D-Pillar Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

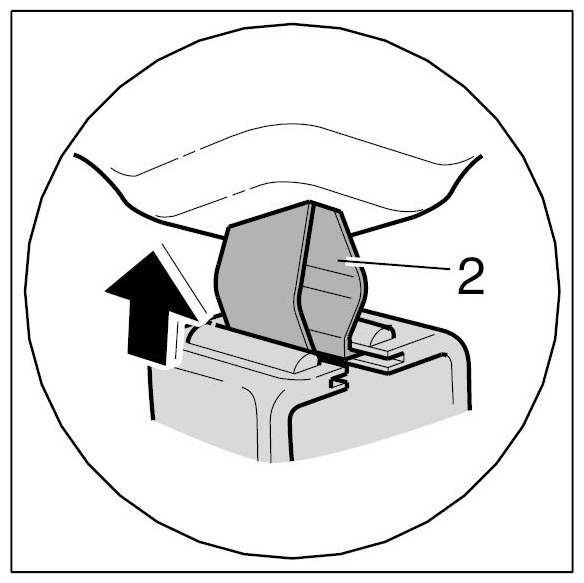

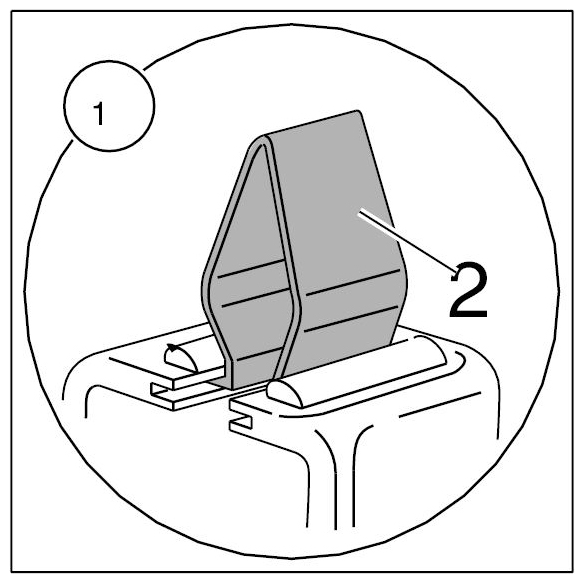

Check fastening clips -2- for deformation; replace if necessary.

Fig 2: Identifying Fastening Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

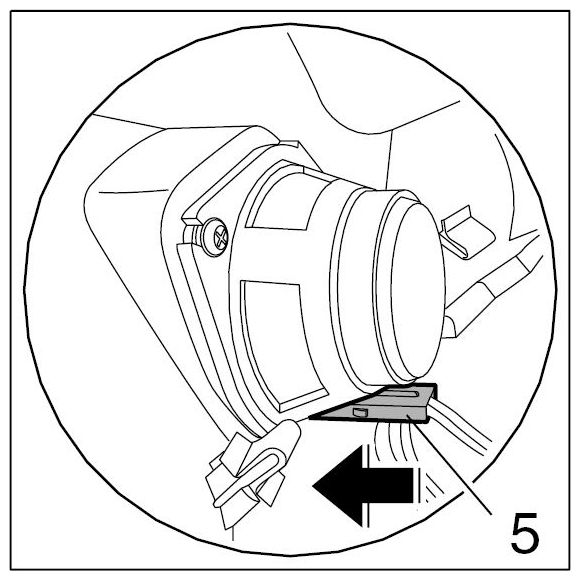

Only in vehicles with Bose sound system: Pull connector -5- away from the speaker

Fig 3: Pushing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

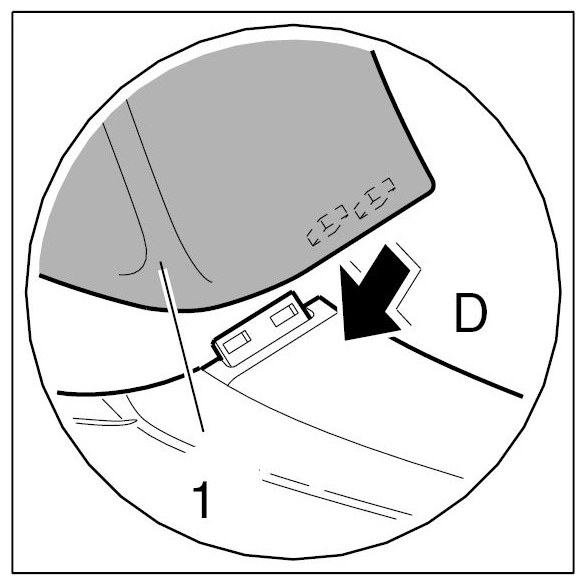

Engage D-pillar trim at connection to rear side trim -arrow D- and hook into place at front edge of D-pillar -arrow A- .

Fig 4: Engaging D-Pillar Trim At Connection To Rear Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Engaging Rear Section Of D-Pillar Trim To Rear Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

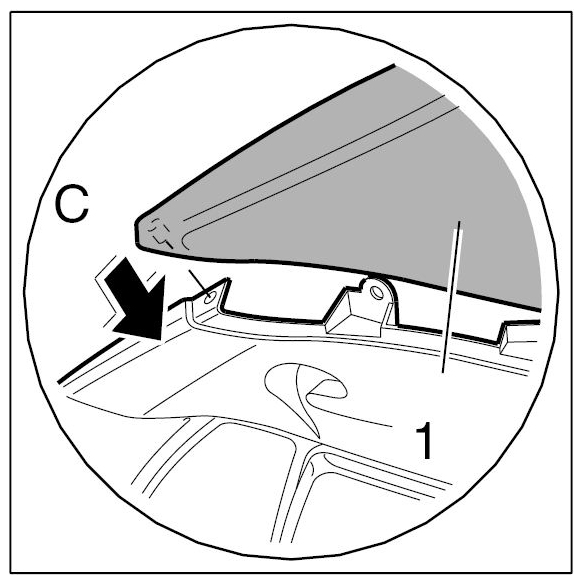

Engage rear section of D-pillar trim to rear side trim -arrow C- and hook into place at rear edge of D-pillar -arrow B- .

Fig 6: Engaging Rear Section Of D-Pillar Trim To Rear Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Hooking Into Place At Rear Edge Of D-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

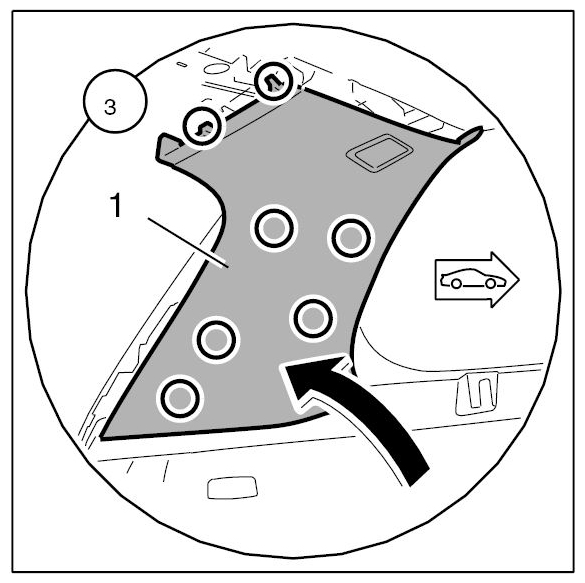

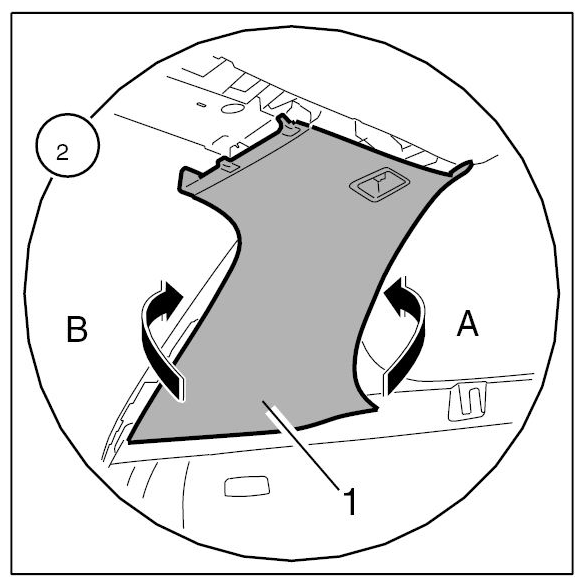

Clip D-pillar trim -1- into inside of D-pillar at the marked areas -2- .

Fig 8: Clipping D-Pillar Trim Into Inside Of D-pillar (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 9: Clipping D-Pillar Trim Into Inside Of D-pillar (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

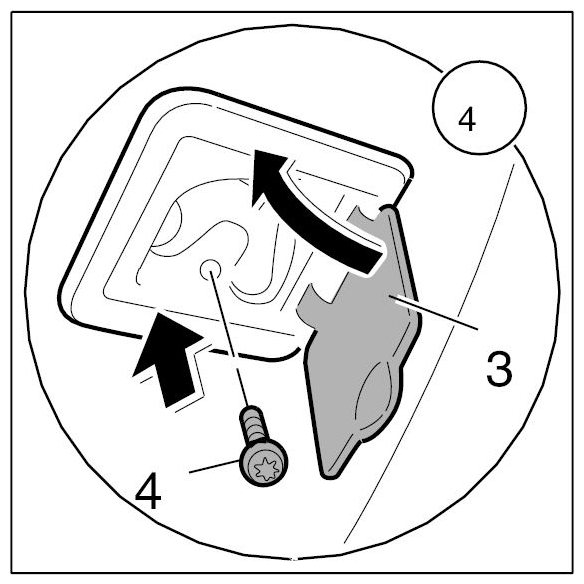

Screw in fastening screw -4- .

Fig 10: Installing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close cover for luggage compartment net partition -3- .

Fig 11: Closing Cover For Luggage Compartment Net Partition
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear roof trim panel. → Installing Rear Roof Lining
