Installing C-Pillar Trim Panel

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

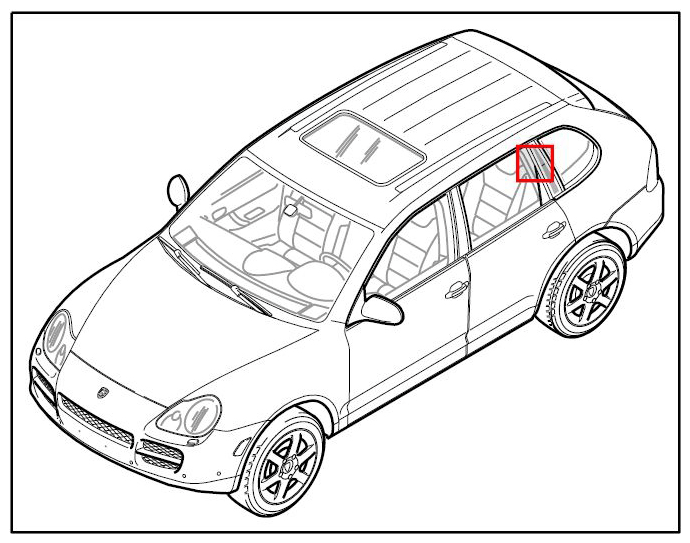

Fig 1: Identifying C-Pillar Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check fixing clips for deformation, replace if necessary.

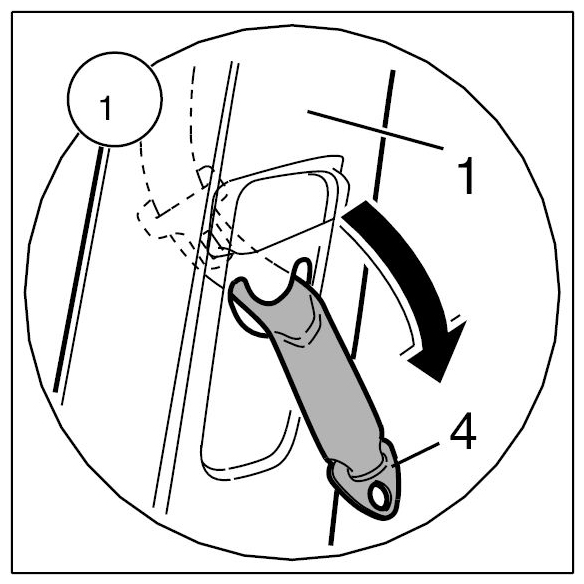

Guide belt strap -4- through slide of C-pillar trim -1- .

Fig 2: Guiding Belt Strap Through Slide Of C-Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

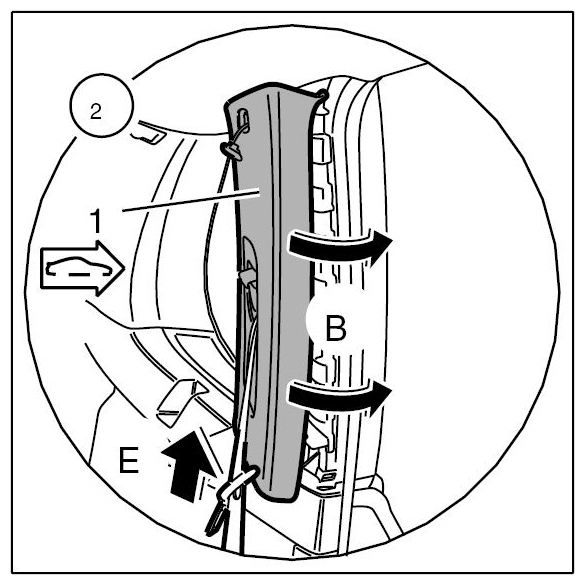

Position C-pillar trim -1- starting at the bottom -arrow E- .

Fig 3: Positioning C-Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

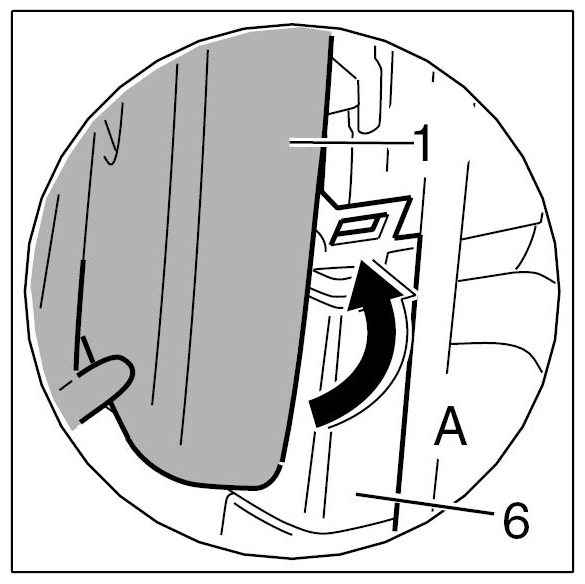

Hook C-pillar trim -1- onto deformation element -arrow A- and clip into side trim -6- at front edge -arrow B- .

Fig 4: Hooking C-Pillar Trim Onto Deformation Element (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Hooking C-Pillar Trim Onto Deformation Element (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install actuator for height adjustment of seat belt. → Installing C-Pillar Trim Panel And Release For Belt Height Adjustment

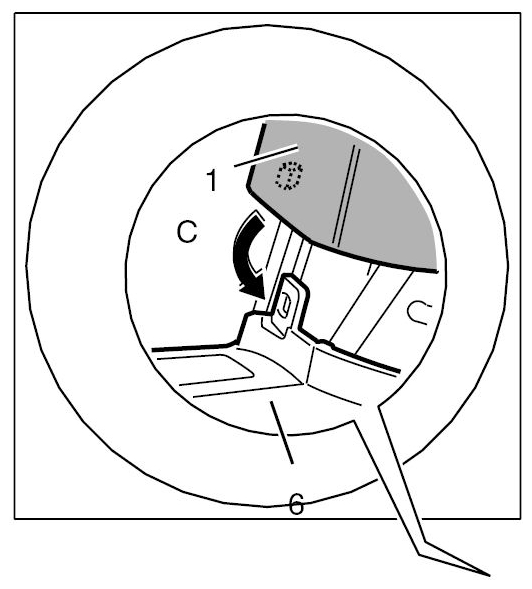

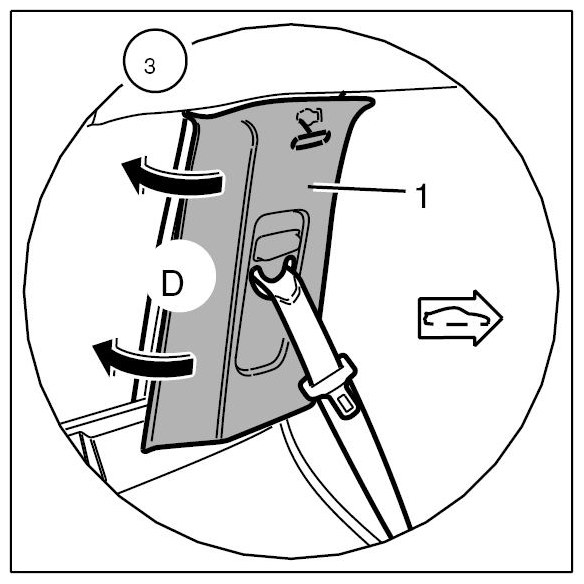

Hook C-pillar trim -1- onto deformation element -Arrow C- and clip into side trim at rear edge -Arrow D- .

Fig 6: Installing Actuator For Height Adjustment Of Seat Belt (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Installing Actuator For Height Adjustment Of Seat Belt (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw -3- and tighten to the specified tightening torque. → Tightening torque: 4.0 Nm (3.0 ft lbs.) +/-0.5 Nm (+/-0.5 ft lbs.)

Fig 8: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

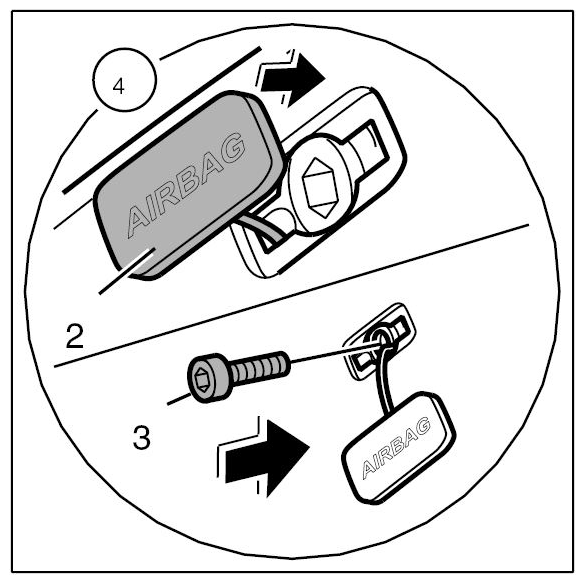

Clip cover flap -2- into the cut-out for the C-pillar trim.

Fig 9: Installing Cover Flap Into Cut-Out For C-Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

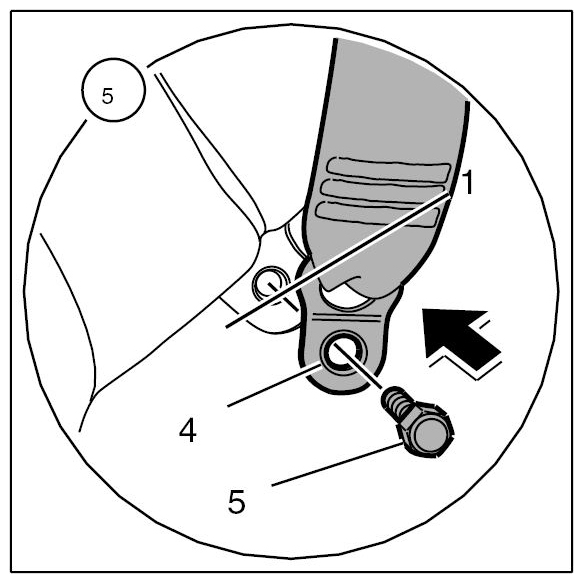

Position bottom belt fitting -4- , screw in fastening screw -5- and tighten to the specified tightening torque. → Tightening torque: 50 Nm (37 ft lbs.)+4.0 Nm (+3.0 ft lbs.)

Fig 10: Positioning Bottom Belt Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold seat cushion of rear seat back up.
