Installing B-Pillar Trim Panel: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

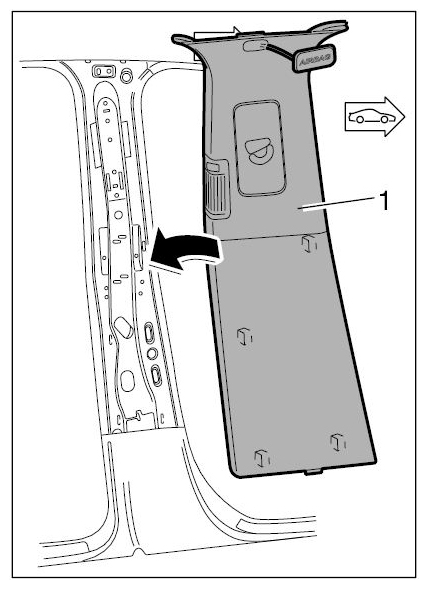

Fig 1: Installing B-Pillar Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check fixing clips.

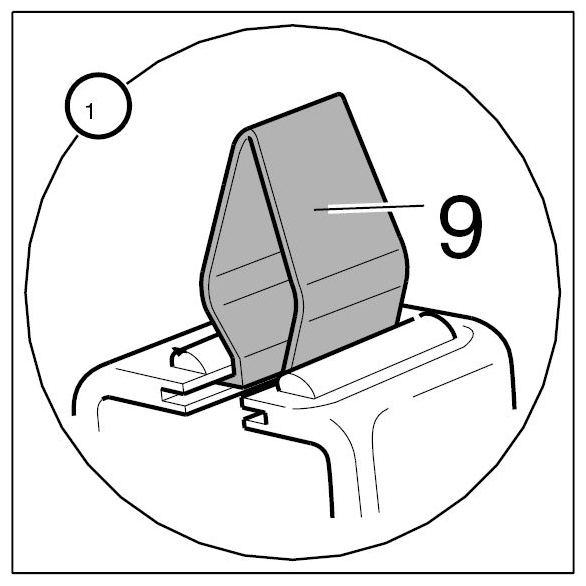

1. 1.1. Check fixing clips -9- for deformation, replace if necessary.

  Fig 2: Identifying Fixing Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

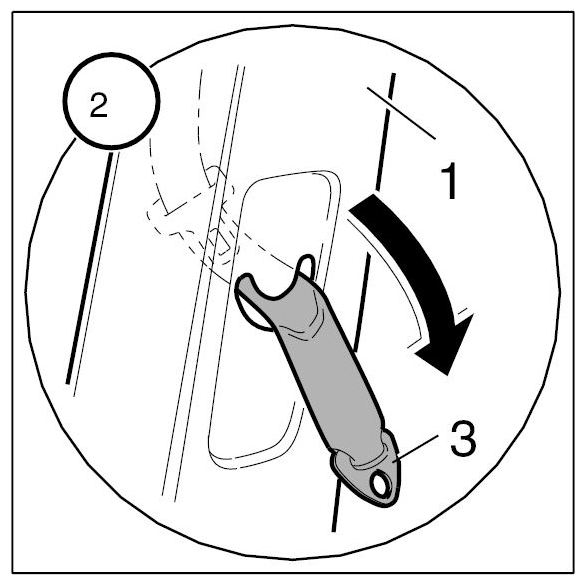

Guide belt strap through trim.
1. 2.1. Guide seat belt mount -3- through slide of B-pillar trim -1- .

  Fig 3: Guiding Seat Belt Mount Through Slide Of B-Pillar Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

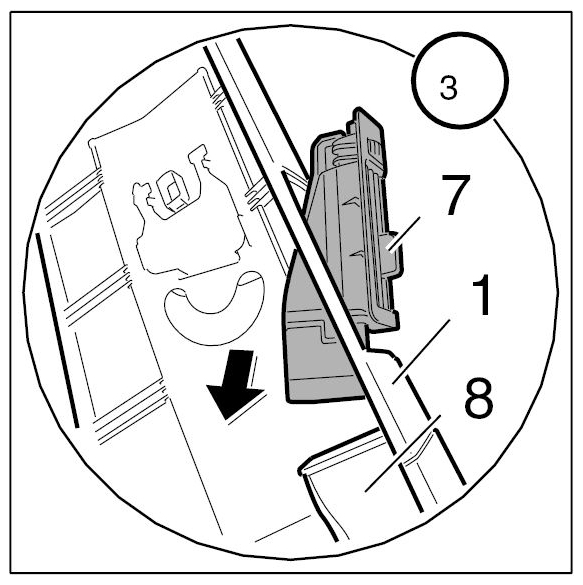

Install air vents.
1. 3.1. Guide air vent -7- into B-pillar trim -1- and clip it into place. In doing so, insert the air vent -7- into the air guide -8- .

  Fig 4: Removing Air Vent Into B-Pillar Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

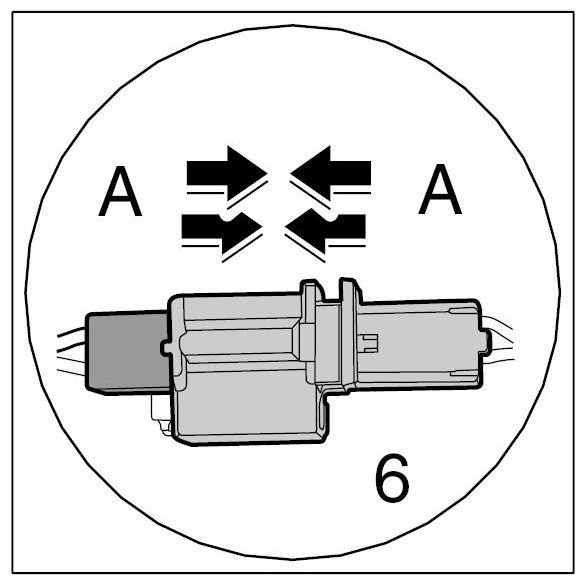

2. 3.2. Connect plug connection -6- until the locking tab engages audibly (-Arrows A- ).

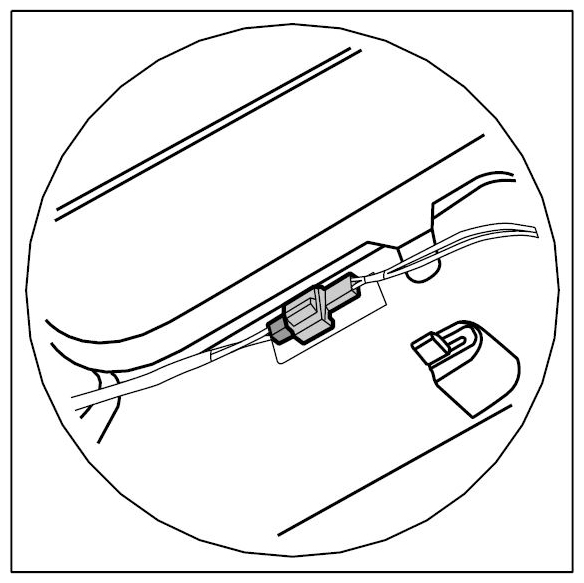

  Fig 5: Connecting Plug Connection (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Connecting Plug Connection (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

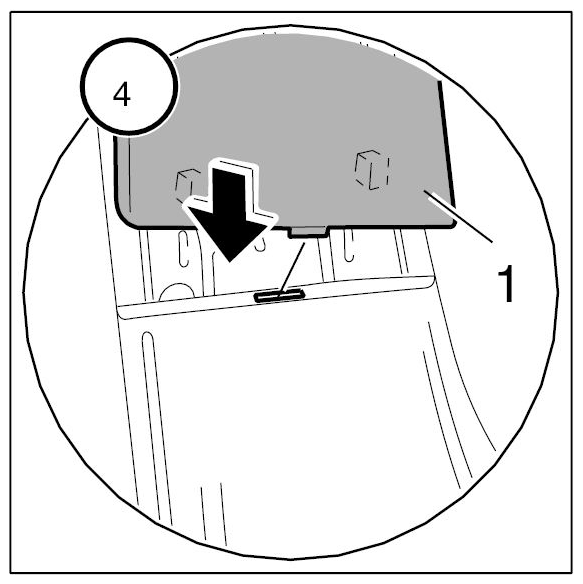

Align B-pillar trim with inner door sill trim.
1. 4.1. Position B-pillar trim -1- on the interior sill from above. Use positioning catch on B-pillar trim and guiding groove on interior sill as an installation aid.

  Fig 7: Aligning B-Pillar Trim With Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip B-pillar trim into place.

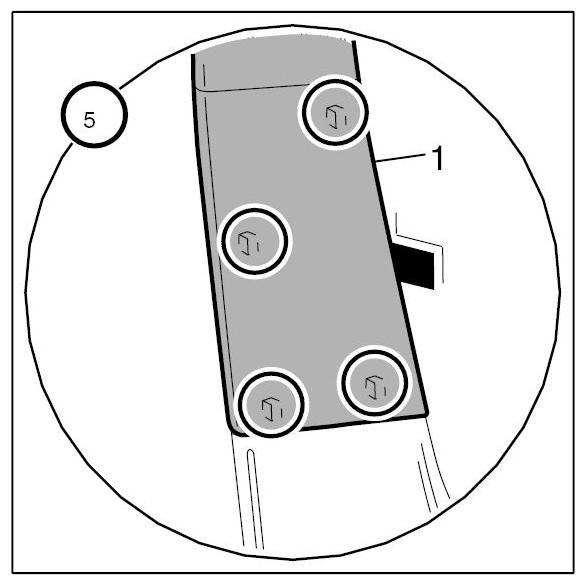

1. 5.1. Clip B-pillar trim -1- into interior B-pillar at the bottom at the marked areas.

  Fig 8: Identifying B-Pillar Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook B-pillar trim into place at rear.

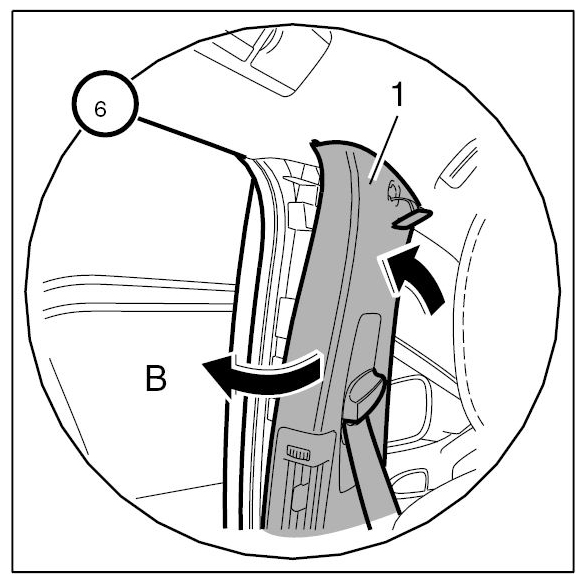

1. 6.1. Hook trim for B-pillar -1- into place at rear edge (-arrow B- ).
2. 6.2. Hook release for seat belt height adjustment into place. → Installing B-Pillar Trim Panel

  Fig 9: Removing B-Pillar Trim Into Place
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook B-pillar trim into place at front.

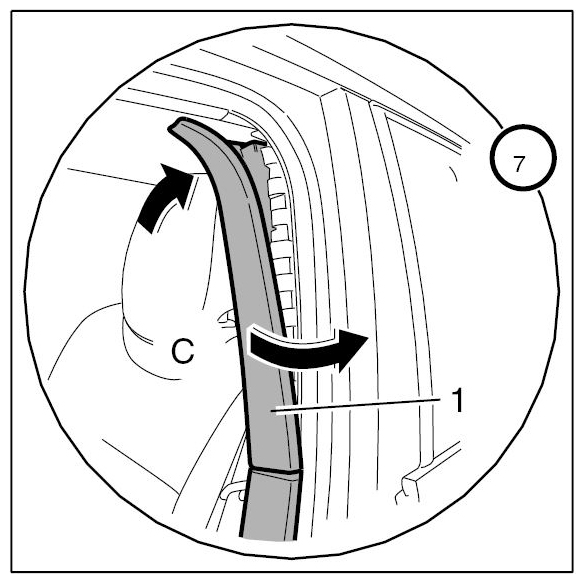

1. 7.1. Hook B-pillar trim -1- into place on deformation element (-arrows C- ).
2. 7.2. Check entire B-pillar trim once more to ensure correct installation and adjust if necessary.

  Fig 10: Installing B-Pillar Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw.

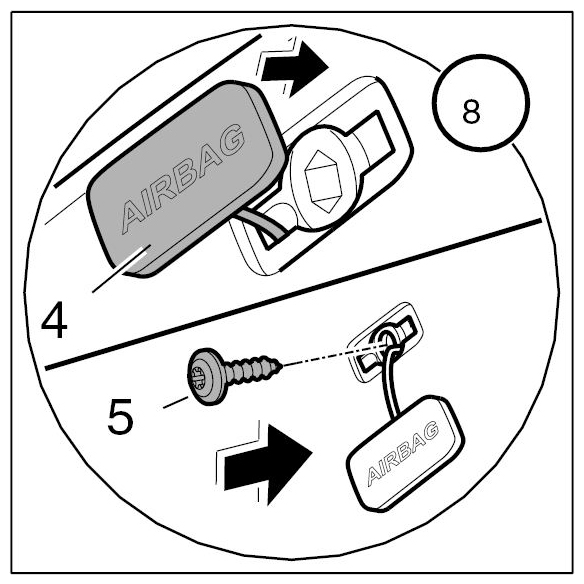

1. 8.1. Screw in fastening screw -5- and tighten to the specified tightening torque. → Tightening torque: 4 Nm (3 ft lbs.)+/- 0.5 Nm (+/-0.5 ft lbs.)
2. 8.2. Clip cap -4- into the cut-out for the B-pillar trim.

  Fig 11: Clipping Cap Into Cut-Out For B-Pillar Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

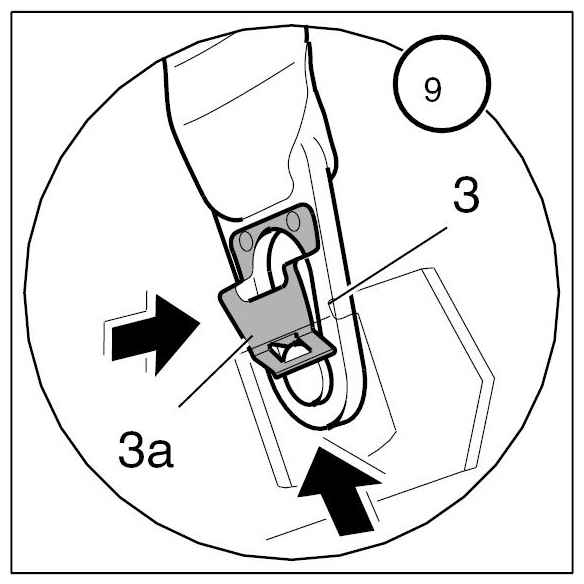

Engage seat belt mount at bottom.
1. 9.1. Engage seat belt mount -3- and pull upwards. Spring clamp -3a- engages independently and locks seat belt mount.
2. 9.2. Check that seat belt mount has engaged properly and repeat assembly process if necessary.

  Fig 12: Engaging Seat Belt Mount At Bottom
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

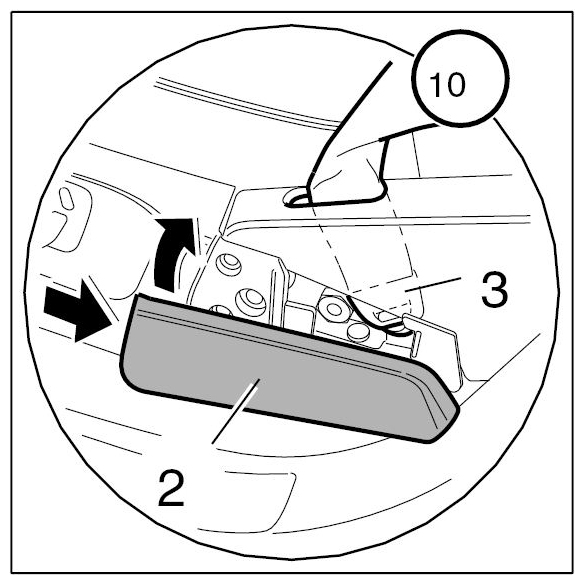

Install bottom seat belt mount cover.
1. 10.1. Position cover of seat belt mount -2- on seat and clip into place.

  Fig 13: Installing Bottom Seat Belt Mount Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
