Installing Release For Height Adjustment Of Seat Belt

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

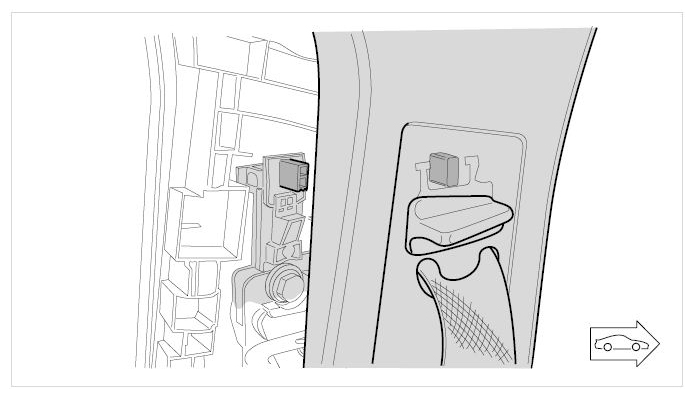

Fig 1: Identifying Height Adjustment Of Seat Belt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move actuator for seat belt height adjustment and adjustment fitting into assembly position.
1. 1.1. Push actuator for seat belt height adjustment -1- into upper end position.
2. 1.2. Move adjustment fitting at B-pillar -4- into upper end position.

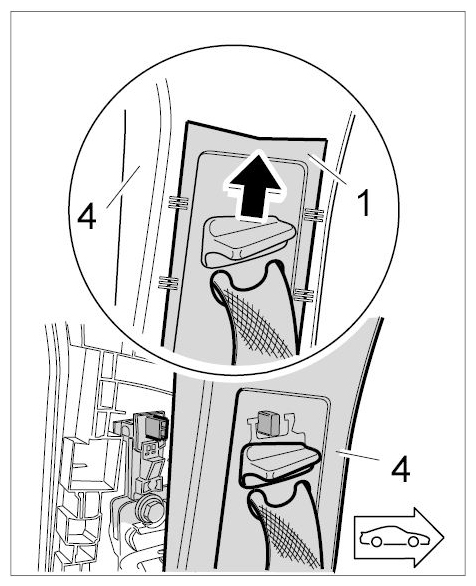

  Fig 2: Moving Actuator For Seat Belt Height Adjustment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Assembly instructions for seat belt height adjustment
  - The operating knob of the seat belt height adjustment must not be pressed during this installation step.
  - The seat belt must not be restricted by cable, lines, insulation, etc.
Connect actuator for seat belt height adjustment with adjustment fitting.
1. 2.1. Insert guide bush -2- into guide pin -3- on adjustment fitting and lay trim panel -4- against B-pillar.

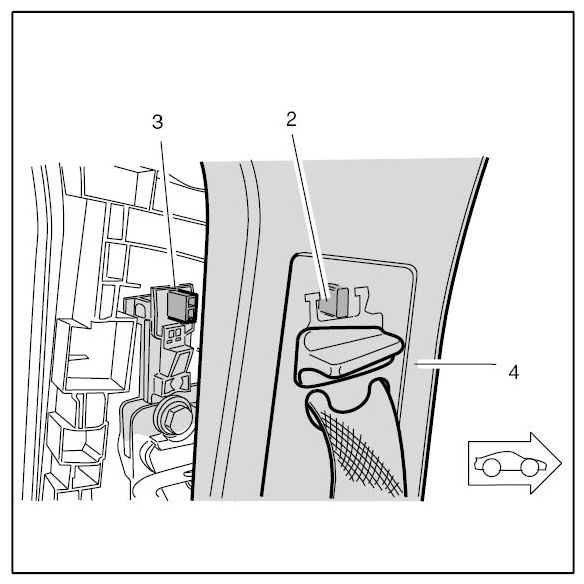

  Fig 3: Identifying Guide Bush, Guide Pin And Lay Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

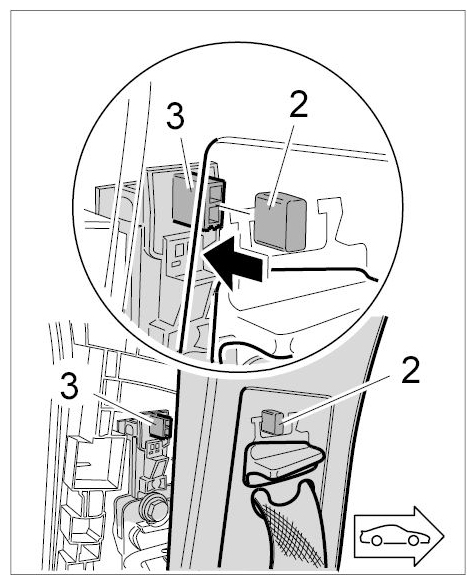

  Fig 4: Inserting Guide Bush, Guide Pin And Lay Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check operation.
1. 3.1. Check function of seat belt height adjustment by actuating it several times. The seat belt height adjuster must engage into place in one of 5 possible positions (including the uppermost).
2. 3.2. The operating knob of the seat belt height adjustment must automatically return to the upper position after each operation.
3. 3.3. The seat belt height adjuster must remain in the locked position when pulled abruptly.
4. 3.4. The sash guide must level out on its own in a vertical position or in the direction in which it is worn.
