Removing Inner Door Handle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

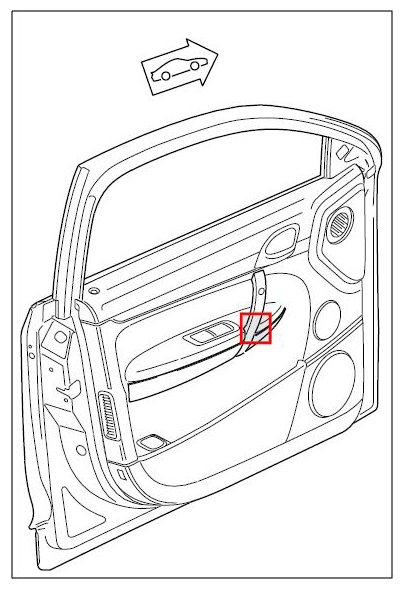

Fig 1: Identifying Inner Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The diagram and work procedure are displayed on the handle of the front door. This also applies to the handle on the rear door.

Unclip cover on handle.
1. 1.1. Carefully lever out cover -1- on handle using a plastic wedge and remove it (-arrow A- ).

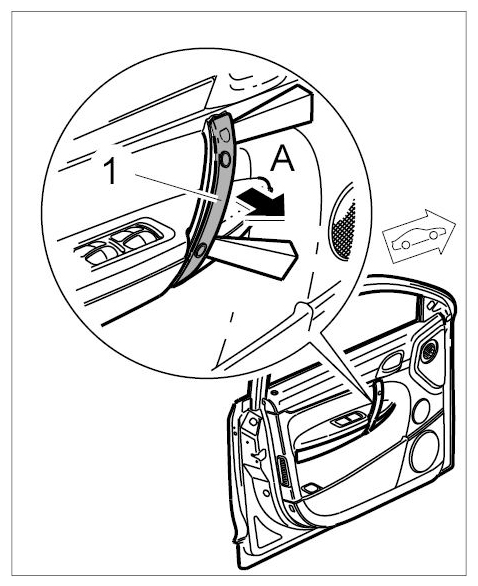

  Fig 2: Removing Cover On Handle Using Plastic Wedge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover at armrest.
1. 2.1. Carefully lever out cover -2- for armrest using a plastic wedge and remove it (-arrow B- ).

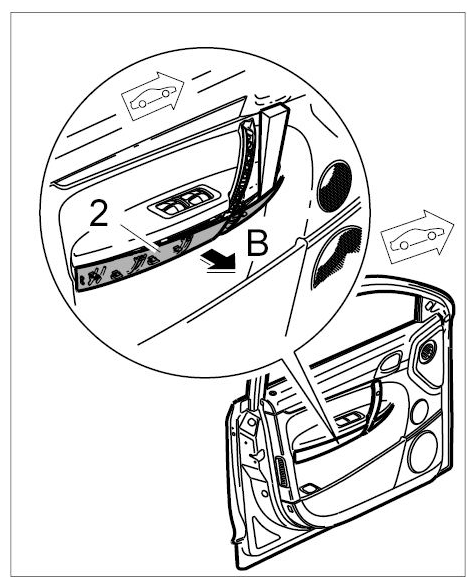

  Fig 3: Removing Cover For Armrest Using Plastic Wedge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove handle.
1. 3.1. Undo fastening screws -4, 5- .
2. 3.2. Take off handle -3- (-Arrow C- ).

  Fig 4: Removing Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
