Installing Inner Door Handle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

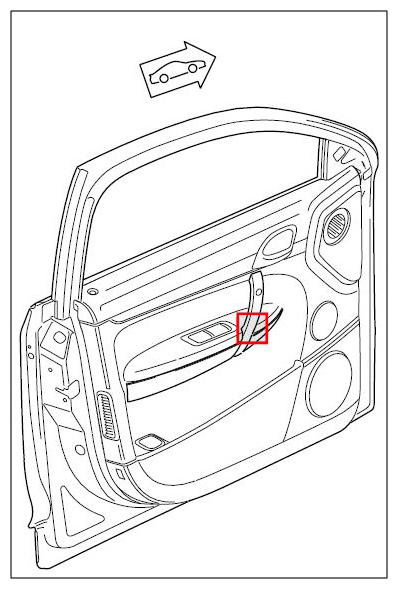

Fig 1: Identifying Inner Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

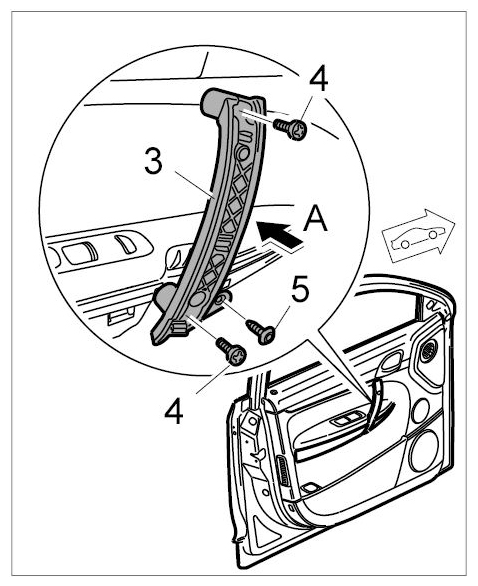

Install handle.
1. 1.1. Insert handle -3- (-Arrow A- ).
2. 1.2. Screw in fastening screws -4, 5- and tighten the screws -4- to the specified tightening torque. → Tightening torque: 4 Nm (3 ft lbs.)+/-0.5 Nm (+/-0.5 ft lbs.)

  Fig 2: Inserting Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

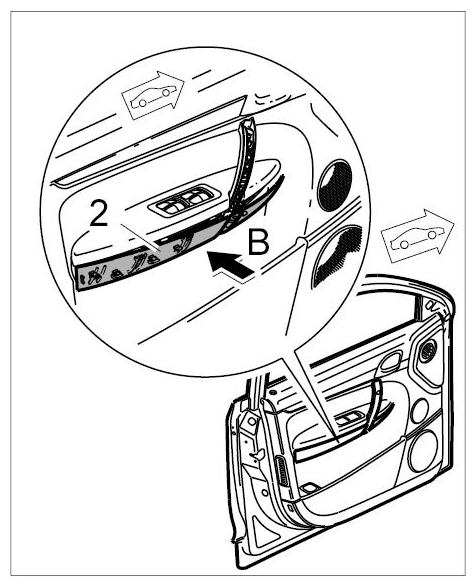

Clip cover onto armrest.
1. 2.1. Position cover -2- on the armrest and clip it in (-arrow B- ).

  Fig 3: Positioning Cover On Armrest And Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

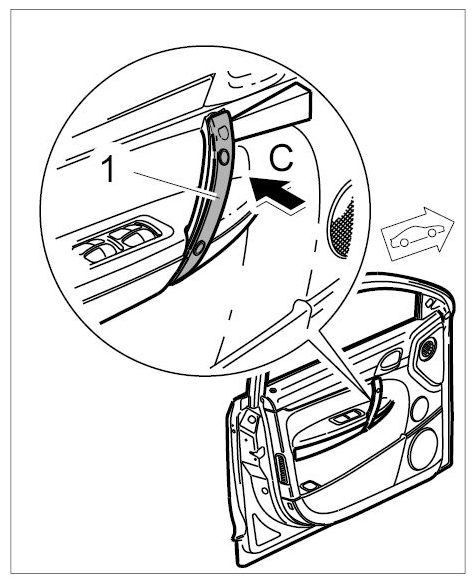

Clip in cover at handle.
1. 3.1. Position the cover -1- on handle and clip into place (-arrow C- ).

  Fig 4: Positioning Cover On Handle And Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
