Installing Cover Under Dashboard On The Driver's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

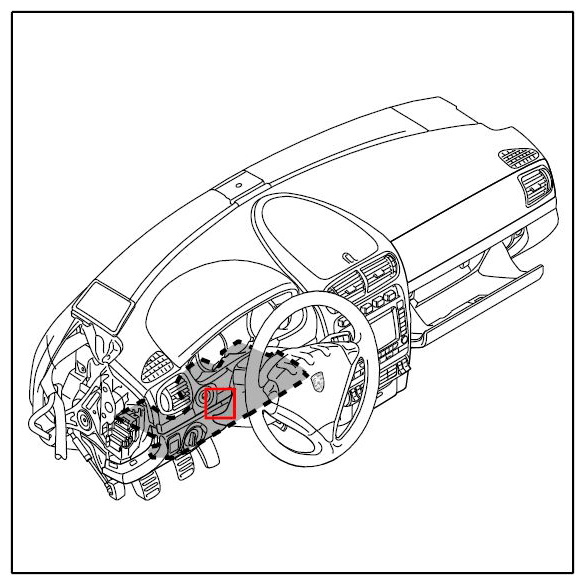

Fig 1: Identifying Cover Under Dashboard On Driver's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert cover under dashboard on the driver's side
1. 1.1. Insert cover under the dashboard on the driver's side -1- into the guides -6- -arrows A- .

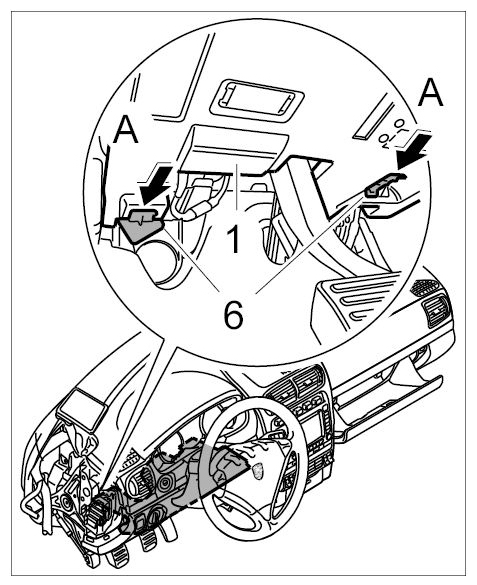

  Fig 2: Inserting Cover Under Dashboard On Driver's Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug.
1. 2.1. Push on the plug -4, 5- until the locking tabs engage audibly.

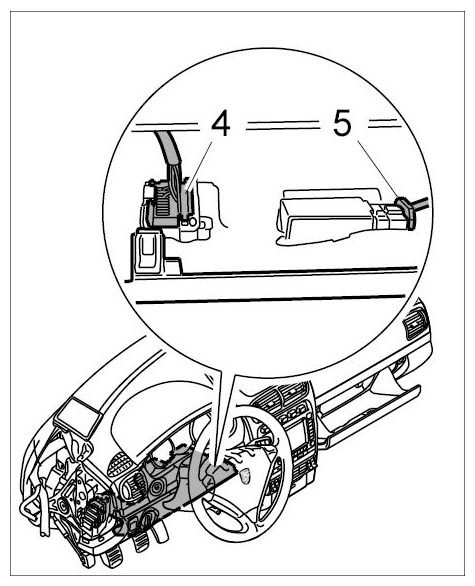

  Fig 3: Pushing On Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover under dashboard on the driver's side.
1. 3.1. Press the cover under the dashboard on the driver's side -1- upwards until the fastening clips -3- can be heard to engage -arrow B- .
2. 3.2. Screw in fastening screw -2- .

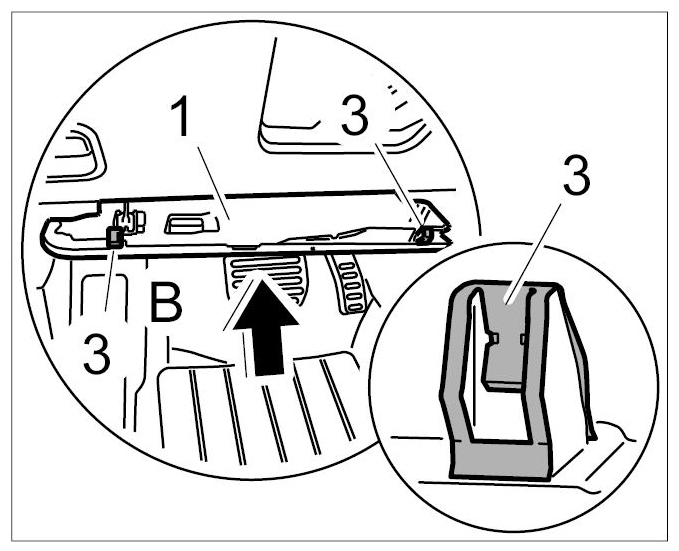

  Fig 4: Pressing Cover Under Dashboard On Driver's Side (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

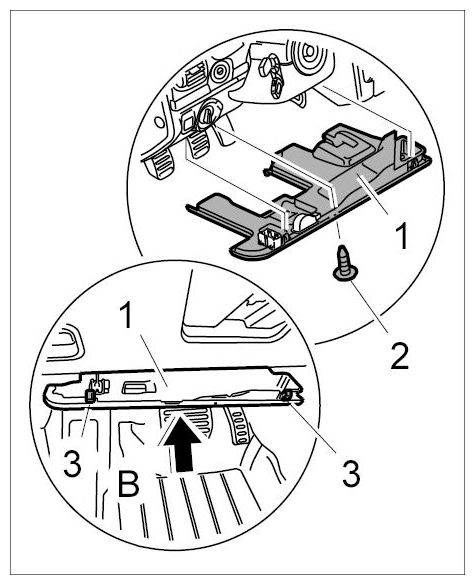

  Fig 5: Pressing Cover Under Dashboard On Driver's Side (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
