Removing Dashboard Cover (Defroster Cover)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

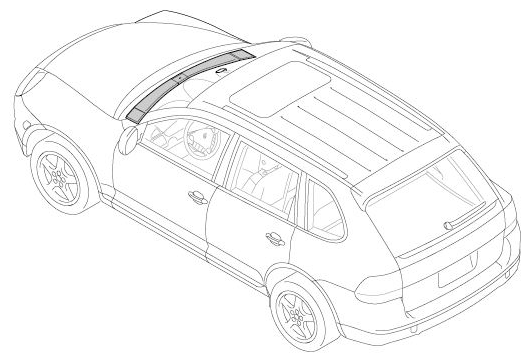

Fig 1: Identifying Dashboard Cover (Defroster Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

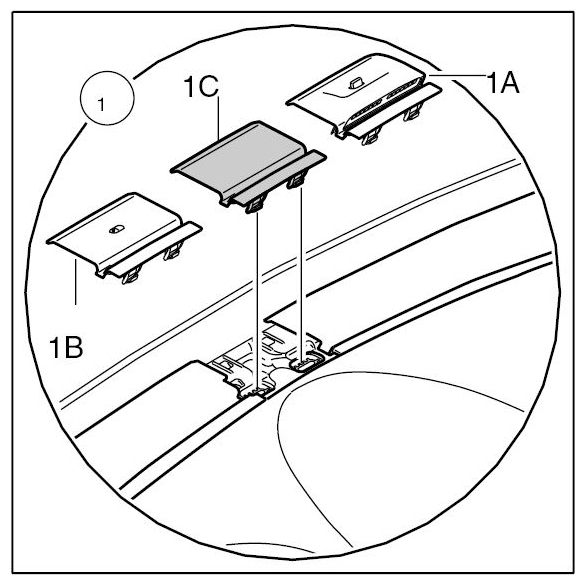

The figure → Fig 2 shows the centre cover -1A- , the centre cover with sun sensor -1B- and the centre cover with ParkAssist -1C- .

Fig 2: Identifying Centre Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

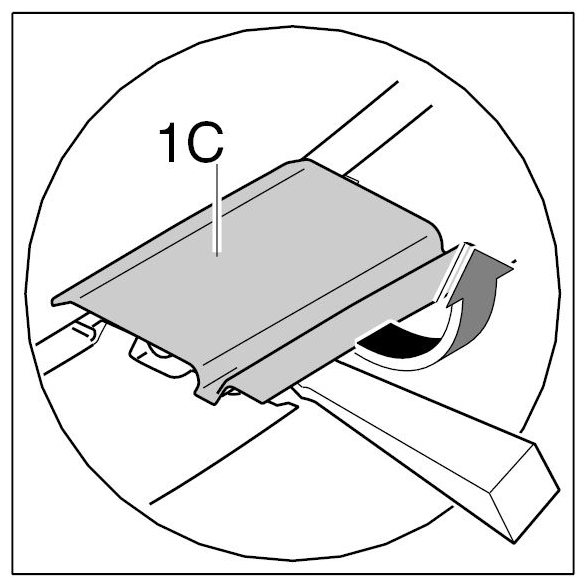

To unclip the centre cover, insert a plastic wedge under the centre cover -1A, 1B or 1C- and lever it up and out → see Fig 3.

Fig 3: Inserting Plastic Wedge Under Centre Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
In the case of vehicles with sun sensor or ParkAssist, disconnect the electric plug connection.

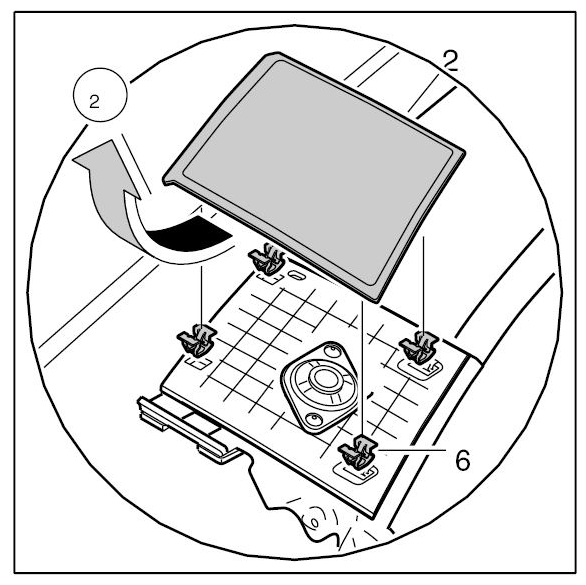

Insert plastic wedge under loudspeaker trim panel on the left and right -2- and lever it up and out.

Fig 4: Inserting Plastic Wedge Under Loudspeaker Trim Panel On Left And Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

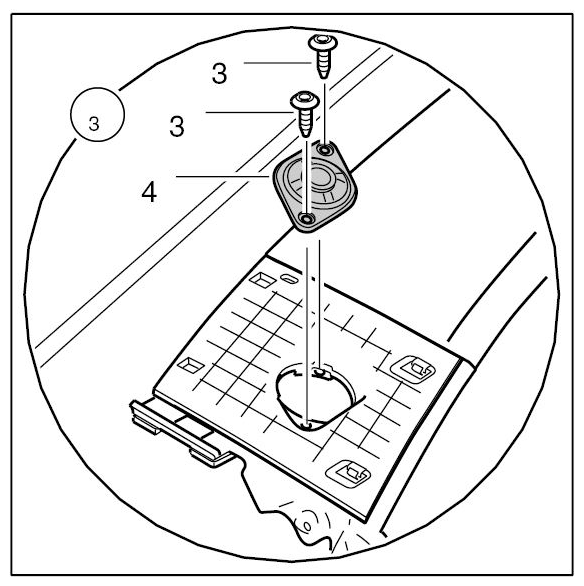

Unscrew the loudspeaker fastening screws -3-

Fig 5: Identifying Loudspeaker Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the loudspeaker -4- .

Fig 6: Identifying Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection.

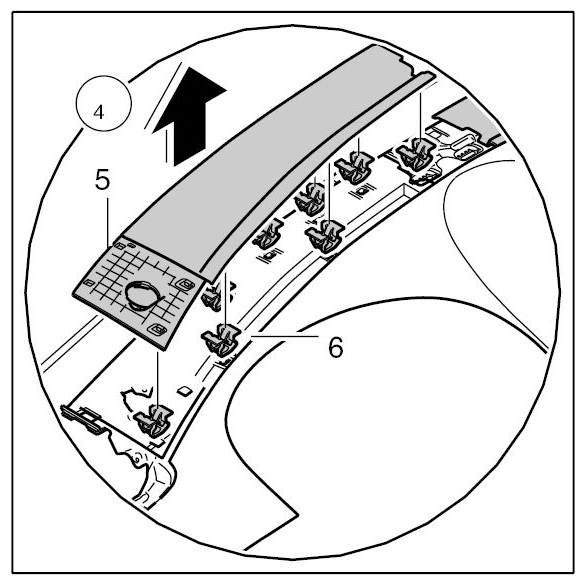

Remove dashboard cover (defroster cover). To do this, insert a plastic wedge under the dashboard cover (defroster cover) on the left and right -5- and lever it up and out.

Fig 7: Removing Dashboard Cover (Defroster Cover) On Left And Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
