Installing Dashboard Cover (Defroster Cover)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

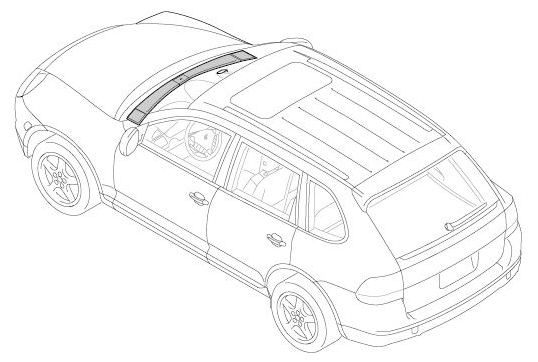

Fig 1: Identifying Dashboard Cover (Defroster Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

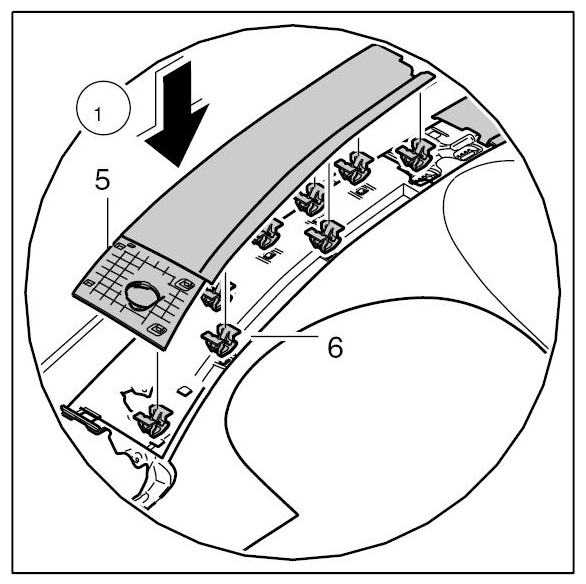

Check sheetmetal clips -6- for deformation; replace if necessary.

Fig 2: Installing Dashboard Cover (Defroster Cover)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip cover for dashboard (defroster cover) into place on left and right.
Plug in electric plug connection of loudspeaker.

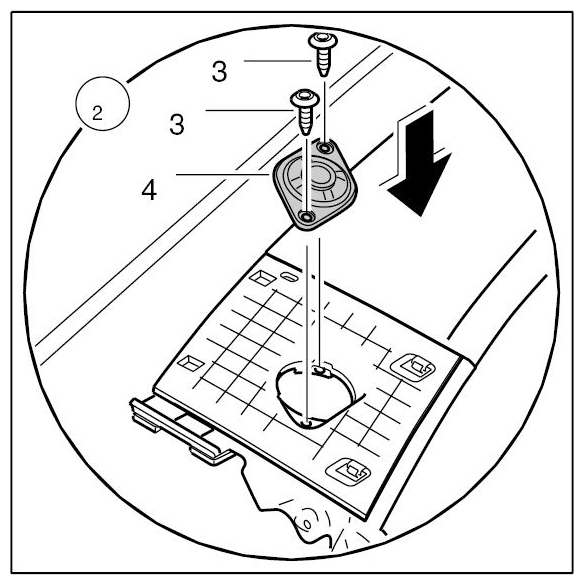

Insert loudspeaker -4- .

Fig 3: Inserting Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -3- .

Fig 4: Inserting Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

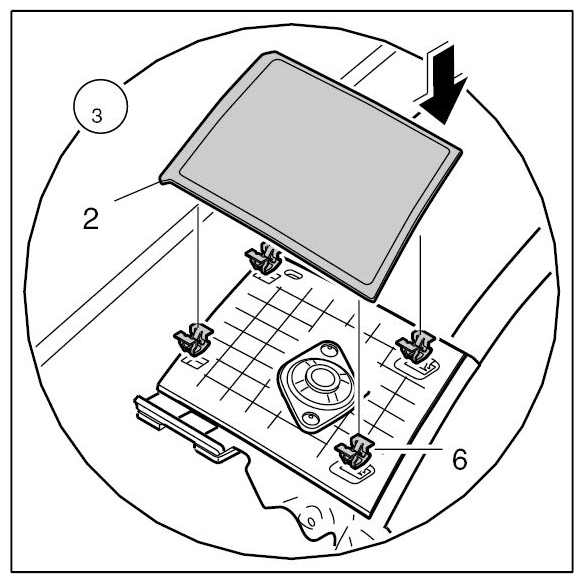

Clip loudspeaker trim panel -2- into place on left and right.

Fig 5: Installing Loudspeaker Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

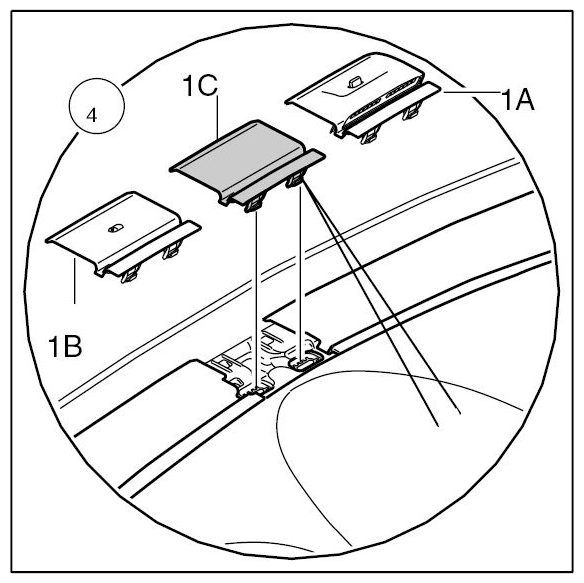

In the case of vehicles with sun sensor -1B- or ParkAssist -1A- , connect the electric plug connection.

Fig 6: Identifying Center Cover, Sun Sensor And Parkassist
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position and clip in the centre cover -1A, 1B or 1C- .
