Installing Trim Under Dashboard On The Driver's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

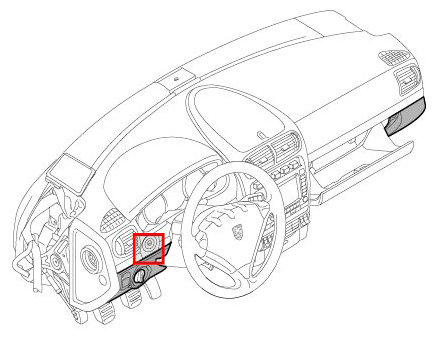

Fig 1: Identifying Trim Under Dashboard On Driver's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the trim panel under the dashboard on the driver's side.

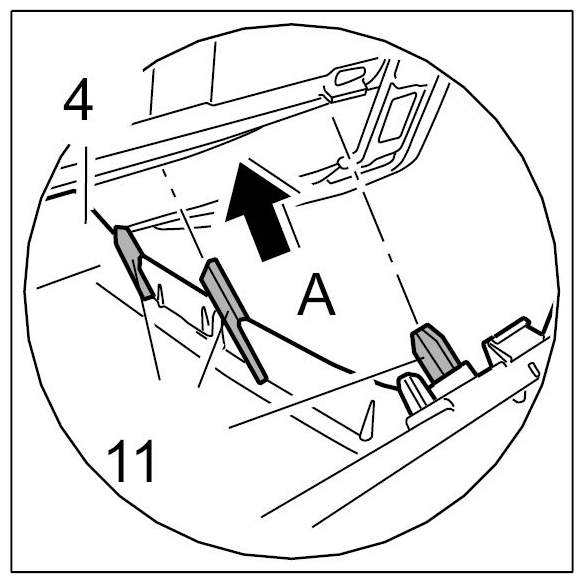

1. 1.1. Insert trim under the dashboard on the driver's side -4- into the guides -11- -arrow A- .

  Fig 2: Inserting Trim Under Dashboard On Driver's Side (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Inserting Trim Under Dashboard On Driver's Side (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in the bowden cable for the parking brake release.

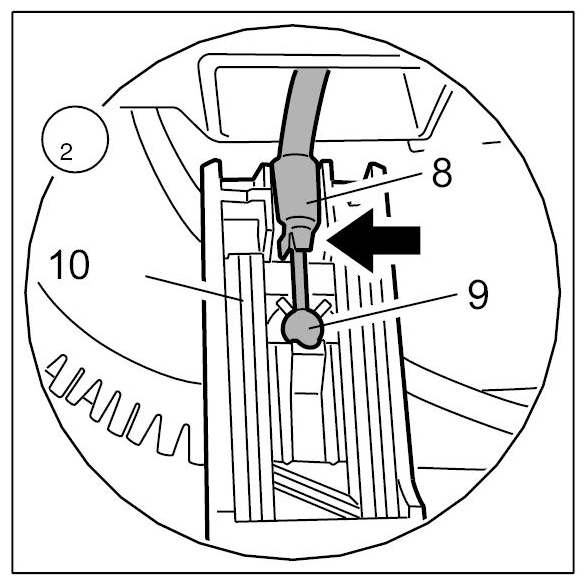

1. 2.1. Clip the ball joint -9- and sleeve -8- of the bowden cable into the release lever -10- until they engage audibly. Make sure that the fastening clip -arrow- of the sleeve -8- is not damaged.

  Fig 4: Locating Ball Joint And Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

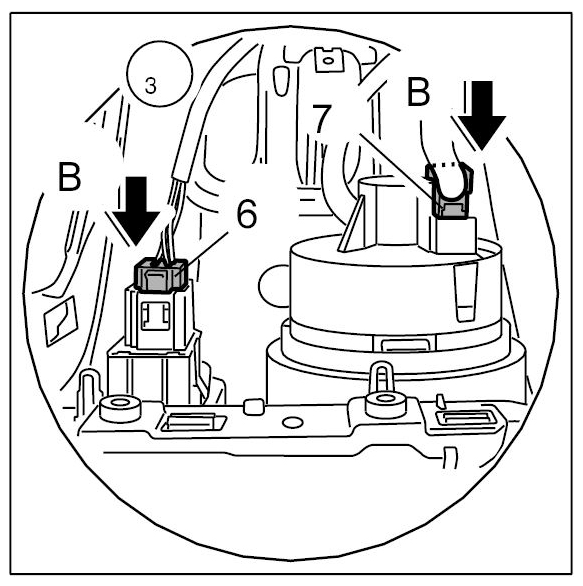

Push on the plug -6 and 7- until the locking tabs engage audibly -arrows B- .

Fig 5: Pushing On Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim under dashboard on the driver's side.

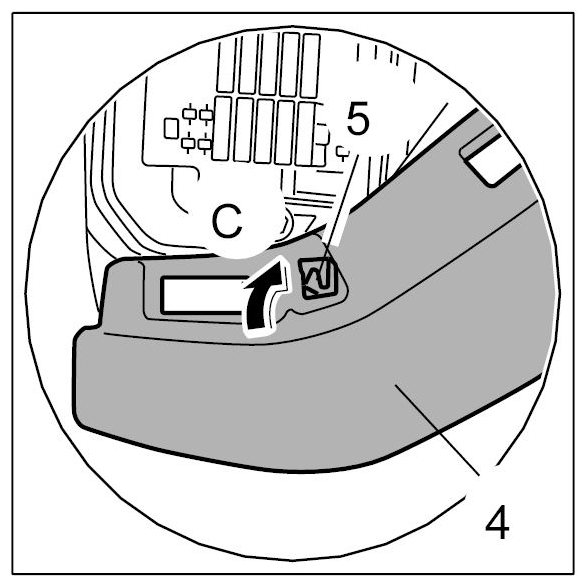

1. 4.1. Insert trim under the dashboard on the driver's side -4- over the guide -5- -arrow C- .

  Fig 6: Installing Trim Under Dashboard On Driver's Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

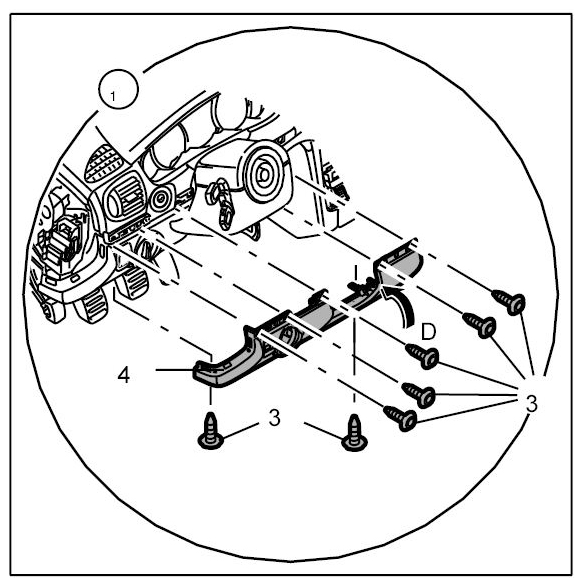

2. 4.2. Swivel the trim under the dashboard on the driver's side -4- upwards -arrow D- .

  Fig 7: Swiveling Trim Under Dashboard On Driver's Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Screw in -3- fastening screws.

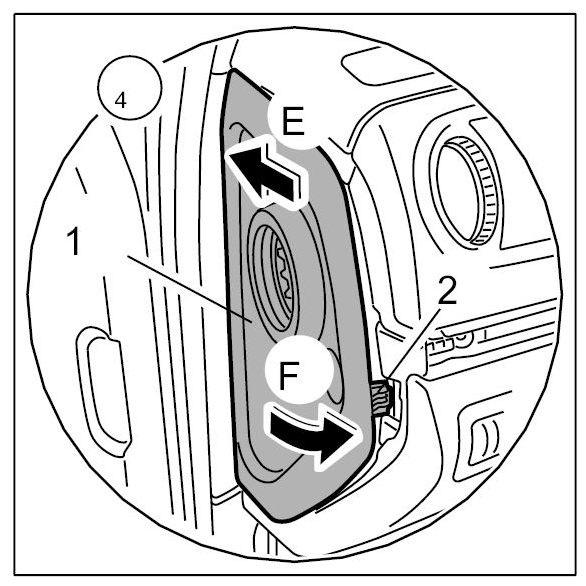

  Fig 8: Inserting Fuse Box Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install fuse box cover.
1. 5.1. Insert front fuse box cover -1- (-arrow E- ).
2. 5.2. Swivel fuse box cover -1- inward and push it in -arrow F- until the retaining clips -2- engage audibly.

  Fig 9: Identifying Cover Under Instrument Panel On Passenger's Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover under dashboard on driver's side. → Installing Cover Under Dashboard
Install dashboard moulding on driver's side. → Installing Trim Strips For Dashboard On The Driver's Side
