Installing Dashboard Cover On The Driver's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

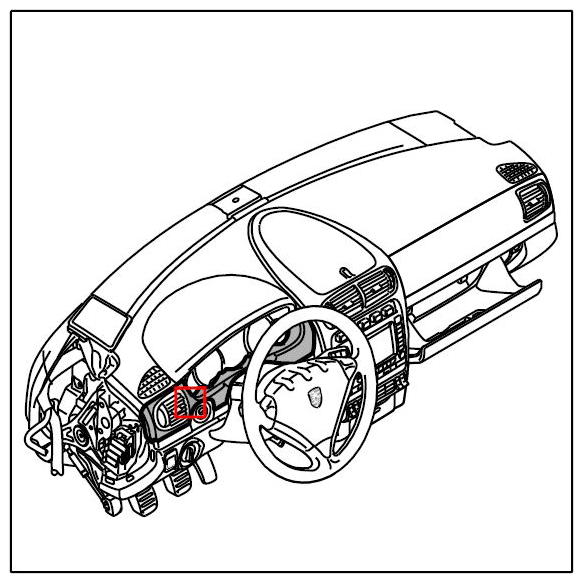

Fig 1: Identifying Dashboard Cover On Driver's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

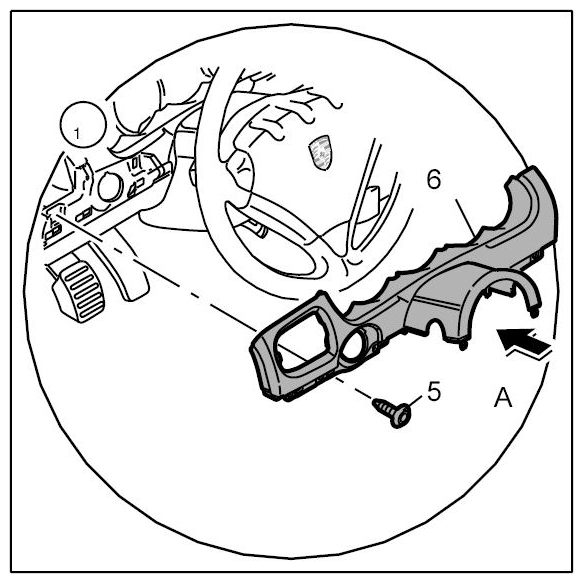

Insert the cover for the instrument panel on the driver's side -6- together with the top section of the steering column trim -arrow A- .

Fig 2: Inserting Cover For Instrument Panel On Driver's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw -5- .

Fig 3: Tightening Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install top section of steering column trim. To do this, insert top section of steering column trim -4- into the holding strap at the front.

Fig 4: Installing Top Section Of Steering Column Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

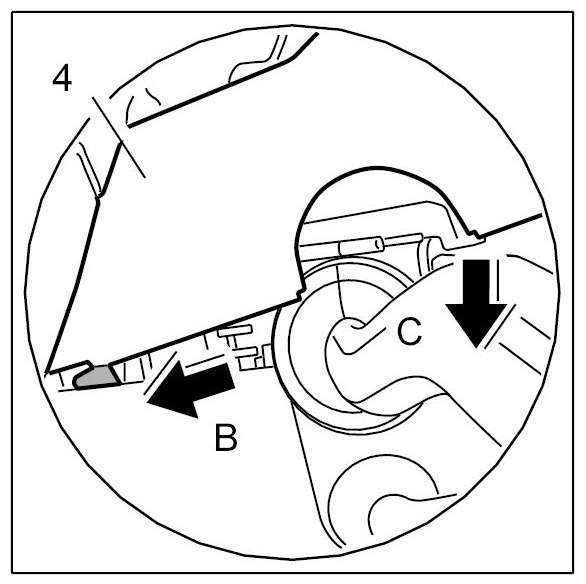

Push top section of the steering column trim -4- down at the rear -arrow C- until the holding straps -3- engage audibly.

Fig 5: Pushing Top Section Of Steering Column Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

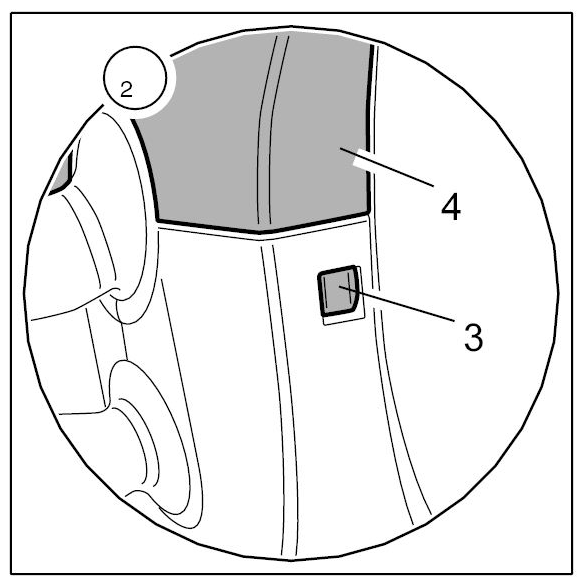

Fig 6: Identifying Steering Column Trim And Holding Straps (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

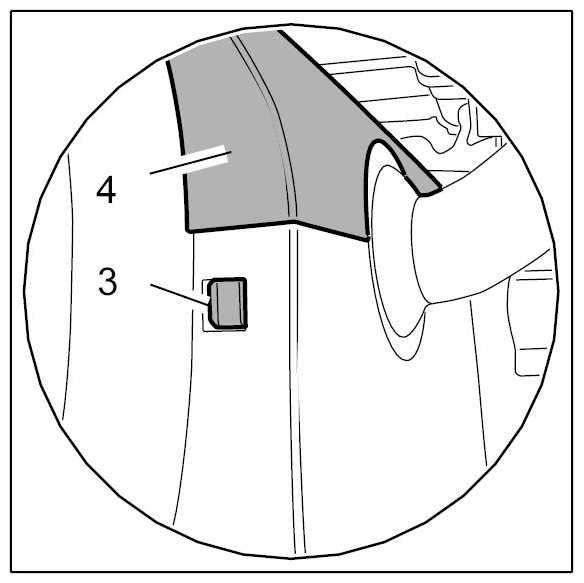

Fig 7: Identifying Steering Column Trim And Holding Straps (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust the steering column forward and upward.

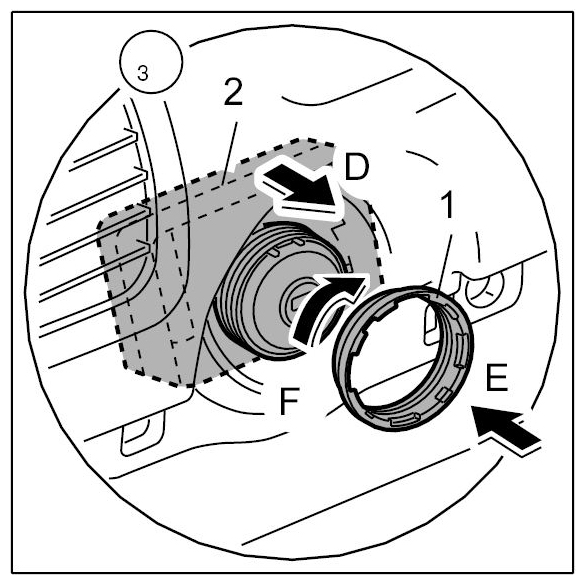

Install ignition switch. To do this, push the ignition switch -2- from the rear through to the front -arrow D- .

Fig 8: Installing Ignition Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Put on union nut -1- -arrow E- and screw it in using the appropriate special tool -arrow F- .

Fig 9: Putting On Union Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install air vent for door window → Installing Air Vent At Door .
Install trim panel under dashboard on the driver's side → Installing Trim Panel Under Dashboard
Install dashboard moulding on the driver's side.
