Installing Cover For Seat Connection

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

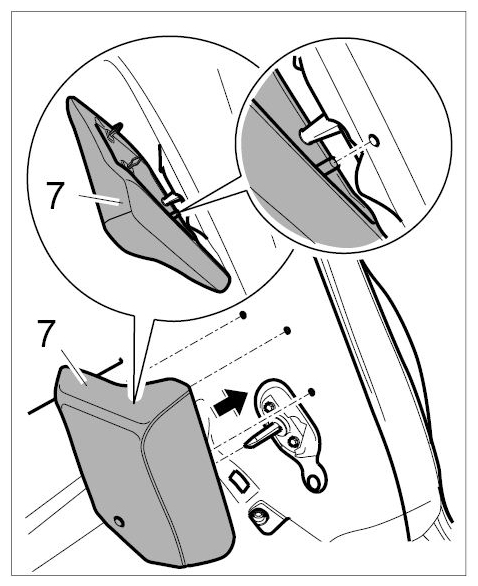

Fig 1: Installing Cover For Seat Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check fixing clips
1. 1.1. Check fixing clips -10- of luggage compartment side trim panel for deformation and replace if necessary.

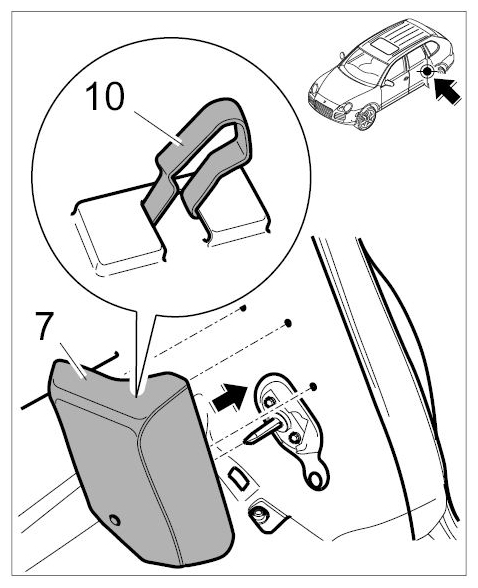

  Fig 2: Checking Fixing Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover for seat connection -7- .

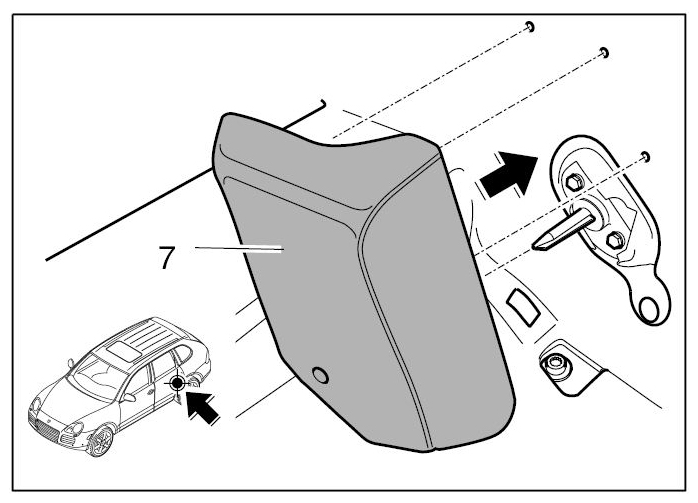

Fig 3: Clipping Cover For Seat Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Only on vehicles with first generation bearing sleeves.
Fit lock washer.
1. 3.1. Fit lock washer -9- .

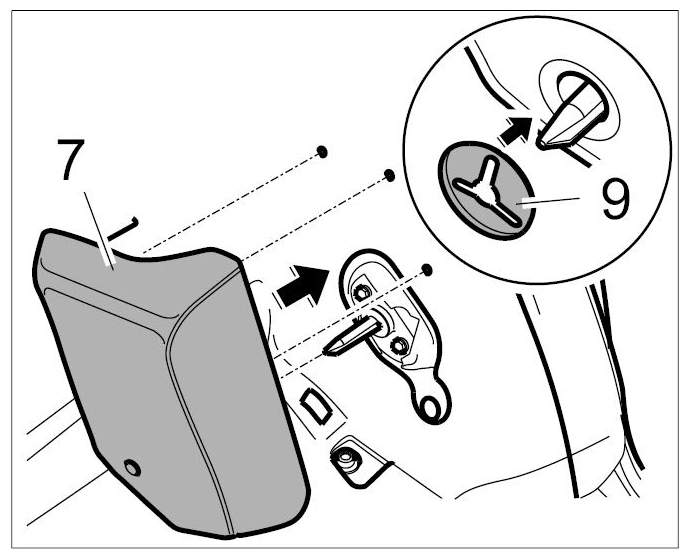

  Fig 4: Fitting Lock Washer
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
