Removing Engine Mounting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine mounting (hydraulic mount).
    1. 1.1. Loosen the hexagon nut -A-  .

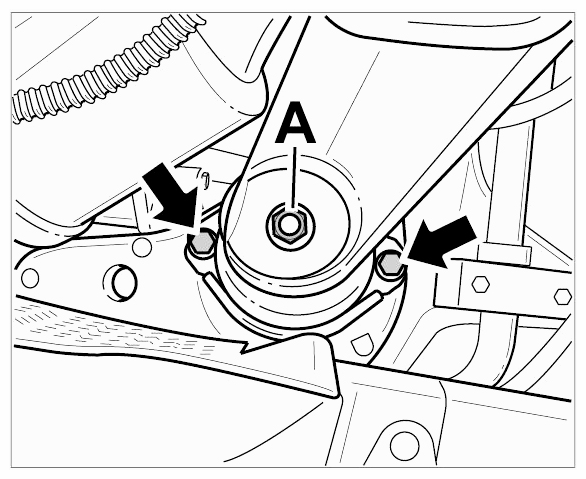

      Fig 1: Locating Engine Mounting
      G09408933Courtesy of PORSCHE CARS NORTH AMERICA, INC.
