Installing Engine Mounting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The engine mounts must be aligned using the engine carrier.
The engine mounts differ (left/right) and must not be interchanged.

Install engine mounting.

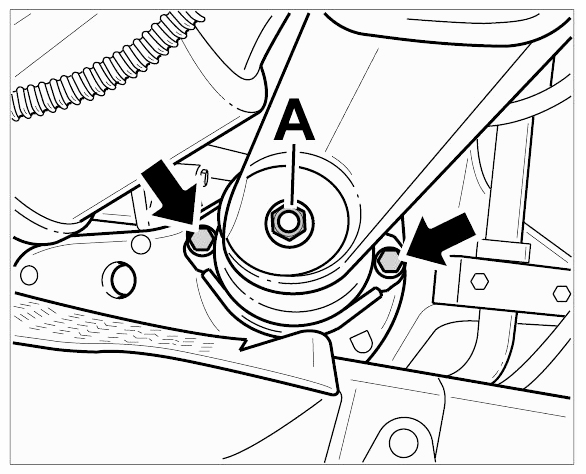

Fig 1: Locating Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. The dowel pin of the engine mounting must sit correctly into the cut-out on the engine carrier.
2. 1.2. Fit fastening screws -arrows- but do not tighten yet.
3. 1.3. Always replace the hexagon nut and tighten to → Tightening torque: 75 Nm (56 ft lbs.). Fit the engine carrier to prevent the bearing from turning.
